Arc audio

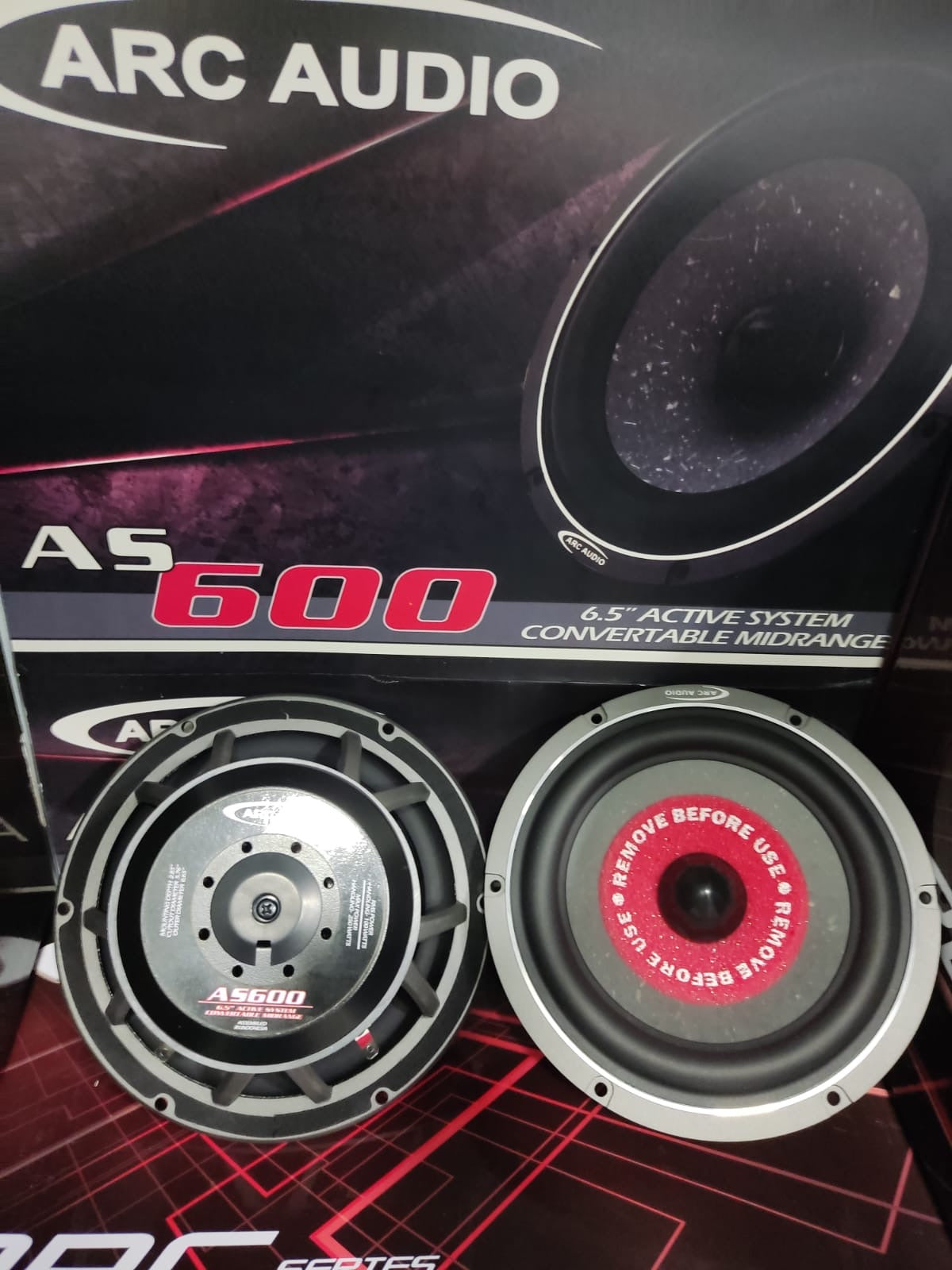

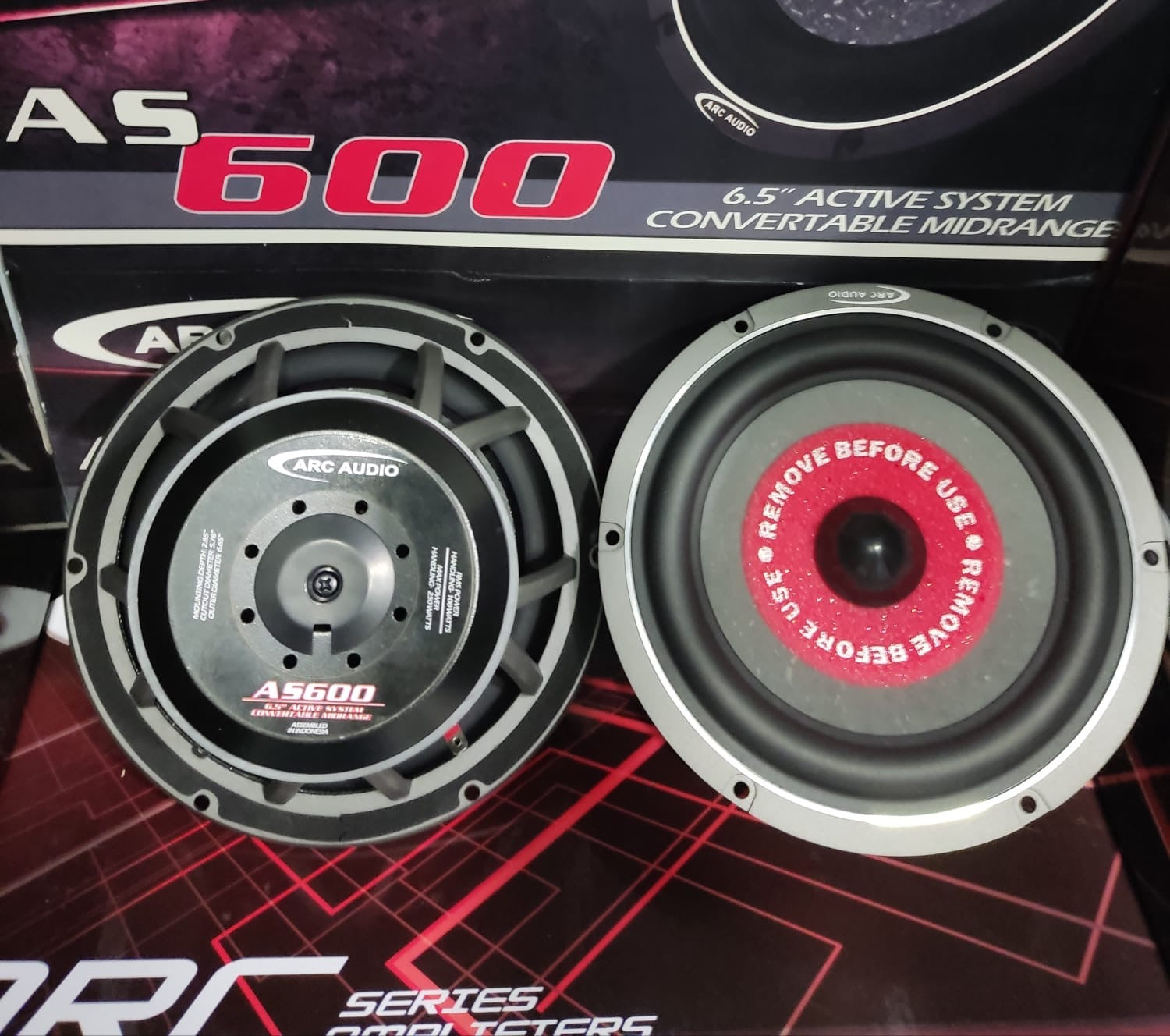

Arc audio as600
Arc audio as600
Regular price
1,499.00 ₪
Regular price
Sale price
1,499.00 ₪
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Speaker Size | 6.5” |
| Speaker type | Midrange |
| Power handling (Peak) | 250 Watts |
| Power handling (RMS) | 100 Watts |
| Frequency Response | 65Hz – 8.5kHz |
| Sensitivity | 90 dB |
| Impedance | 4 ohms |
| Basket Material | Cast aluminum |
| Housing Material | N/A |
| Cone material | Aramid, Coconut extracted pulp |
| Diaphragm material | N/A (selectable) |
| Surround material | Low shore rubber |
| Spider material | Progressive nomex |
| Motor structure | Y35 |
| Copper shorting ring | Yes |
| Voice coil/former | CCAW/Till |
| Mounting depth | 2.85” |
| Cutout diameter | 5.76” |
| Convertible design | N/A |
| Grills | Not included |
| T/S Parameters | ----- |
| FMS | 74.2 |
| Res | 8.1 |
| Re | 3.1 |
| QMS | 8.82 |
| QES | .79 |
| QTS | .73 |
| Rms | .7 kg/s |
| Cms | .33 mm/n |
| Mms | 13.8 kg/s |
| Nref | .28% |
| Bl | 5.1 |
| SPL | 90.1 |
| VAS | 5.6L |
| Rp | 26.4 ohms |
| LP | 8.4 mH |
| Cp | 929 uF |
| Le | 0.00 mh |
| SD | 109.4 cm2 |
