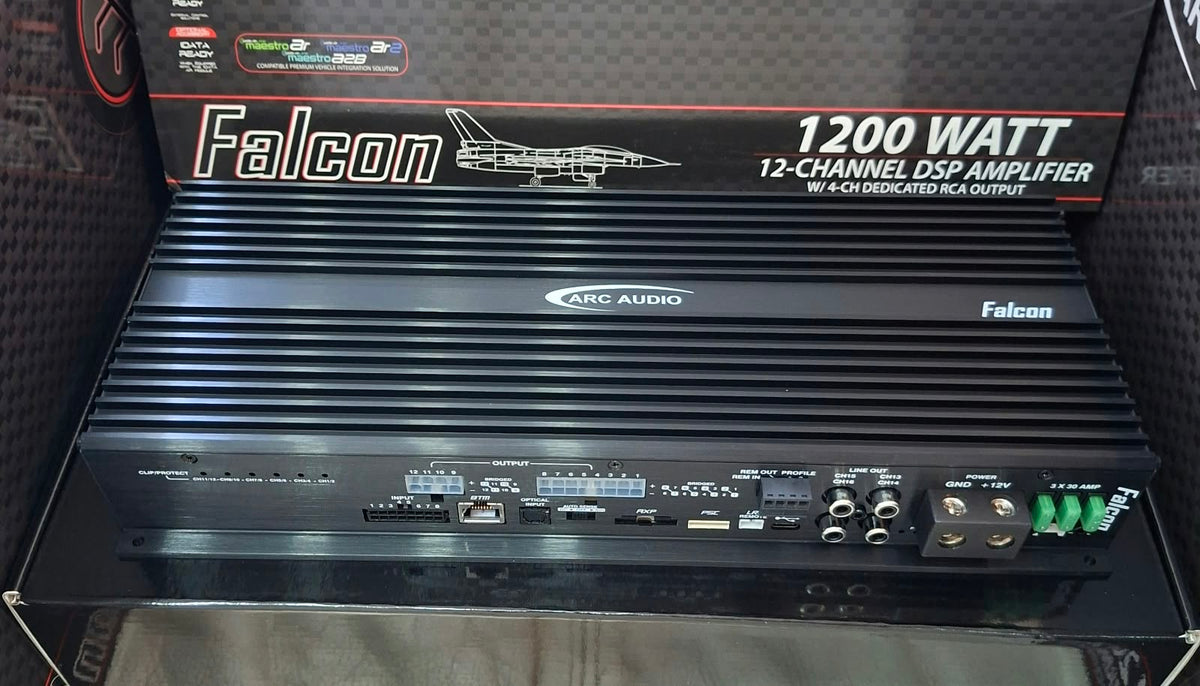

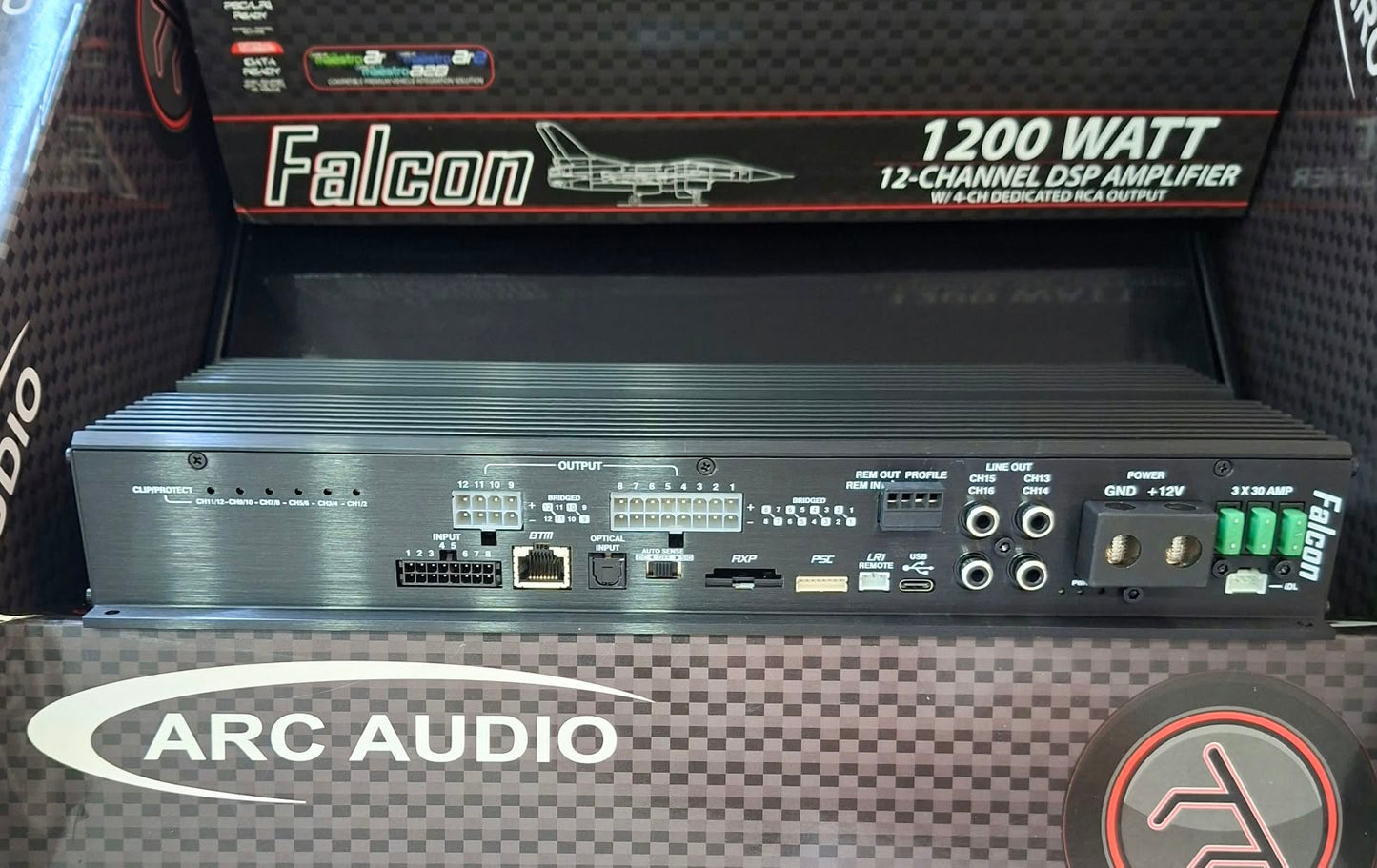

Arc Audio Falcon

Processor TypeIntegrated DSP AmplifierProcessor ResolutionFixed Point Native 32-BitMain DSP ProcessorAnalog Devices ADAU1462ADC (Analog to Digital Converter)(Dual) AKM Velvet Sound 5558BDAC (Digital to Analog Converter)(Dual) AKM Velvet Sound AK4438Total DSP Channels16RCA Channels Out4RCA Output VoltageUp to 8VTotal Amplified Output Channel12Stereo @ 4 Ohms12 x 75 WattsStereo @ 2 Ohms12 x 125 WattsBridgeable Speaker OutputsYesBridged @ 4 Ohms6 x 250 WattsBridged @ 2 Ohms(Not Recommended)Other Channels @ 4 OhmsN/AOther Channels @ 2 OhmsN/AFuse Rating3 x 30 AmpAmplifier Operating Voltage Range8.0V - 17.1VAdjustable Class-D Switching FrequencyYes - Via DNA User SoftwareBuilt-in Fan CooledYesInput Channels (Analog)8Input Channels (Analog Type)Balanced (RCA or Speaker Level)Input Sensitivity (Analog).5V - 32VInput Impedance (Analog)10k OhmsInput Gain Type"Dedicated" Selection by channel "Pairs" in input Mixer UtilityOptical InputToslink - YesDigital Coaxial InputYes - Requires D.O.C. AdapterMax Digital Input Sample Rate192kHzFrequency Response10Hz - 23.5kHzS/N Ratio 1V 1:1107.1dBS/N Ratio 4V 1:1108.4dBS/N DigitalTBDDSP Operating Voltage8V - 17.1 (Start Stop Compliant to 4.5V)Auto-Sense Turn-onYes - Signal & DC (BTL) (Uses Ch 1/2 Analog Inputs Only)User Defined PresetsUp to 4Preset Control Without PC Or ControllerYes - Optional Manual Trigger Switches +/- for up to 4 presets (Not Included)Compatible External Control (Optional)Yes - PSC & LR-2 (Sold Separately)Dual External Control Use (Optional)Yes - PSC & LR-2 (Simultaneously)AXP Wifi Control Adapter CardOptional accessory (Sold Separately)DSP Integrated On/Off Timing ControlTurn on Output (Up to 40ms), Turn on Hold (Up to 40ms), Auto-sense hold time (up to 200ms)External Amplifier Remote "Turn-on Output" On/Off Timing ControlRemote Turn on lead output adjustable from .05 - 40 secondsiDatalink Maestro Amplifier Replacement Interface CapableYes - Requires Vehicle compatible replacement module & T-Harness and ARC/iData signal harness adapteriDatalink Maestro Compatibility ListCheck compatibilityMulti-Processor System ExpandabilityYes - Requires each processor be connected with a full-time USB connection to a non-amplified USB hub. Also allows for full control of multiple DSPs with a single PC and GUIUSB Connection TypeUSB-CTuning Software InterfaceARC Audio DNA OnlyDNA Tuning Software Interface DownloadDownload hereDNA Software Tuning Features
