Arc audio

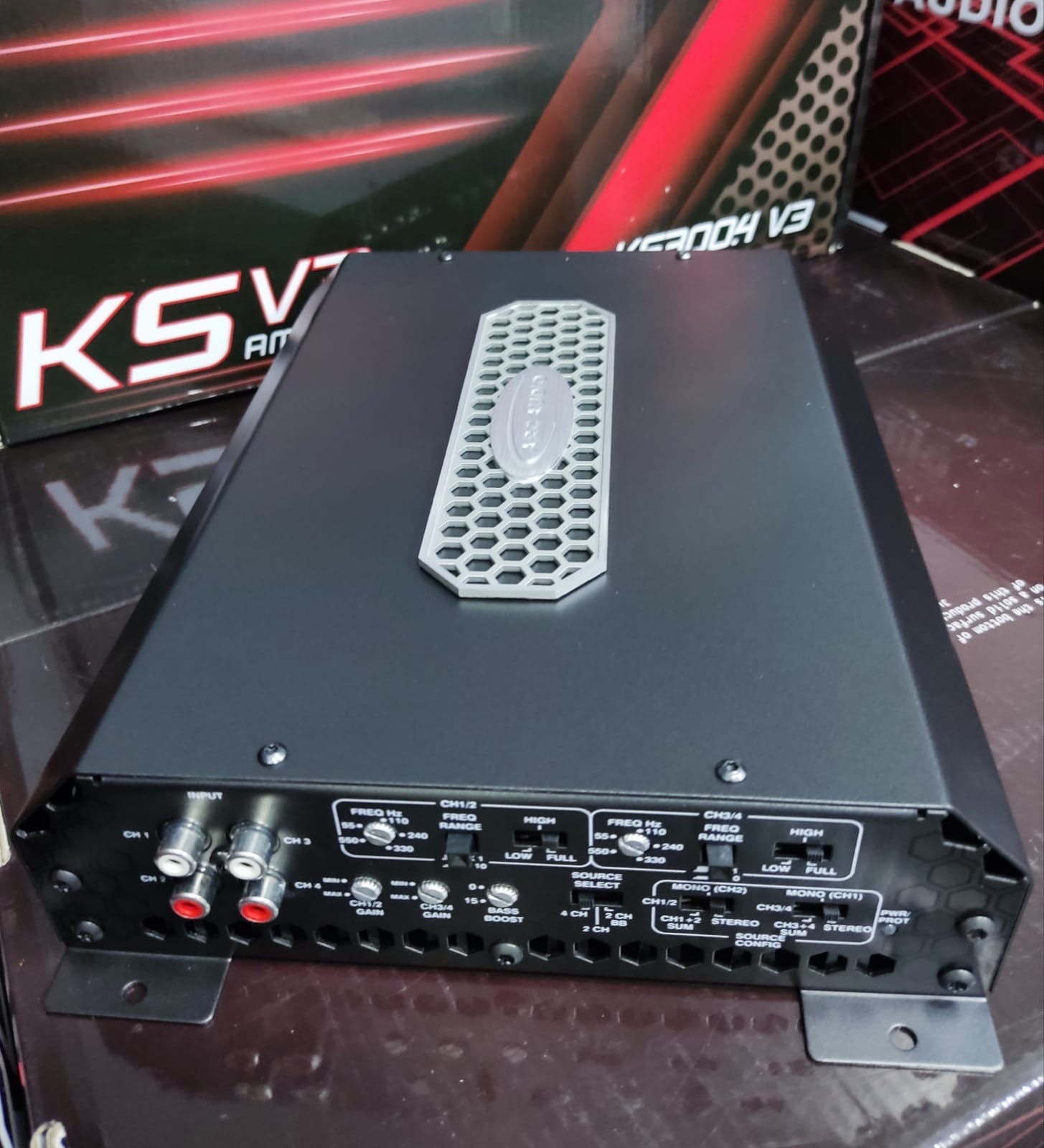

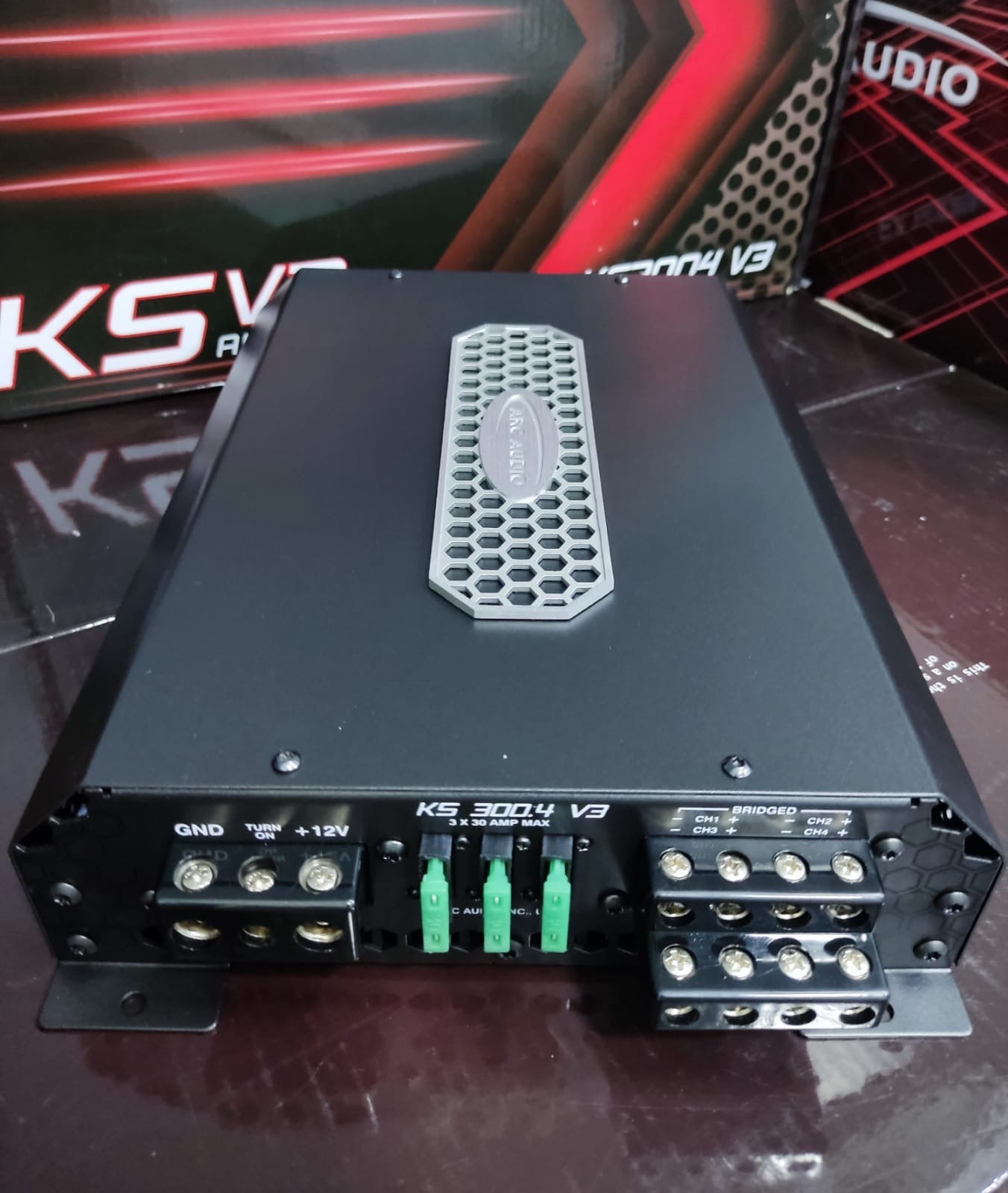

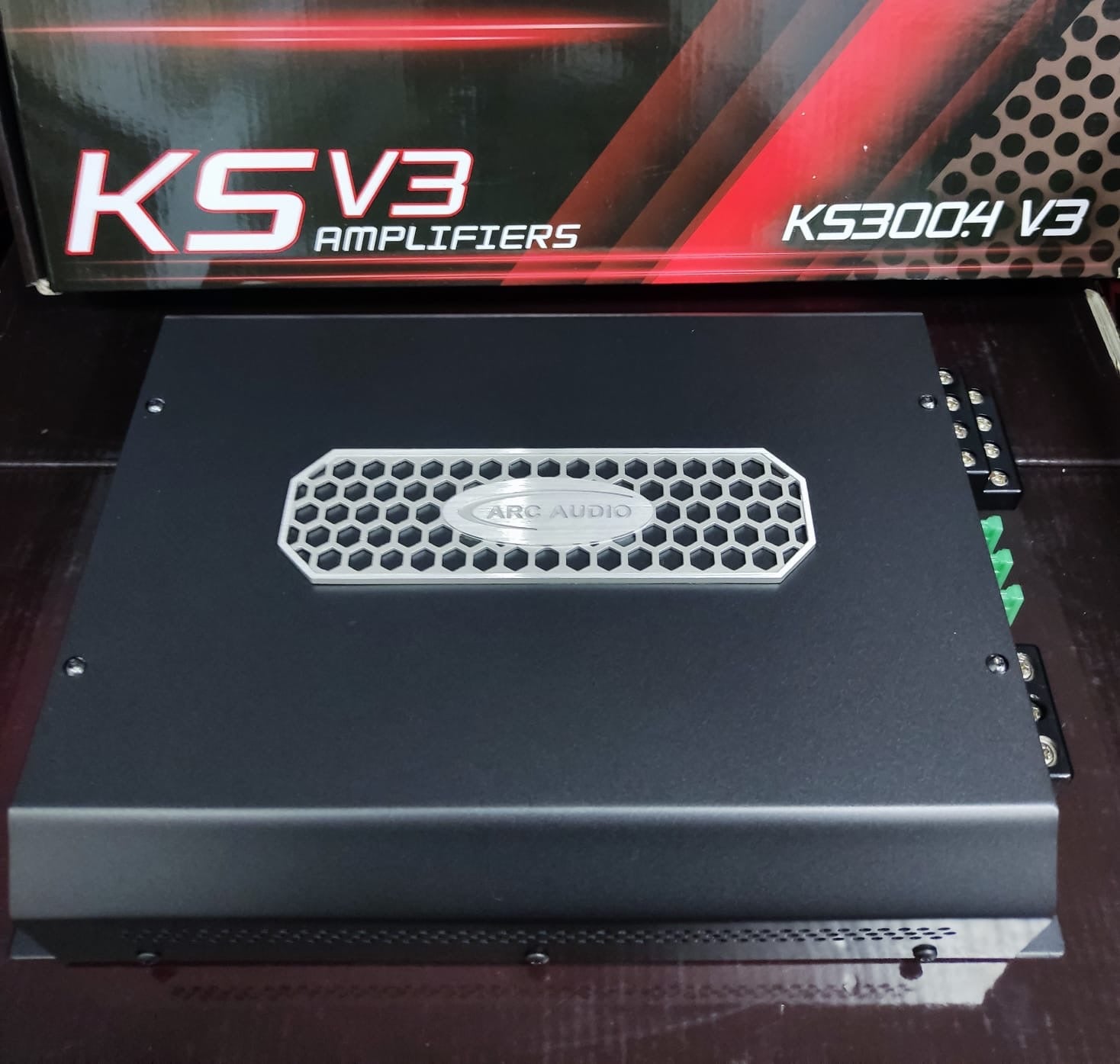

Arc audio ks 300.4 v3

Arc audio ks 300.4 v3

2,599.00 ₪
2,599.00 ₪
Sale Sold out
Tax included. Shipping calculated at checkout.
Total Amplified Output Channels 4
Stereo @ 4 Ohms 4 x 120 Watts
Stereo @ 2 Ohms 4 x 190 Watts
Stereo @ 1 Ohms N/A
Bridgeable Speaker Outputs Yes
Bridged @ 4 Ohms 2 x 380 Watts
Bridged @ 2 Ohms N/A
Other Channels @ 4 Ohms N/A
Other Channels @ 2 Ohms N/A
Other Channels @ 1 Ohms N/A
Output Load Switch N/A
Output Type Class G/H
Fuse Rating 3 x 30 Amp
Idle Current TBD
Amplifier Operating Voltage Range 8V - 17.1V
Adjustable Class-D Switching Frequency N/A
Built-in Fan Cooled Yes - Variable Speed Ball Bearing Fan
Input Channels (Analog) 2/4
Input Channel Selection Yes, 2/4
Input Channels (Analog Type) Balanced (RCA or Speaker Level)
Input Sensitivity (Analog) 200mV - 3.5V
Input Impedance (Analog) 10k Ohms
Input Gain Type Analog Control (1 control p/pair of channels L/R)
Amplifier Slave In/Out (RCA) N/A
Frequency Response 10Hz - 50kHz
S/N Ratio @ 1 Watt -83dB
S/N Ratio @ Full Power -101dB
Auto-Sense Turn-on N/A
Crossover Type Ch 1/2 HP, LP, Full (12dB Linkwitz-Riley)
Crossover Range Ch 1/2 55Hz - 550Hz (x10 550Hz - 5.5kHz)
Crossover Type Ch 3/4 HP, LP, Full (12dB Linkwitz-Riley)
Crossover Range Ch 3/4 55Hz - 550Hz (x10 550Hz - 5.5kHz)
Crossover Type Ch 5/6 N/A
Crossover Range Ch 5/6 N/A
Bandpass Crossovers N/A
Crossover/Front-end "Bypass" N/A
Bass Boost 0-15dB @ 45Hz (Front channels only)
Onboard Diagnostics Yes - Protection: Thermal, Under/Over Voltage, Short, DC & More
Clip Warning Lights N/A
Compatible External Level Control N/A
Dual External Control Use (Optional) N/A
Remote Turn-on Pass Through N/A
Cosmetic Trim Level N/A
Dimensions 11.25"(L) x 8"(W) x 2.375"(H)
