Arc audio

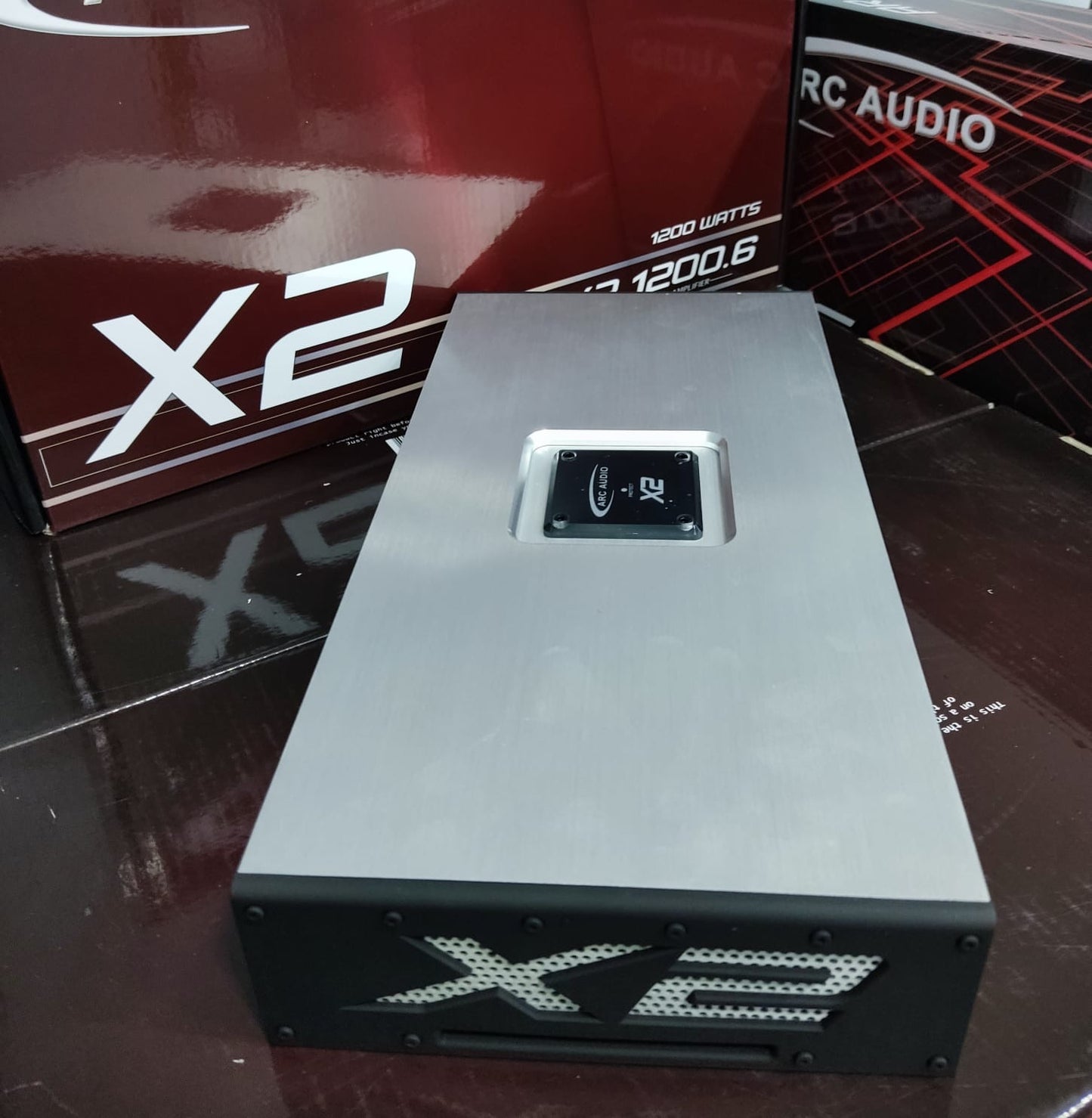

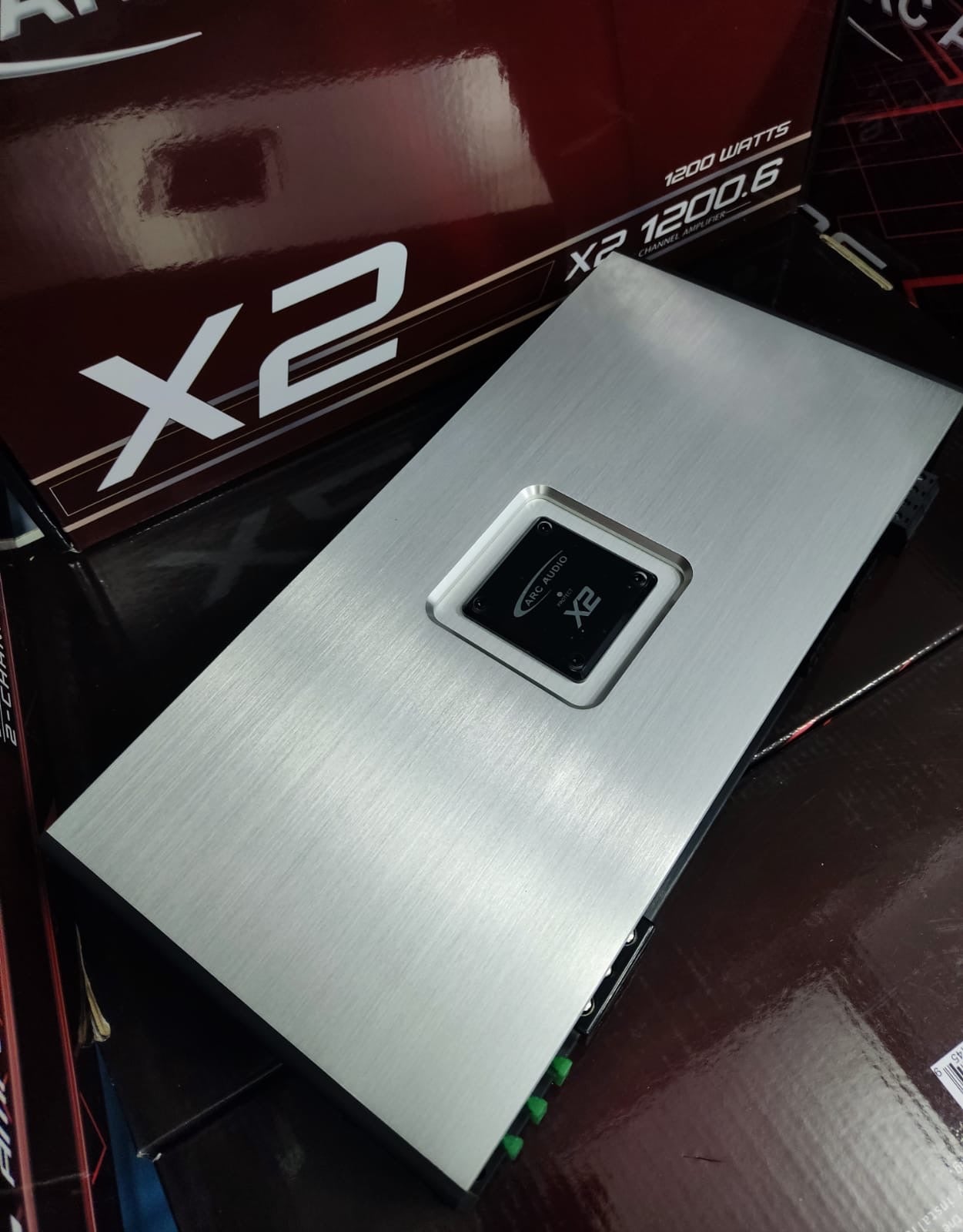

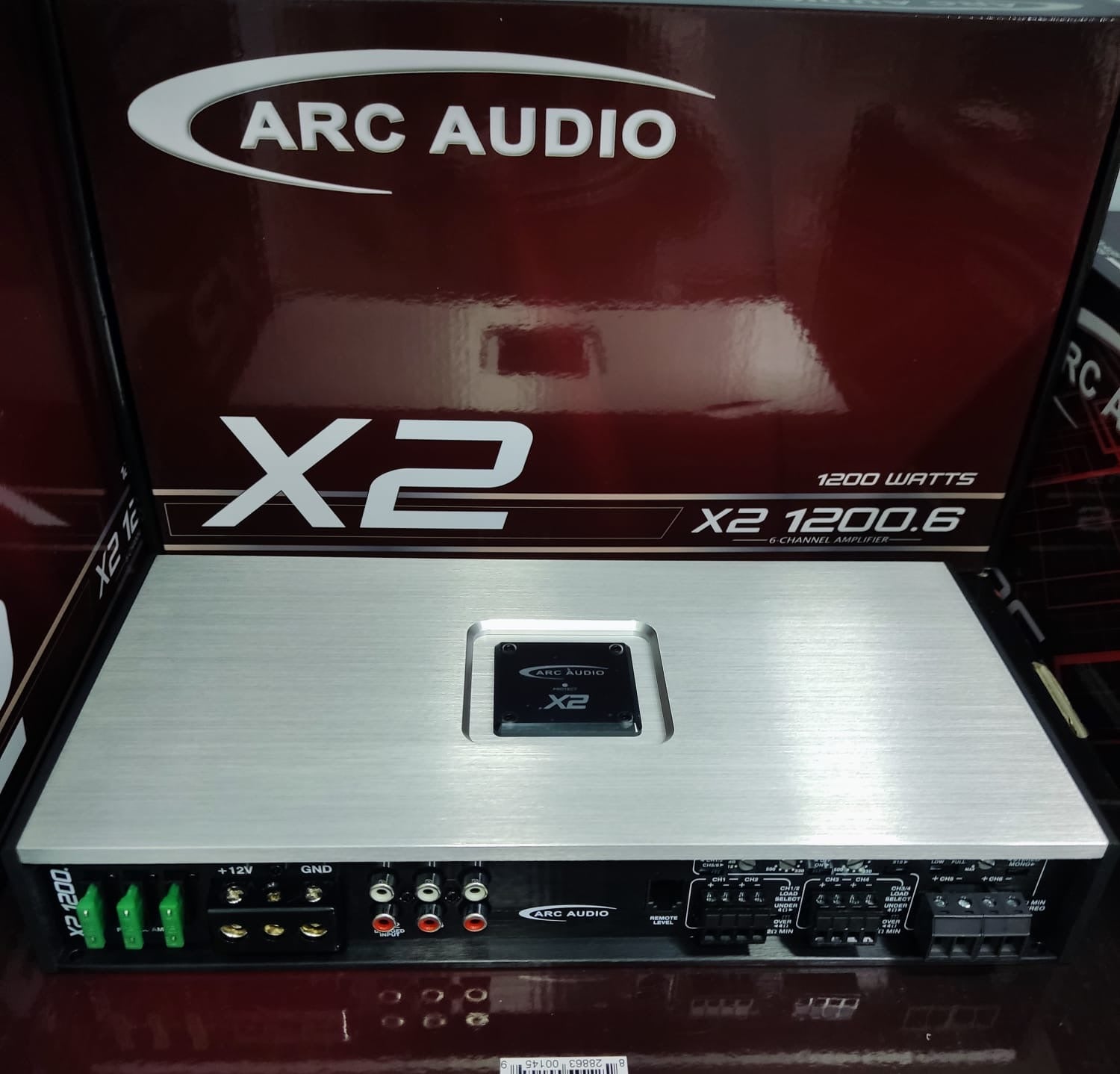

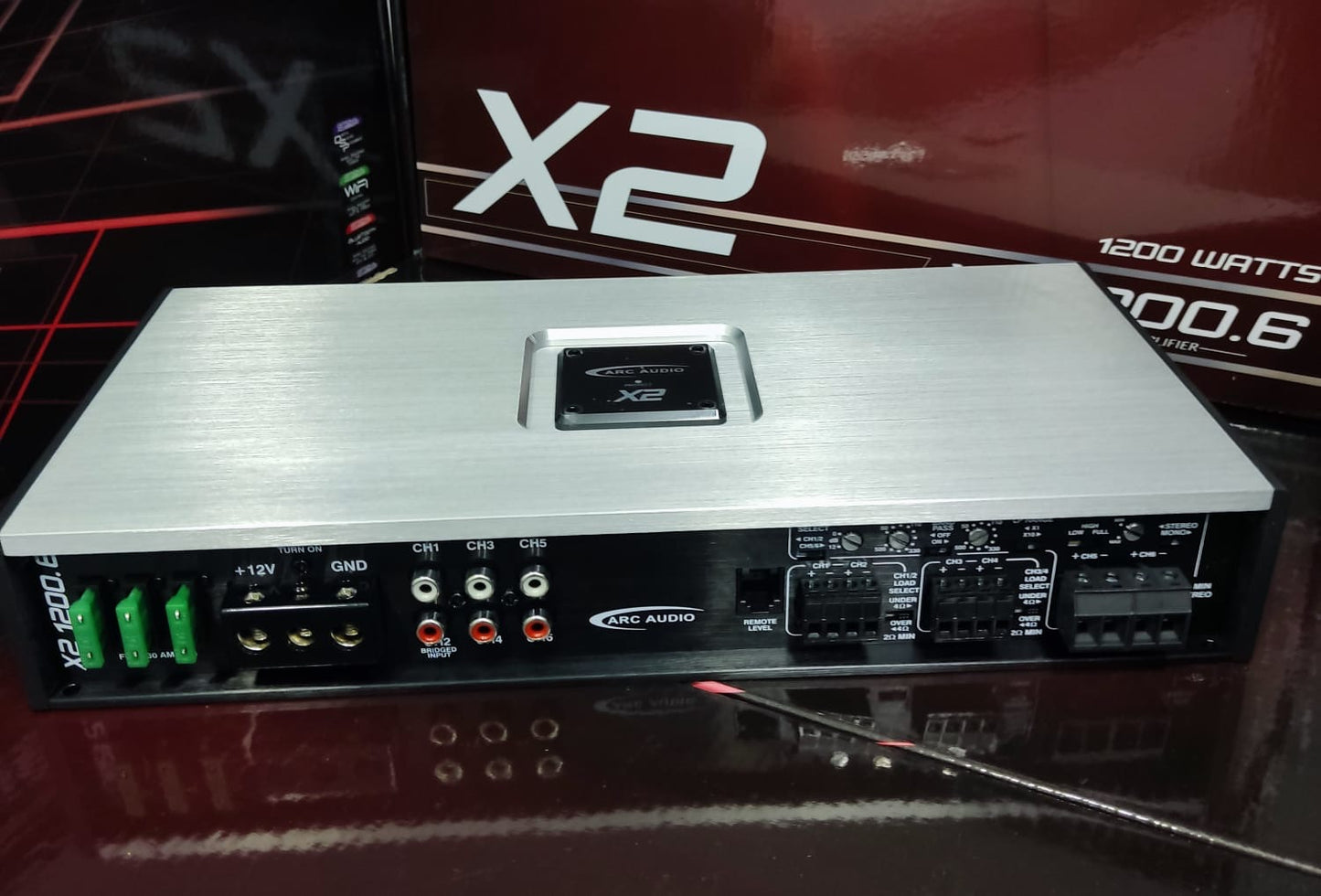

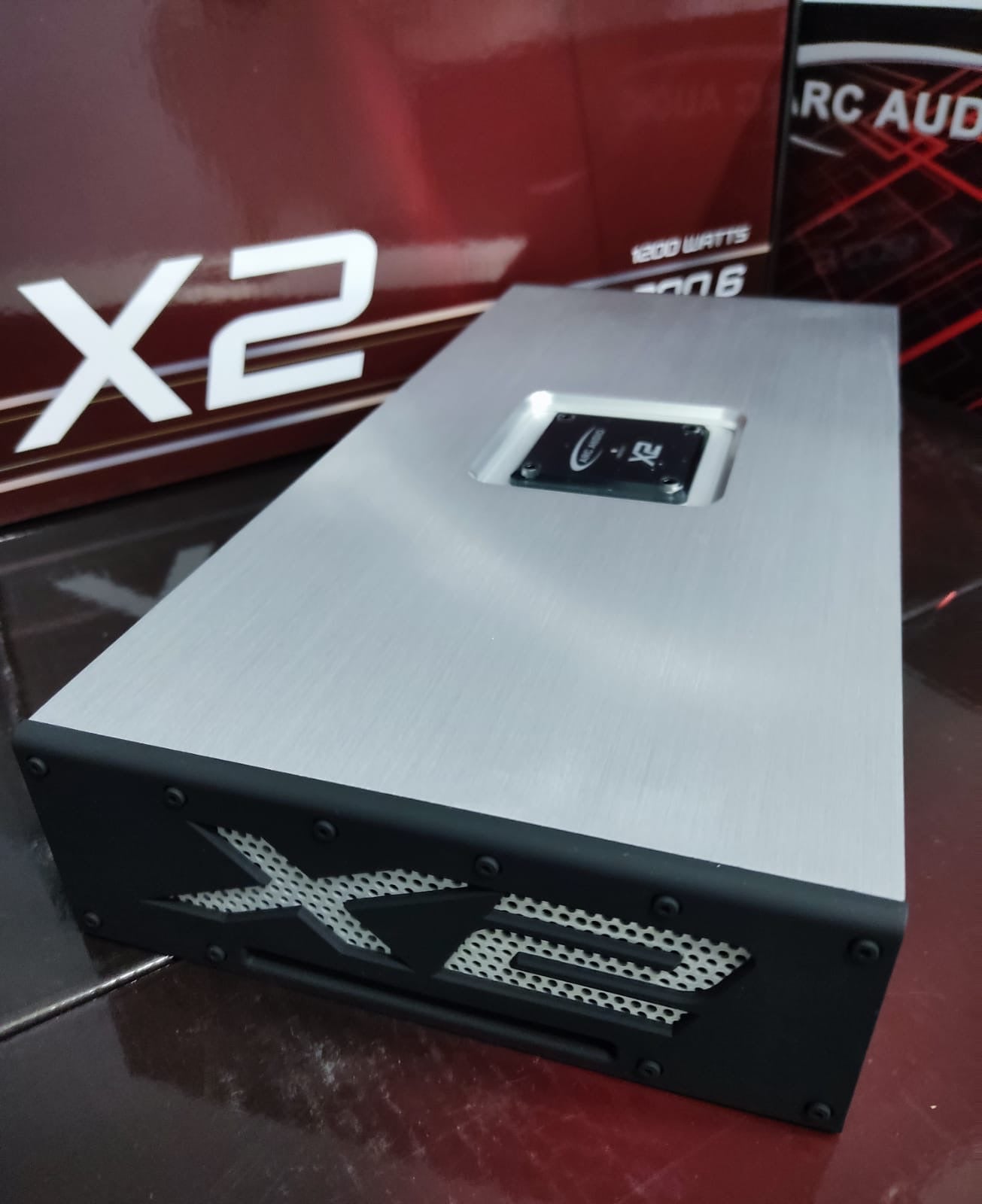

Arc audio x2 1200.6

Arc audio x2 1200.6

3,499.00 ₪
3,499.00 ₪
Sale Sold out
Tax included. Shipping calculated at checkout.
Total Amplified Output Channels 6
Stereo @ 4 Ohms 4 x 150 Watts (Ch 1-4)
Stereo @ 2 Ohms 4 x 150 Watts (Ch 1-4)
Stereo @ 1 Ohms N/A
Bridgeable Speaker Outputs Yes
Bridged @ 4 Ohms 2 x 300 Watts (Ch 1-4), 1 x 600 Watts (Ch 5-6)
Bridged @ 2 Ohms N/A
Other Channels @ 4 Ohms N/A
Other Channels @ 2 Ohms N/A
Other Channels @ 1 Ohms N/A
Output Load Switch Yes
Output Type Class-D
Fuse Rating 3 x 30 Amp
Idle Current 3A
Amplifier Operating Voltage Range 8V - 15.8V
Adjustable Class-D Switching Frequency No
Built-in Fan Cooled Yes - Variable Speed Ball Bearing Fan
Input Channels (Analog) 2/4/6
Input Channel Selection 2/4/6 Channel
Input Channels (Analog Type) Balanced (RCA or Speaker Level)
Input Sensitivity (Analog) 200mV - 3.5V
Input Impedance (Analog) 10k Ohms
Input Gain Type Analog Control (1 control p/pair of channel L/R)
Amplifier Slave In/Out (RCA) N/A
Frequency Response 10Hz - 20kHz
S/N Ratio @ 1 Watt -80 dB
S/N Ratio @ Full Power -113 dB
Auto-Sense Turn-on DC (BTL)/Signal (Ch1 Detect)
Crossover Type Ch 1/2 HP, LP, Full (12dB Linkwitz-Riley)
Crossover Range Ch 1/2 HP 50Hz - 500Hz, LP 50Hz - 500Hz (x10 500Hz to 5kHz LP Only)
Crossover Type Ch 3/4 HP, Full
Crossover Range Ch 3/4 50Hz - 500Hz (x10 500Hz - 5kHz HP Only)
Crossover Type Ch 5/6 HP/LP/Full BP
Crossover Range Ch 5/6 HP 50Hz - 500Hz, LP 50HZ - 500Hz (x10 500Hz - 5kHz LP Only)
Bandpass Crossovers Yes (Ch 1-2 & 5-6 Only)
Crossover/Front-end "Bypass" N/A
Bass Boost Variable 0-12dB @ 45Hz (Ch 5/6 only)
Onboard Diagnostics Yes - Protection: Thermal, Under/Over Voltage, Short, DC & More
Clip Warning Lights N/A
Compatible External Level Control Yes, Included (Works on Ch 5/6 only)
Dual External Control Use (Optional) N/A
Remote Turn-on Pass Through N/A
Cosmetic Trim Level X2 Level 2 Trim
Dimensions 13"(L) x 6.268"(W) x 2.162"(H)
