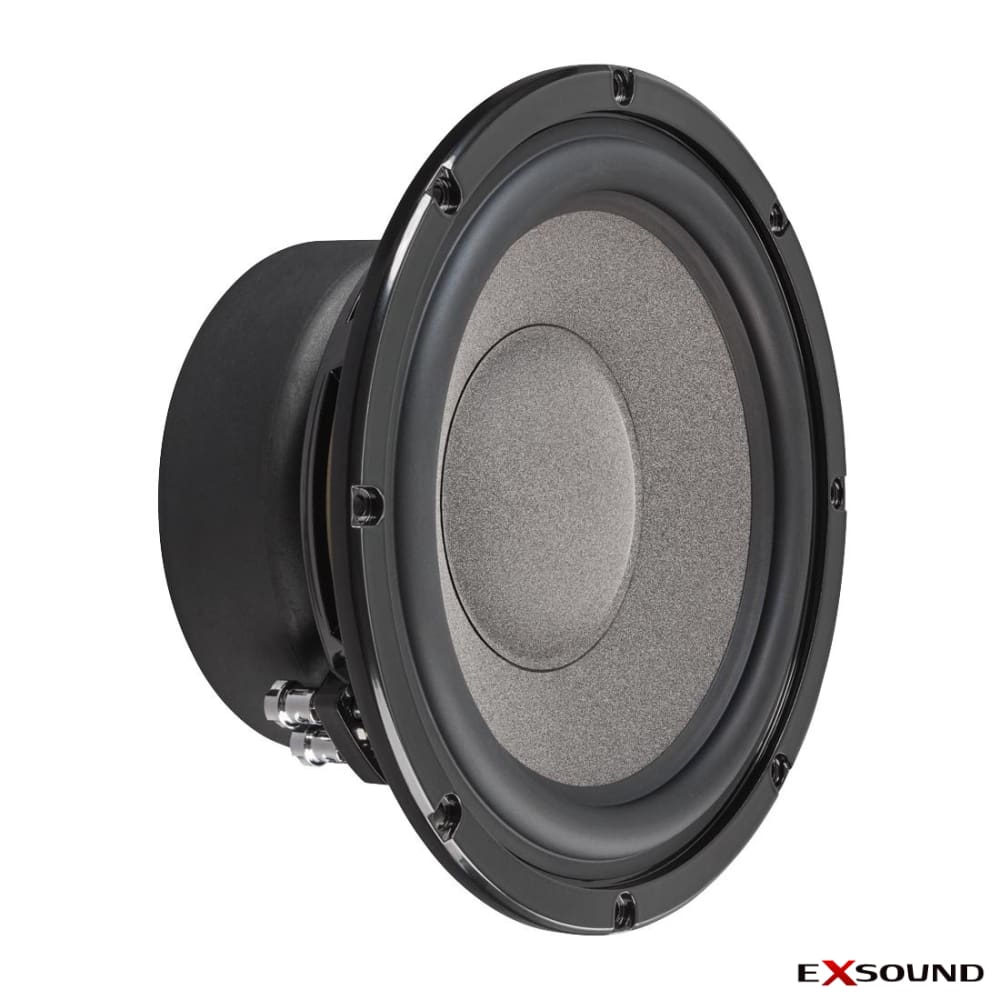

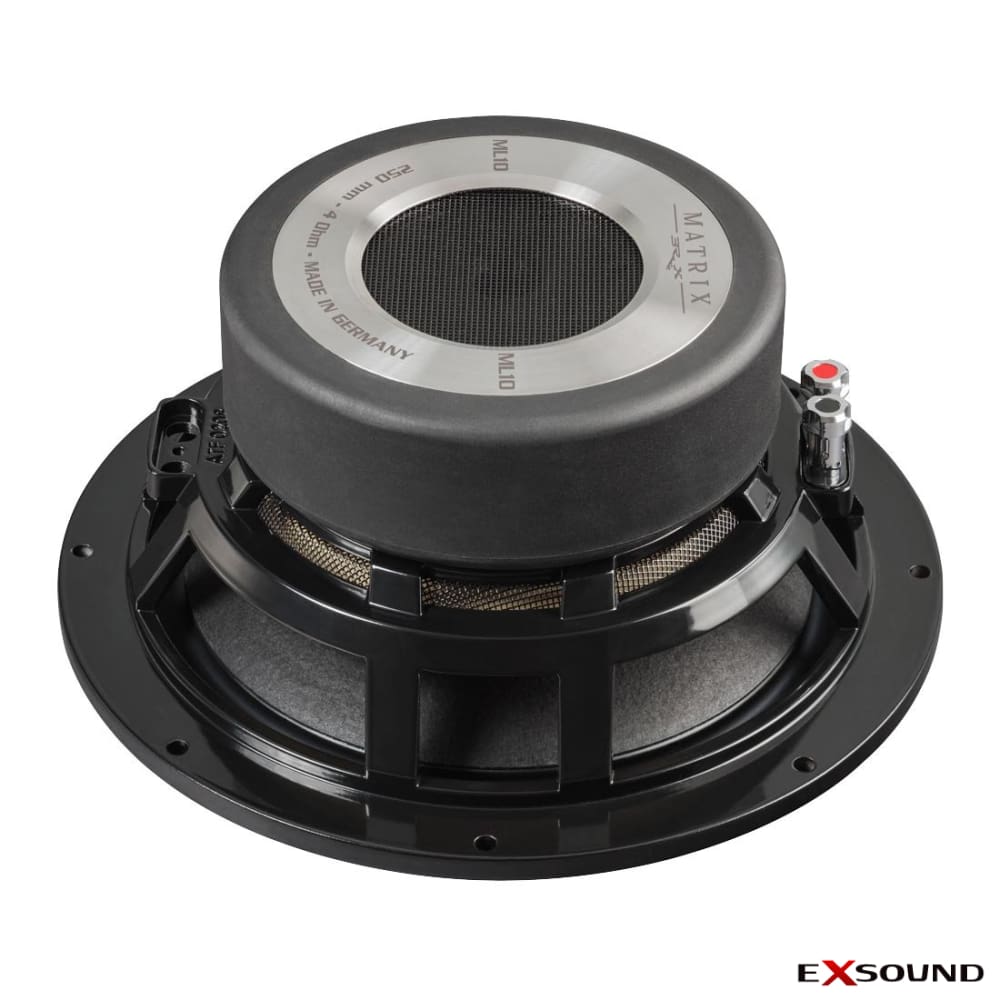

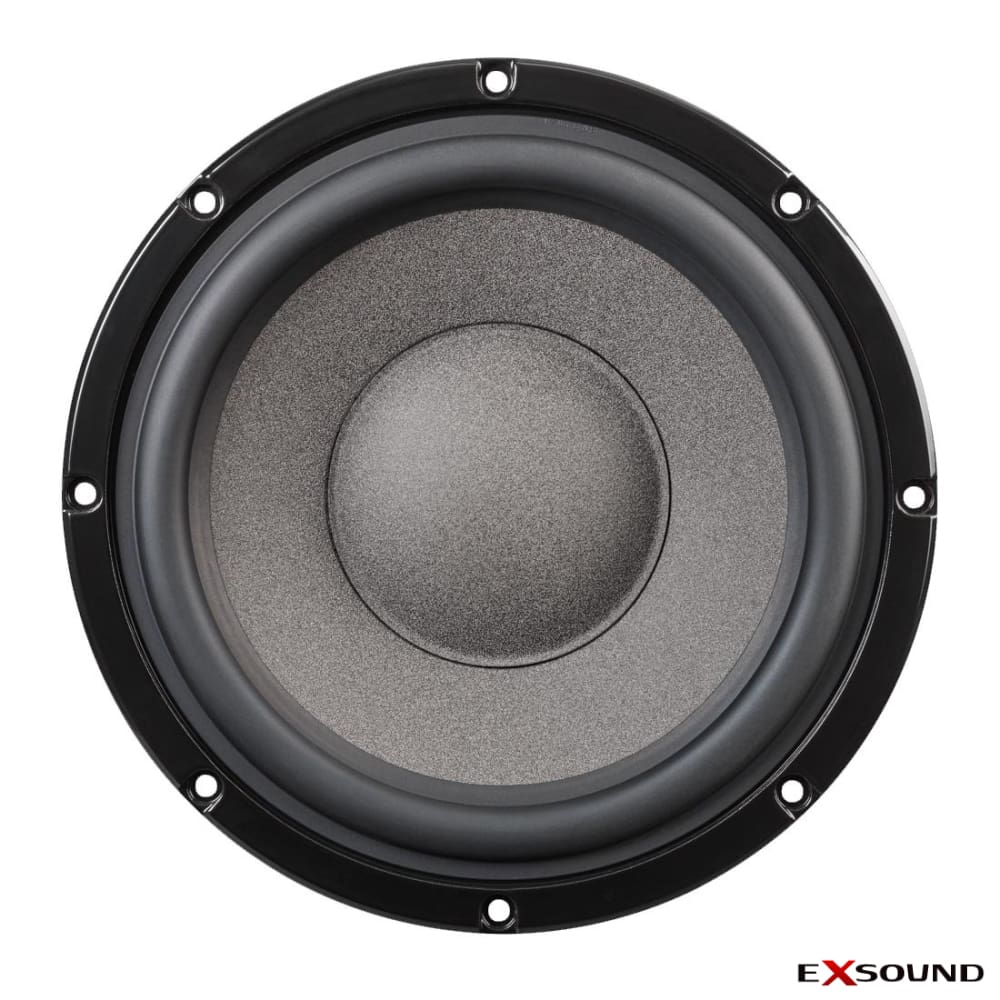

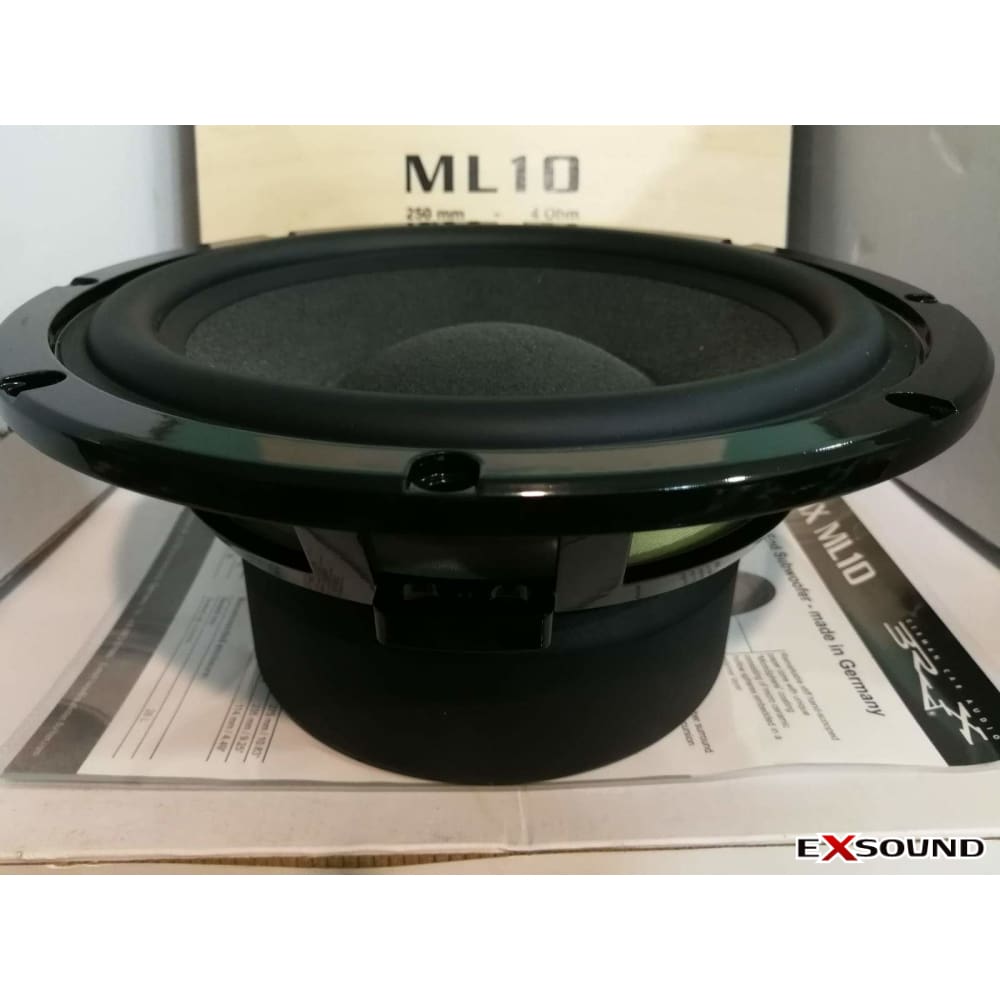

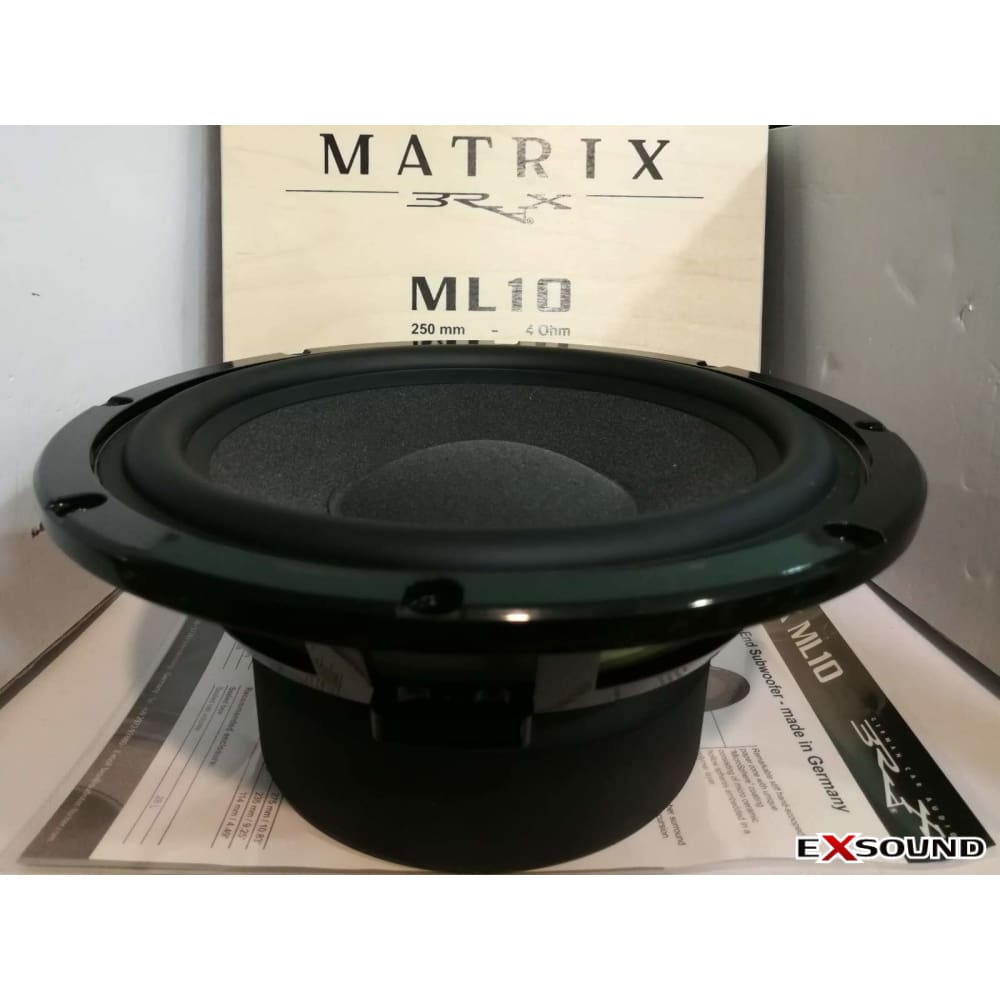

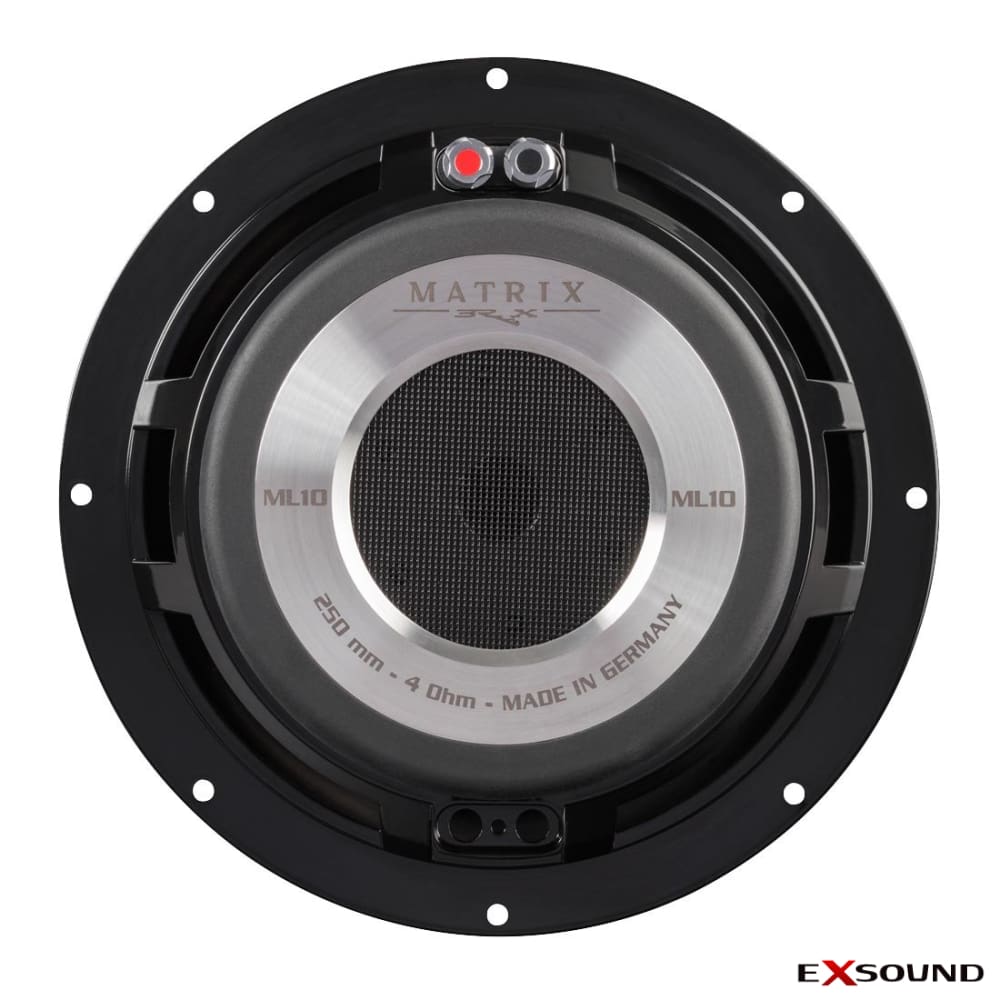

BRAX MATRIX ML10

BRAX MATRIX ML10

2,799.00 ₪
2,799.00 ₪
Sale Sold out
Tax included. Shipping calculated at checkout.
Power RMS / max.   600 / 1200 Watts
Impedance  Z 4 Ω
DC resistance  Re 3.4 Ω
Resonance frequency  Fs 35 Hz
Mechanical Q factor  Qms 8.10
Electrical Q factor  Qes 0.49
Total Q factor Qts 0.46
Compliance Cms 241 µm/N
Equivalent air volume Vas 40 L
Force factor  B*I 11.60 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area  Sd 346 cm²
Moving mass  Mms 89 g
Cone material   Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
Mechanical resistance  Rms 2.37 kg/s
Voice coil diameter ø 65 mm / 2.6"
Voice coil winding height   33 mm / 1.3"
Max. linear excursion  Xmax +/- 12.5 mm
Outer diameter ø 275 mm / 10.8"
Installation diameter ø 235 mm / 9.3"
Installation depth   114 mm / 4.5"

Recommended enclosure volumes
Sealed box
Net volume   28 L
Lower limiting frequency (-3dB)   45 Hz

Vented box    Not recommended
Net volume   -
Port diameter ø -
Port area   -
Port length   -
Port tuning frequency Fb -
Lower limiting frequency (-3dB)   -
