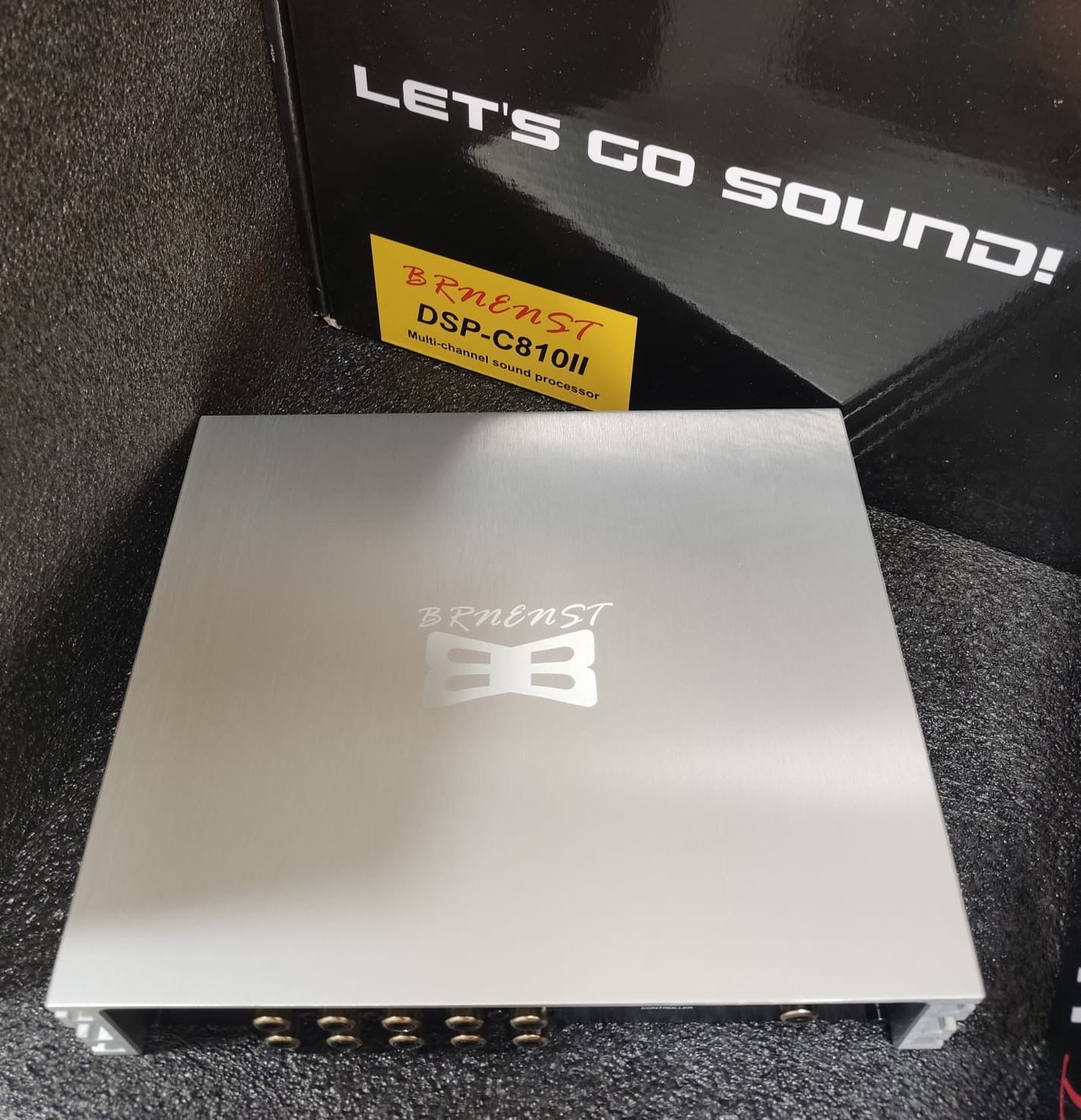

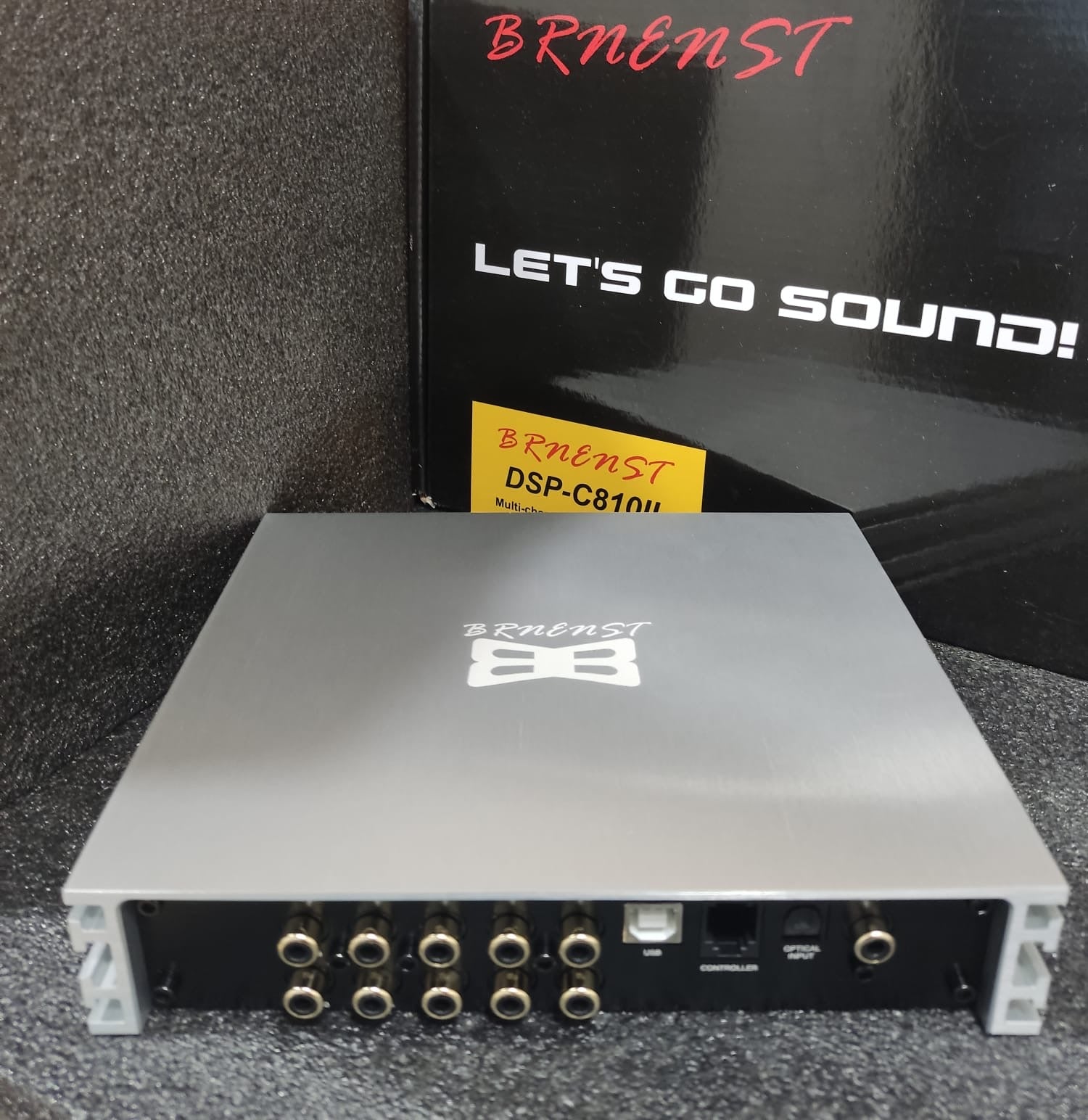

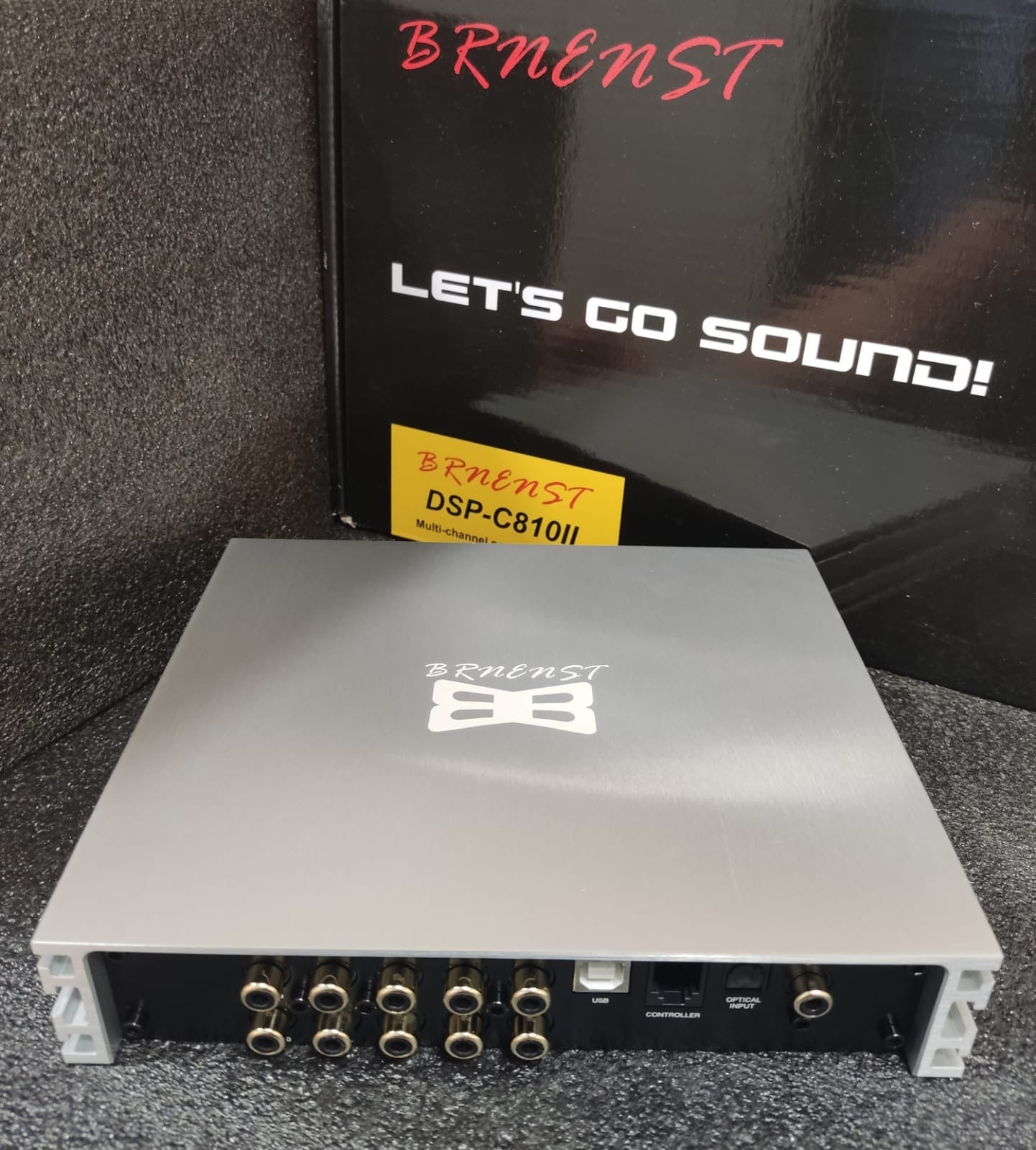

Brnenst dsp_c810ll

Dynamic Range ≥100dB

S/N Ratio (RCA)

≥98dB

THD

≤0.05%

Sampling Rate 48kHz/24Bit

Freq. Response 20Hz-20kHz

Input Impedance RCA: 20kΩ, high-level: 4.7Ω

RCA Output 51Ω

Input Range (max) RCA: 6.5Vpp, high-level: 28Vpp

Output Range (max) RCA: 7Vpp, high-level: 28Vpp

Operating -20~70℃

Supply Voltage DC 9V~16V

REM Input High-level start(H1+/H1-) or ACC

REM Output +12V starting voltage (0.2A)

Standby Power ≤0.1W

Net weight Approx. 1.13kg

Dimension 196(L)*166(W)*39(H)mm

Function Parameters

Input Signal 8-channel high level, 2-channel RCA, built-in Bluetooth,

optical/coaxial

Output Signal 8*50W max power, 10-channel RCA

Output Signal Gain Gain range: OFF,

-59.9dB~0.0dB

Output Signal

Equalizer

Equalizer engine per output channel:

1. Frequency range: 20Hz~20kHz

2. Q value (slope): 0.404~28.852

3. Gain: -12.0dB~+12.0dB, resolution: 0.1dB

Output Signal

Crossover

Each channel has an independent multi-stage filter

1. Types: Linkwitz-Riley, Butterworth and Bessel

2. Crossover point: 20Hz~20kHz, resolution: 1Hz

3. Slope setting: OFF, 6dB/Oct~48dB/Oct

Phase Shift and

Delay Setting

Phase shift and delay setting are available for each output

channel

Phase: positive & negative phase (0°/180 °)

Time: 0.000~20.000ms, 0~692cm, 0~273inch

Preset Operation The machine can save 6 preset sound effects
