Specifications

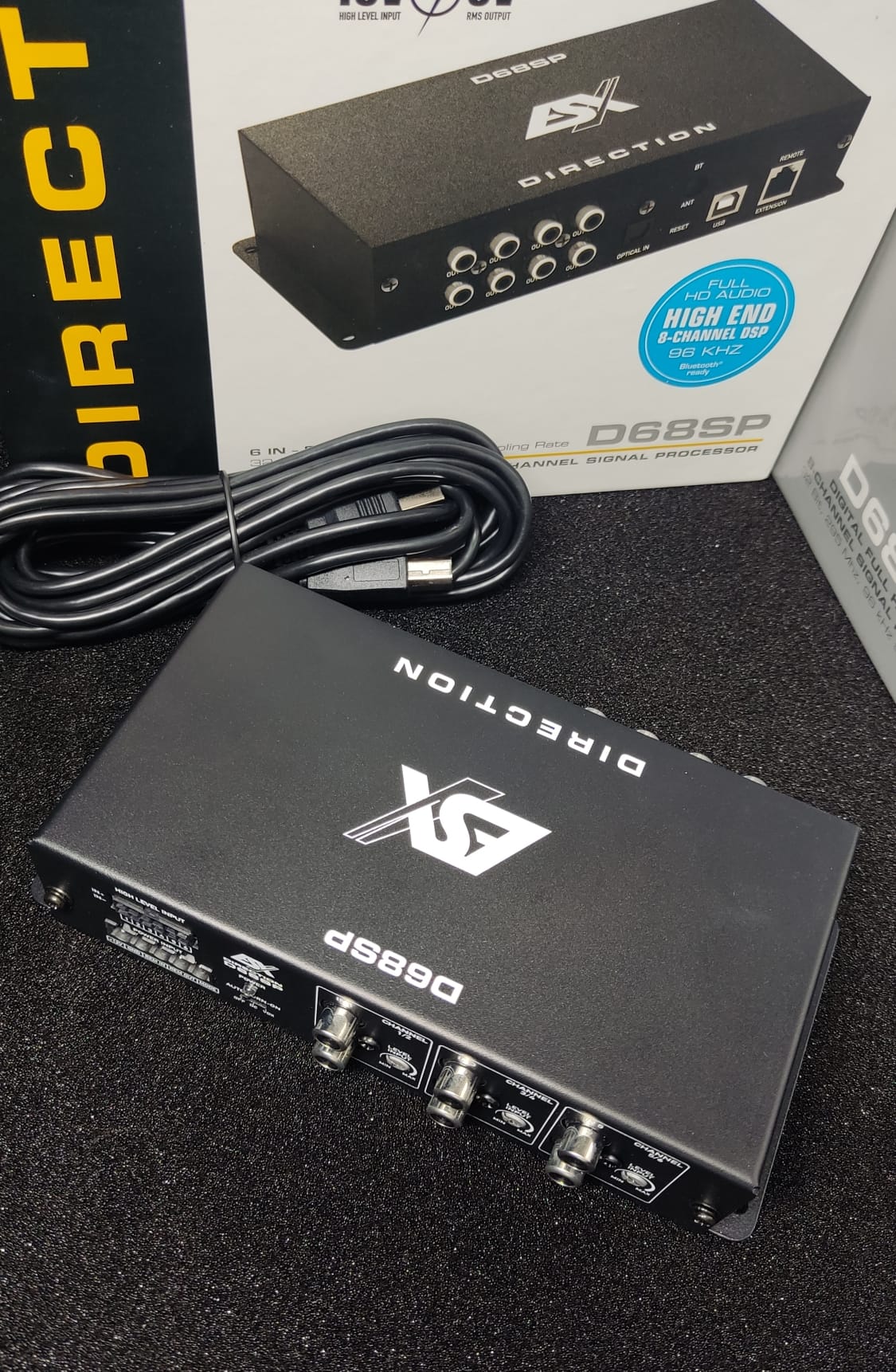

Digital 8-Channel Sound Processor

6 x RCA Input, balanced

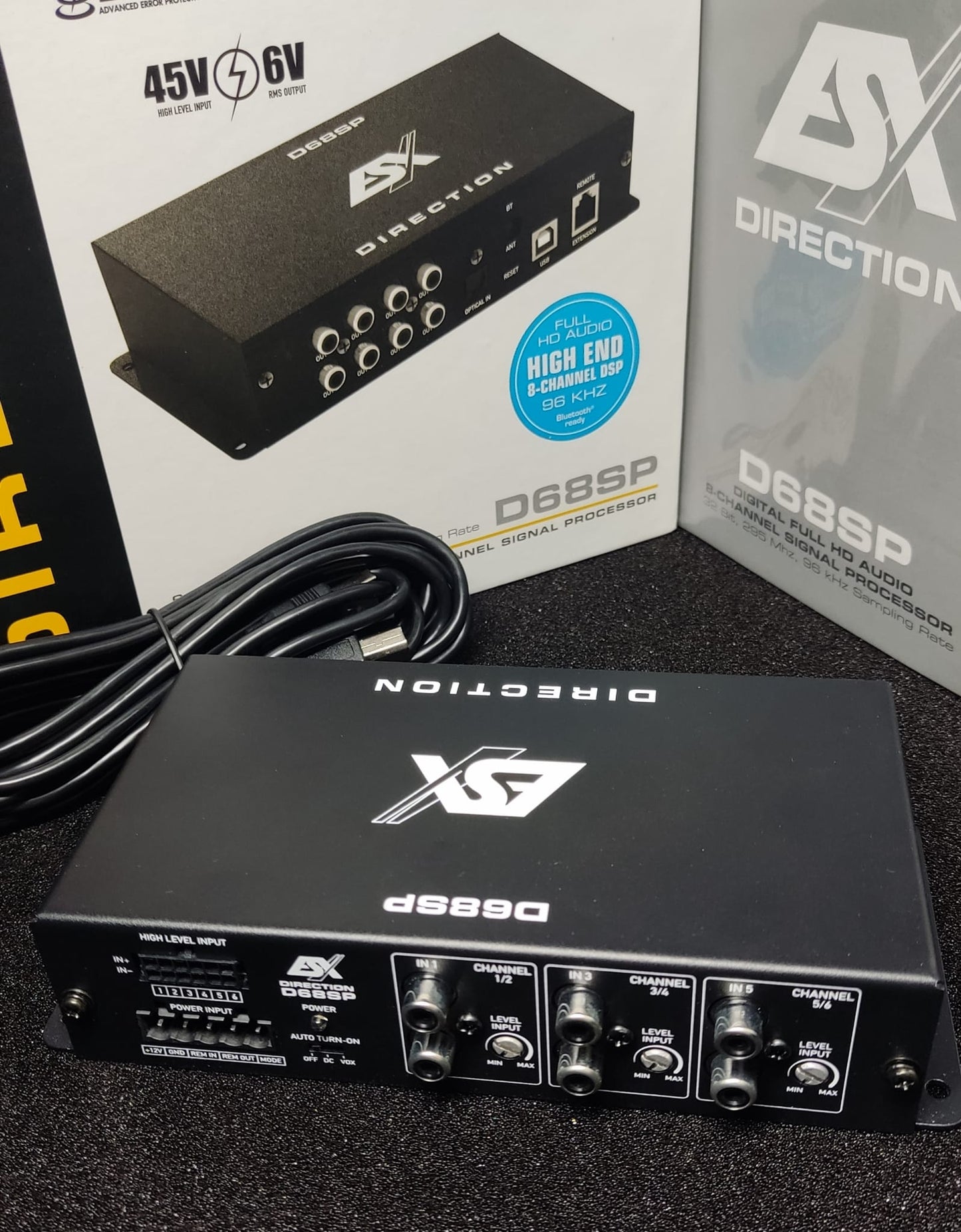

6 x High Level Input with EPS PRO up to 40 V/RMS (via Molex)

1 x Optical Stereo Input, S/PDIF 192 kHz, 24 bit

1 x USB Type B Socket for PC Software

1 x RJ45 Socket for Remote Controller

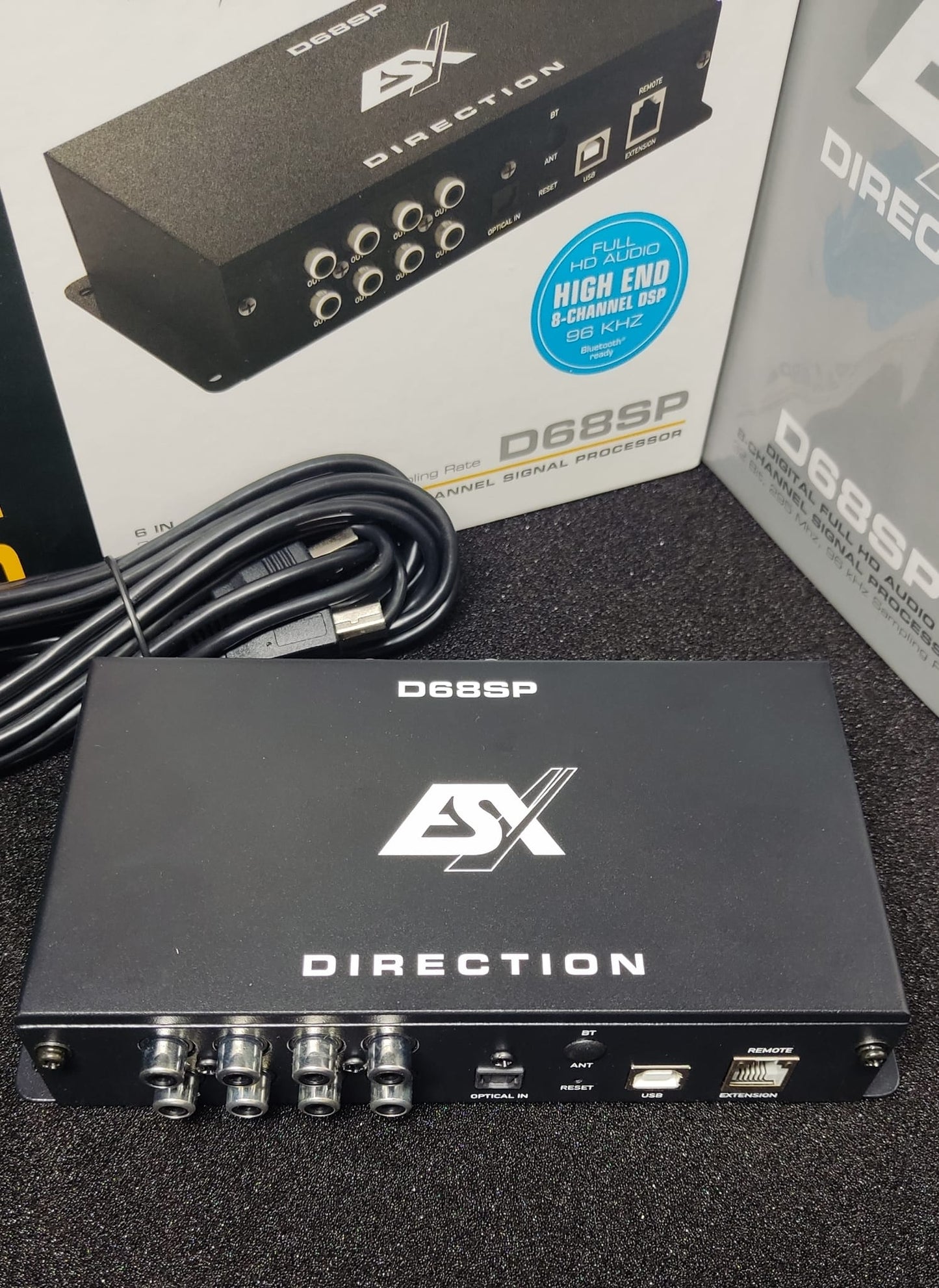

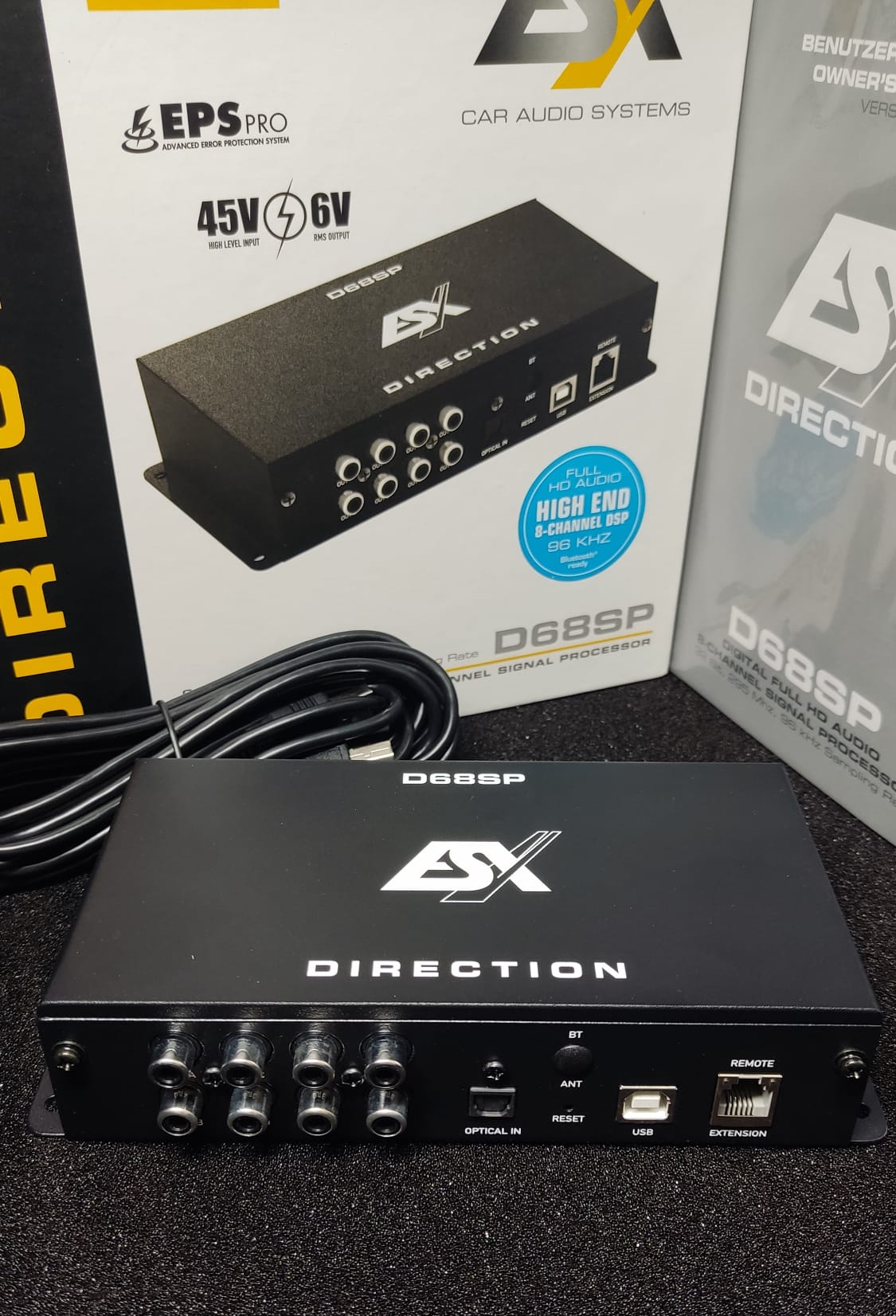

8 x RCA Output @ 6 V RMS

Dimensions 105 x 40 x 185 mm

Features

• DSP Chip from Analog Devices™ 32 Bit, 294 MHz, Full HD Audio 96 kHz
• Signal Converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit
• HPF/LPF/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps
• Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps)
• Input Mixer, Subwoofer Control, Priority Input Mode for digital Sources
• Input Sensitivity: Low Level 1 ~ 6 V/RMS, High Level 1 ~ 15 or 15 ~ 45 V/RMS
• Signal-to-noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB
• Total Harmonic Distortion: Analog Input <0.0015%, Digital Input <0.0009%
• REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch)
• Optional Accessories: BT-D (Bluetooth® Module), RC-DQ (LCD Remote Controller)
