Features

• Advanced Class D Technology with very high Efficiency
• Dynamic Headroom Technology*
• Max. DHR Output Power per Channel up to 160 Watts RMS @ 2 Ω
• Selected and audiophile tuned Components
• Massive Aluminum Heatsink
• Heavy lateral Die-cast Parts
• High Level Inputs with Error Protection System (EPS

• Specifications

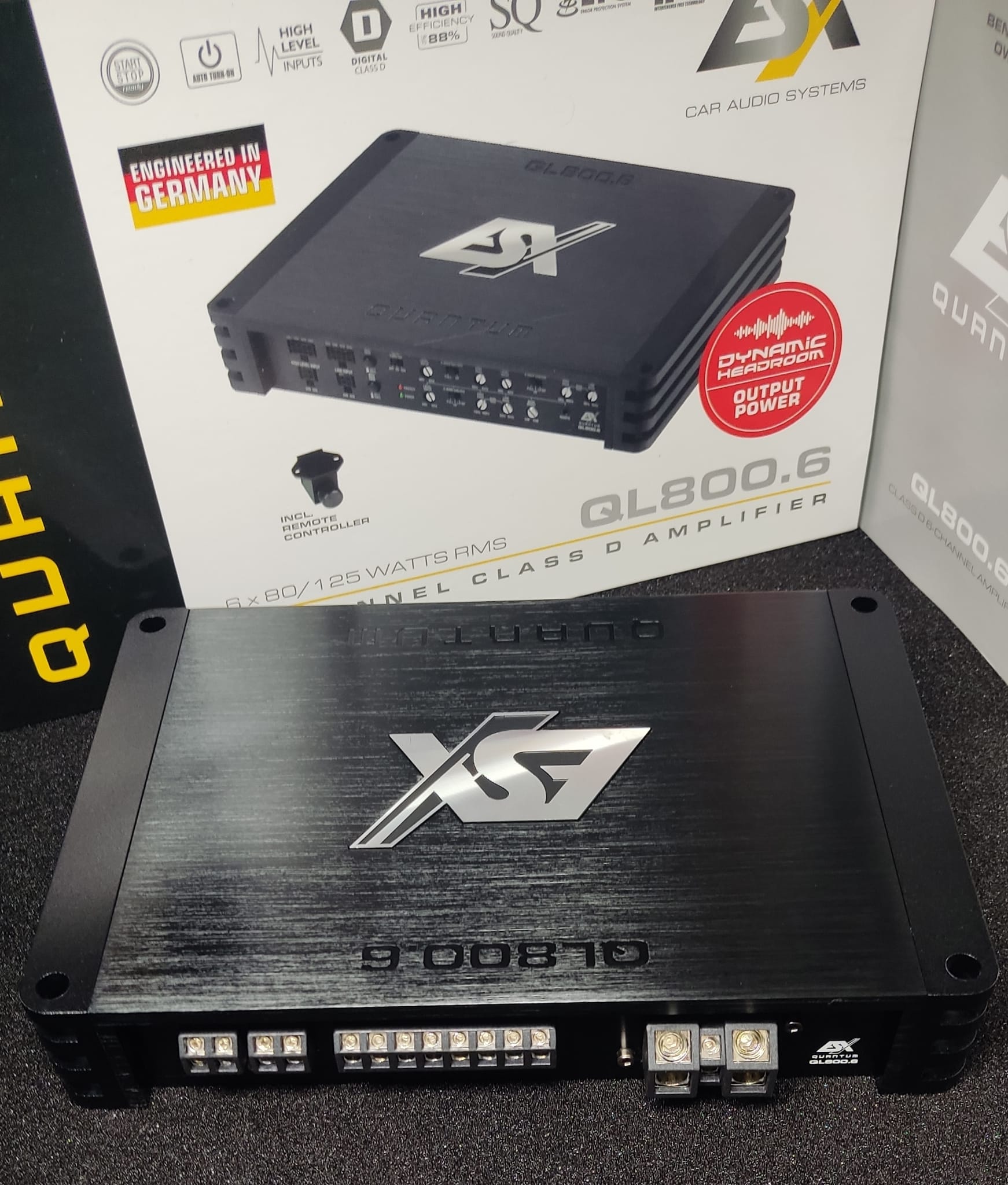

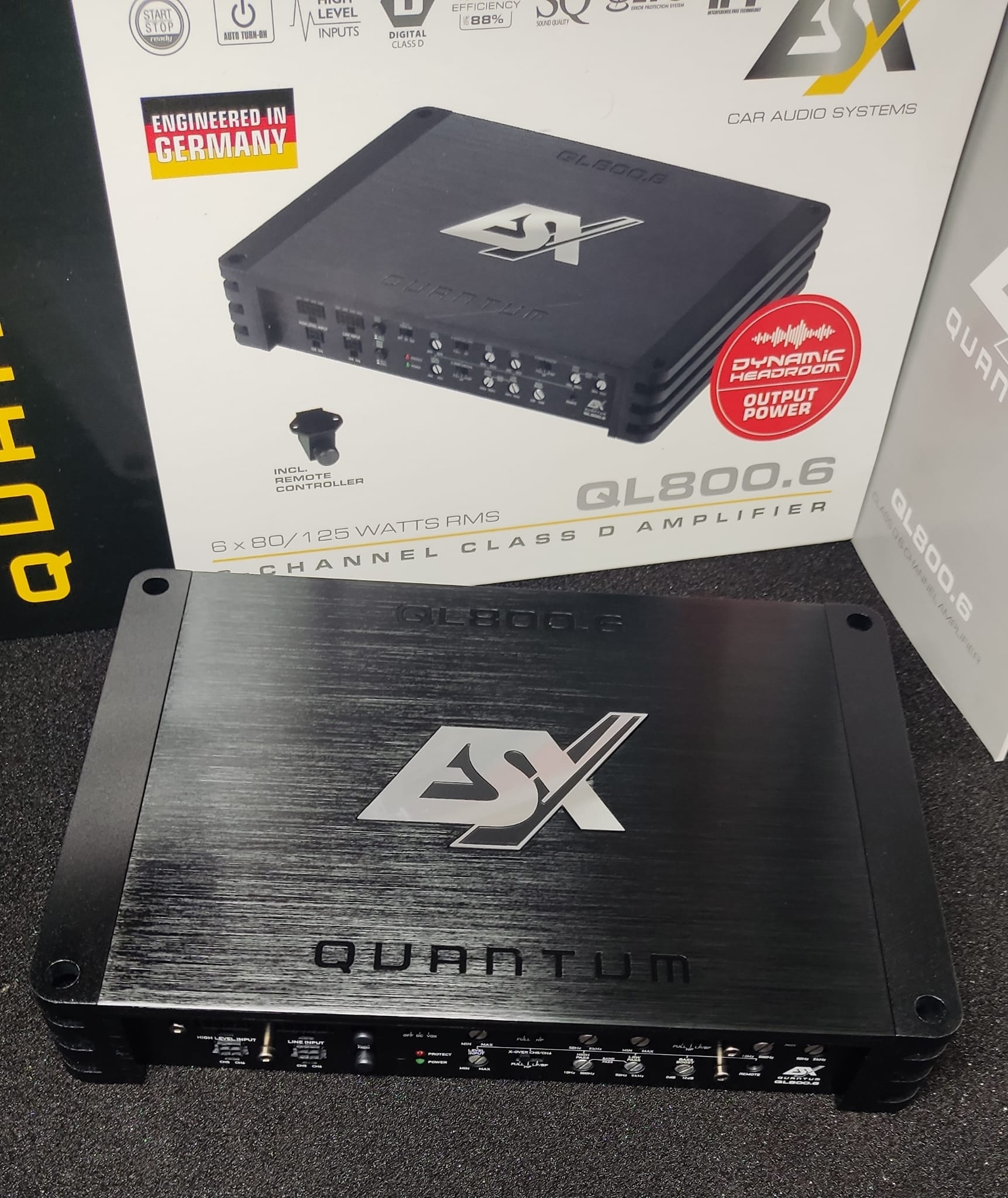

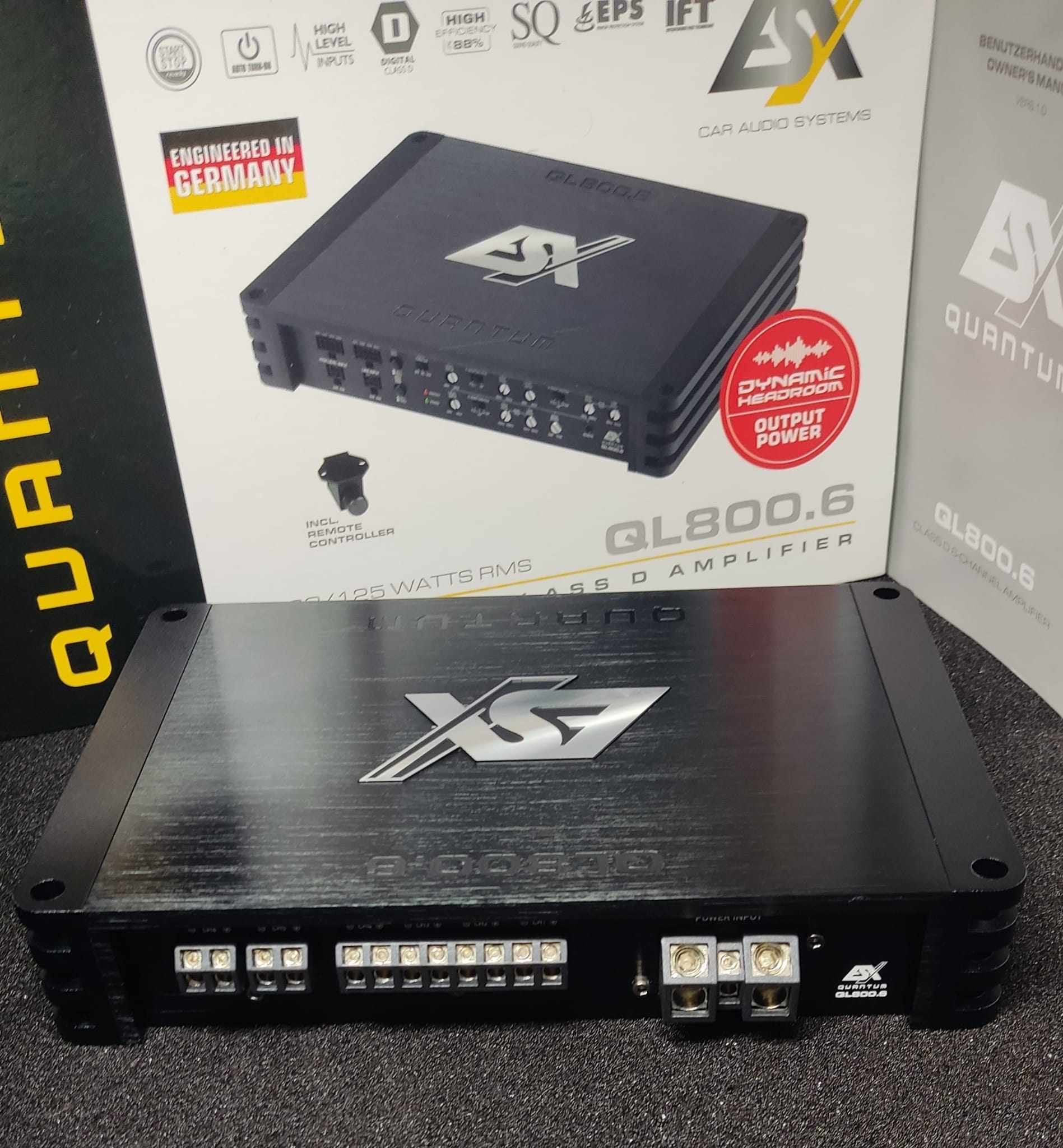

  6-Channel Class D Digital Amplifier

  6 x 80/125 Watts RMS @ 4/2 Ω

  3 x 250 Watts RMS @ 4 Ω bridged

  HPF 50-5000 Hz (CH1/2)

  HPF 10-500 Hz (CH3/4 + CH5/6)

  LPF 50-5000 Hz (CH3/4 + CH5/6)
  RCA Inputs via Molex
  RCA Outputs via Molex

  Bandpass Function  (CH3/4 + CH5/6)

  Input Selector CH2/4/6

  Dimensions 254 x 47 x 170 mm
