Brand: esx

Product Code:

Availability: In stock

4,799.00 ₪ 4,799.00
שנה אחריות
*מלבד כל הרמקולים וסאבוופרים
  • Analog Devices™ ADAU1452 32 Bit Processor, 294 MHz, Full HD Audio 96 kHz
  • AKM Velvet Sound™ Series 5 Signal Converter, A/D 32 Bit, D/A 32 Bit
  • HPF/LPF/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps
  • Input Mixer, Subwoofer Control, Priority Input Mode for digital Sources
  • DSP Control via ESX DSP Toolkit
    - PC Software for Microsoft
    ® Windows™ 10 or newer
  • Integrated Bluetooth® Receiver (incl. Antenna) for DSP control via App and Fully HD Audio Streaming
    Bluetooth-Version 5.0, Profiles: A2DP/AVRCP, Codecs: aptX, aptx LL, AAC, SBC
  • REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch)
  • Optional Accessories: RC-DQ (LCD Remote Controller)

Specifications

Class D 7-Channel Amplifier with

Digital 8-Channel Sound Processor

5 x 100 Watts RMS @ 4/3 Ω + 2 x 200 Watts RMS @ 2 Ω

Frequency Range 5 ~ 45.000 Hz

Signal-to-noise Ratio (A-weighted): 106,5 dB

THD 0,005% @ 1 Watts RMS, 0,003% @ 5 Watts RMS

Operating Voltage 7.5 ~ 17 V
Dimensions 250 x 50 x 150 mm


Inputs:

6 x RCA, balanced (via Molex Plug)

6 x High Level Input (via Molex Plug)

1 x Optical Stereo Input, S/PDIF 192 kHz, 24 bit

1 x Bluetooth® Stereo Input via Audio Streaming

1 x USB Type B Socket for PC Software

1 x RJ45 Input for Remote Controller

1 x Terminal  incl. REM IN/OUT  &  Mode Preset Switching Input

Input Sensitivity Low Level 500 mV ~ 6 V

Input Sensitivity High Level 2 ~ 15 V or 15 ~ 40 V (switchable)

Input Impedance Low Level 10 kΩ

Input Impedance High Level 10/150/600 Ω (switchable)
Auto Turn-On Function DC / VOX / OFF

Outputs:

5 x Amplified Speaker Output (via Molex Plug)

2 x Amplified Speaker/Subwoofer Output (via Molex Plug)

1 x Subwoofer Output (RCA via Molex Plug)

1 x Switching Output for External Fan +12V

Manufacturer's suggested retail price, changes and mistakes reserved.

All trademarks, trade names or brands are the property of their respective owners.

RECOMMENDED ACCESSORIES

RC-DQ

LCD Remote Controller

Incl. Connection Cable and Mounting Housing

VPK-MB206-VE9

Plug+Play Adapter Cable

for Mercedes-Benz C-Class W206

VPK-RAM-VE9

Plug+Play Adapter Cable

for BMW RAM Systems

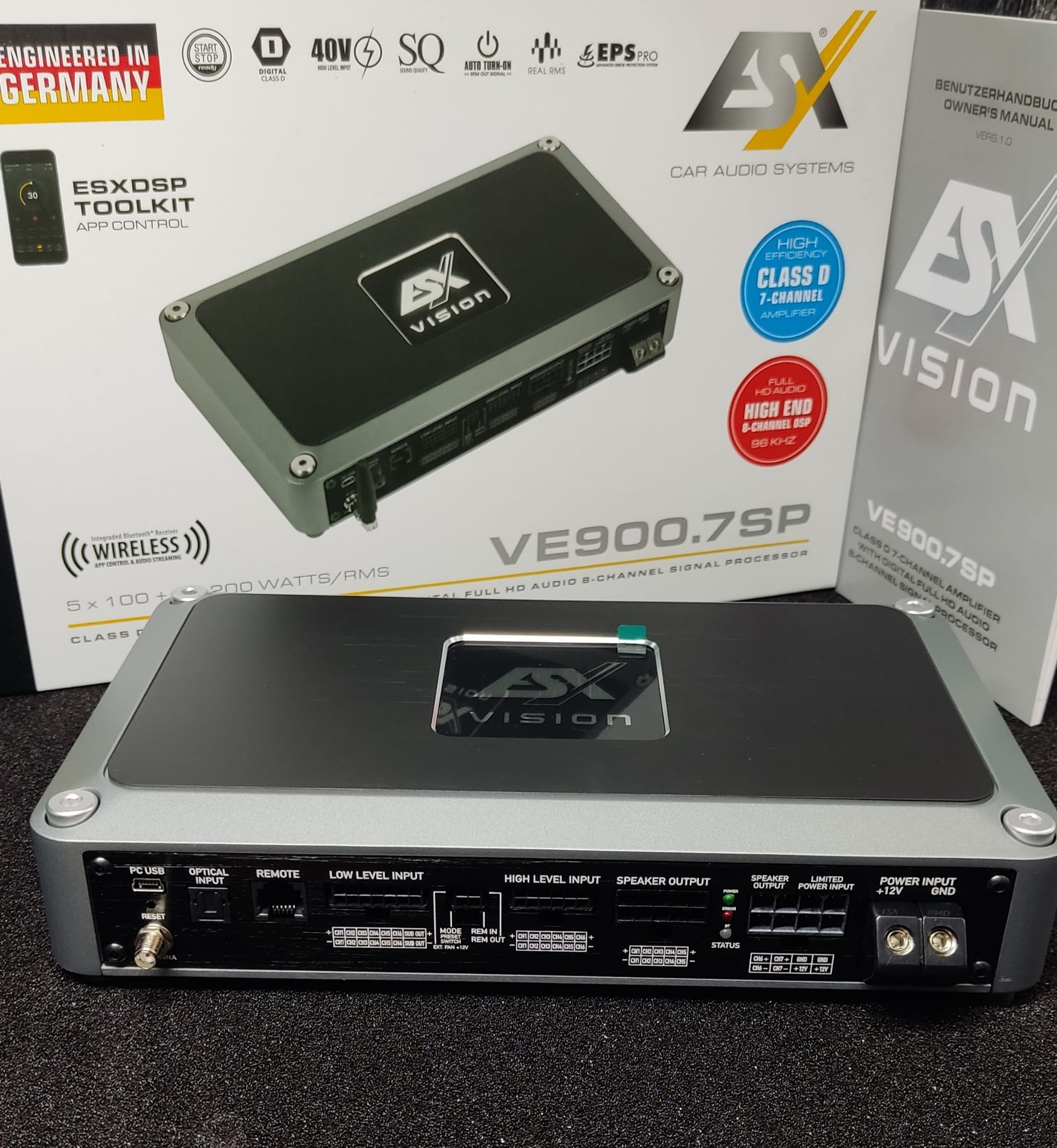

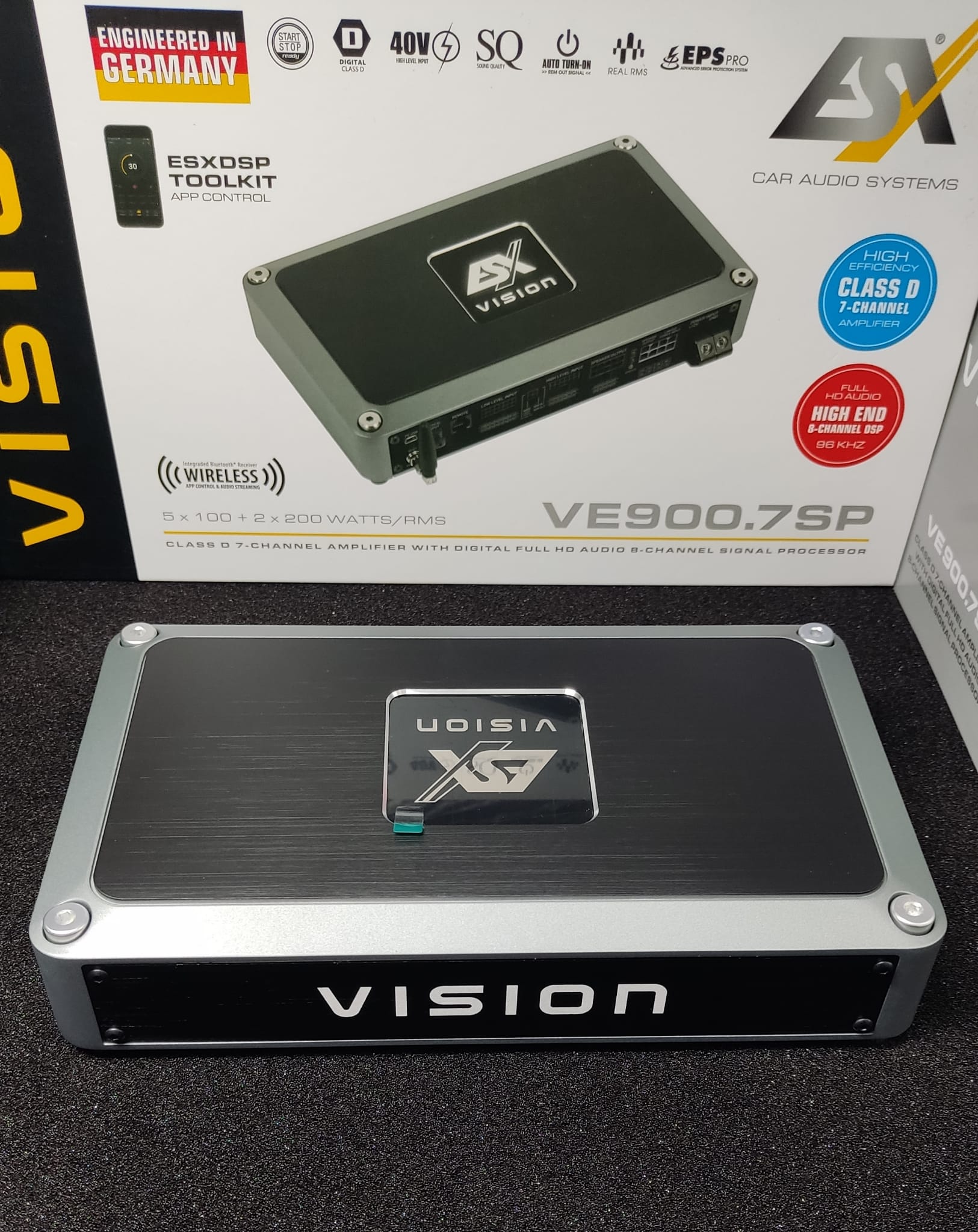

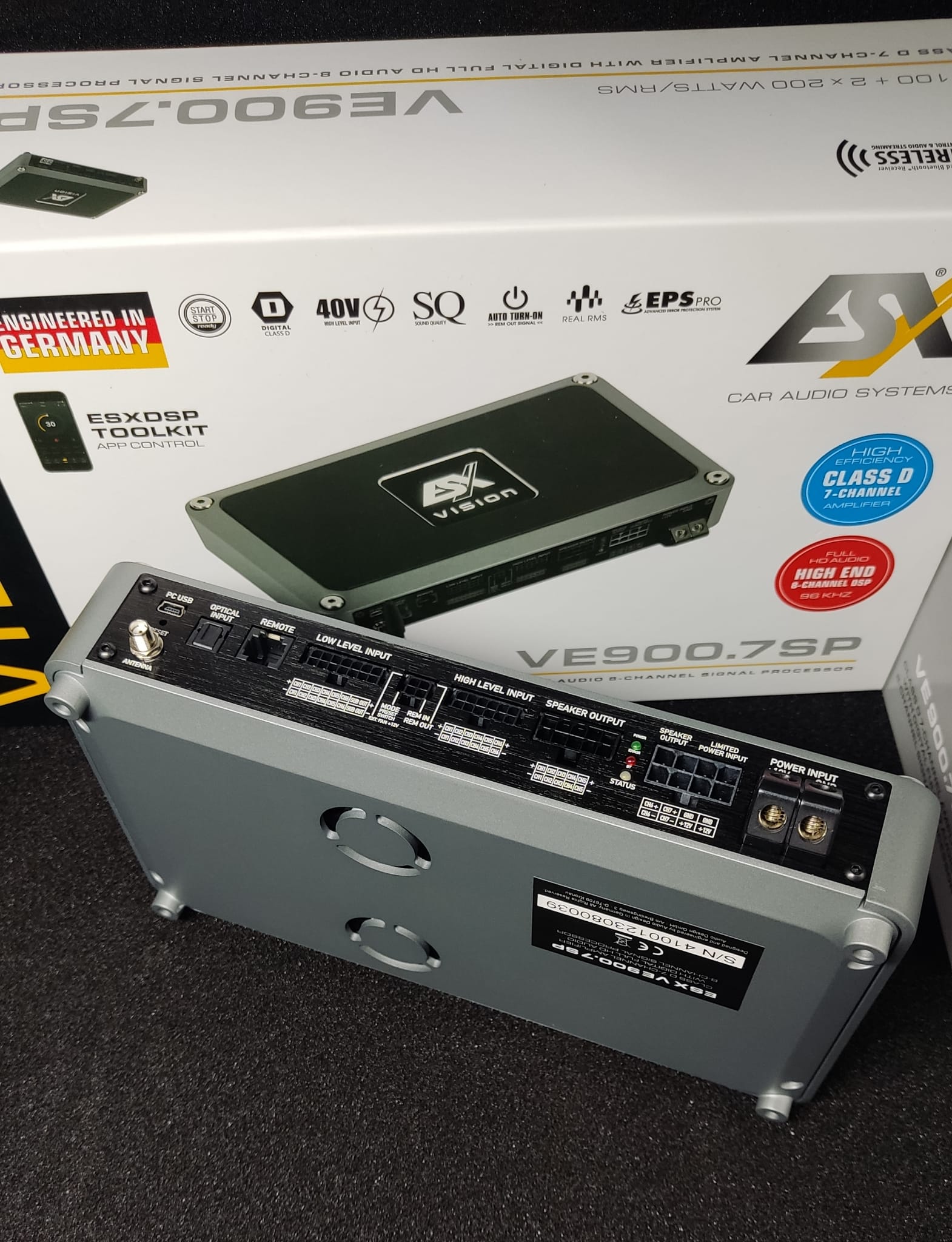

Esx ve-900.7sp
