Feelart eu-165f3

Premium Sound from Northern Europe

Dome tweeter cone effectively decreases distortion.

•Patented design of tweeter phase cone provides precise sound directivity.

•CNC precision basket ensures extremely-low level of distrotion.

•The 6-layer composite paper cone is water-proof, humidity-proof and high temperature resistance， which also provides high •resolution and excellent transient response.

•Patented symmetric driving magnet has great control of its eddy current.

•Kapton voice coin, featured by high temperature resistance, ensures low distortion.

  EU-T1II       EU-MW6II     EU-MW611

Dimenson                           mm            29                 90              165

Loop                                                   1                    1                 1

Frequency Response             Hz      625-30000     106-8000       46-4000

Sensibility                            dB           88                  90              90

Impedance                          Ohm          4                    4                4

Rated Power                         W            50                   50            70

Resonant Frequency            Hz           625                 106            46

Mechanical Quality Factor    QMS         5.73                7.52          7.43

Electric Quality Factor          QES          1.43                0.33         0.29

General Quality Factor         QTS          1.14                0.32         0.28

Equivalent Volume              VAS          0.01L                1L          147.8

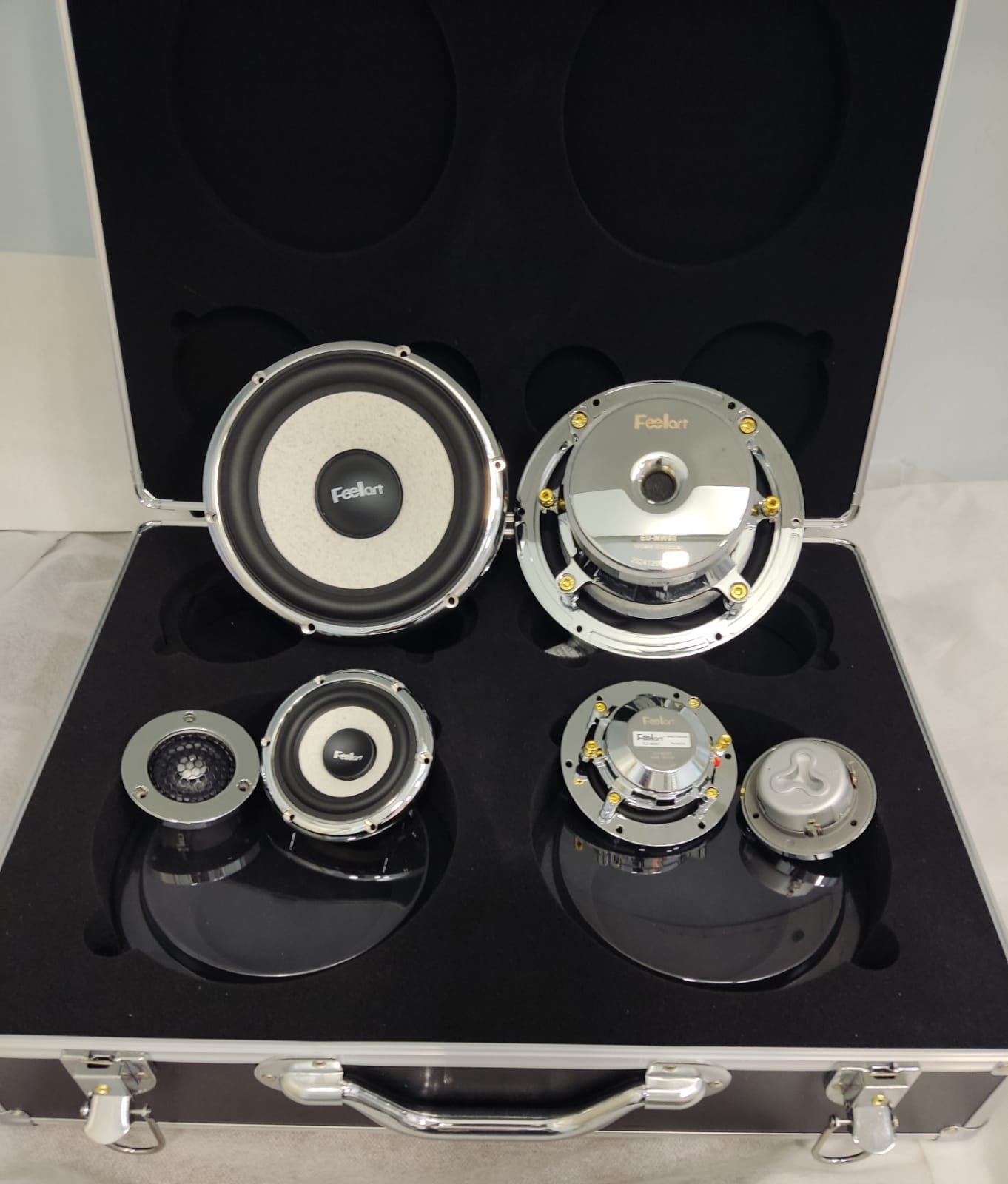

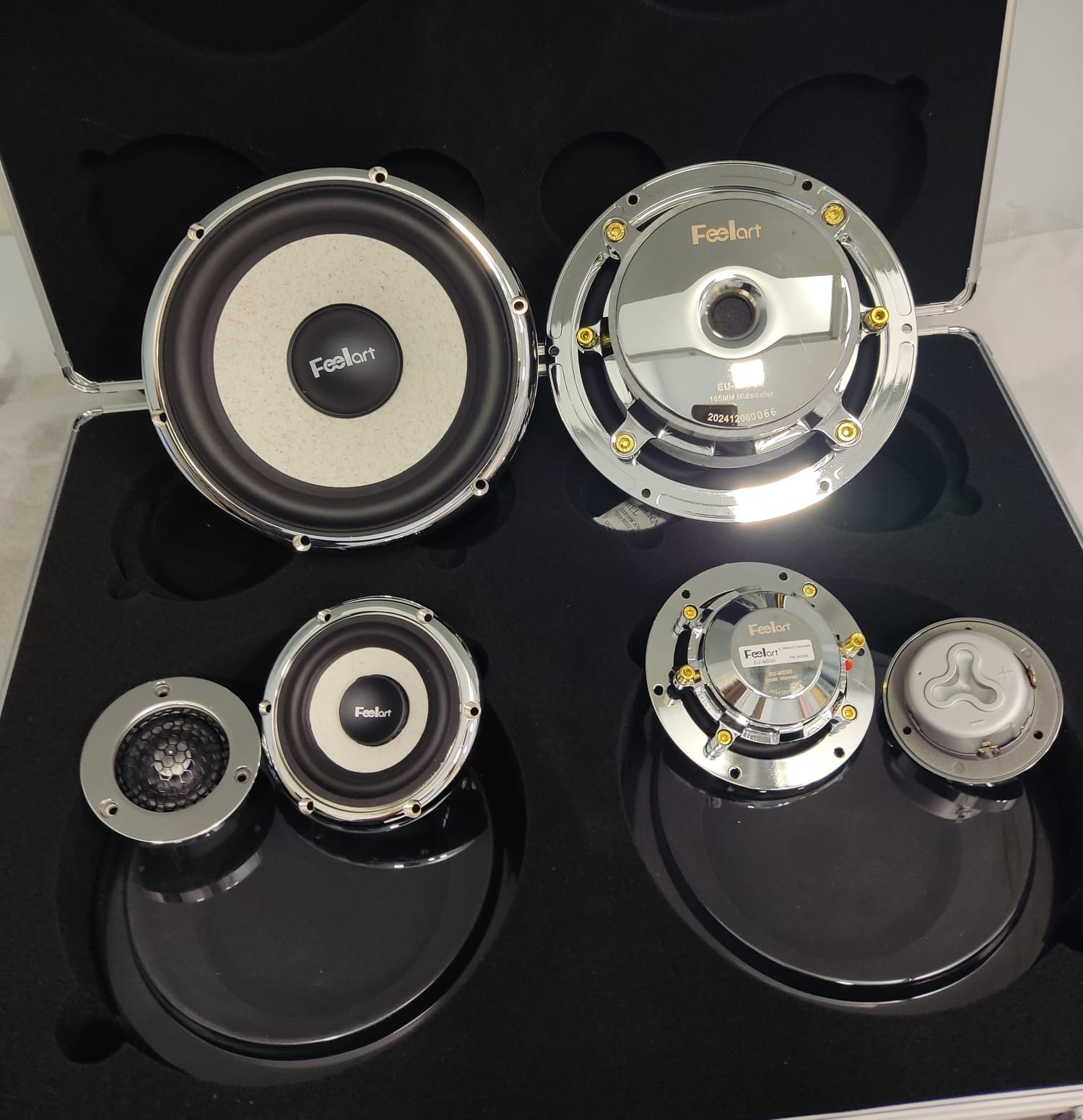

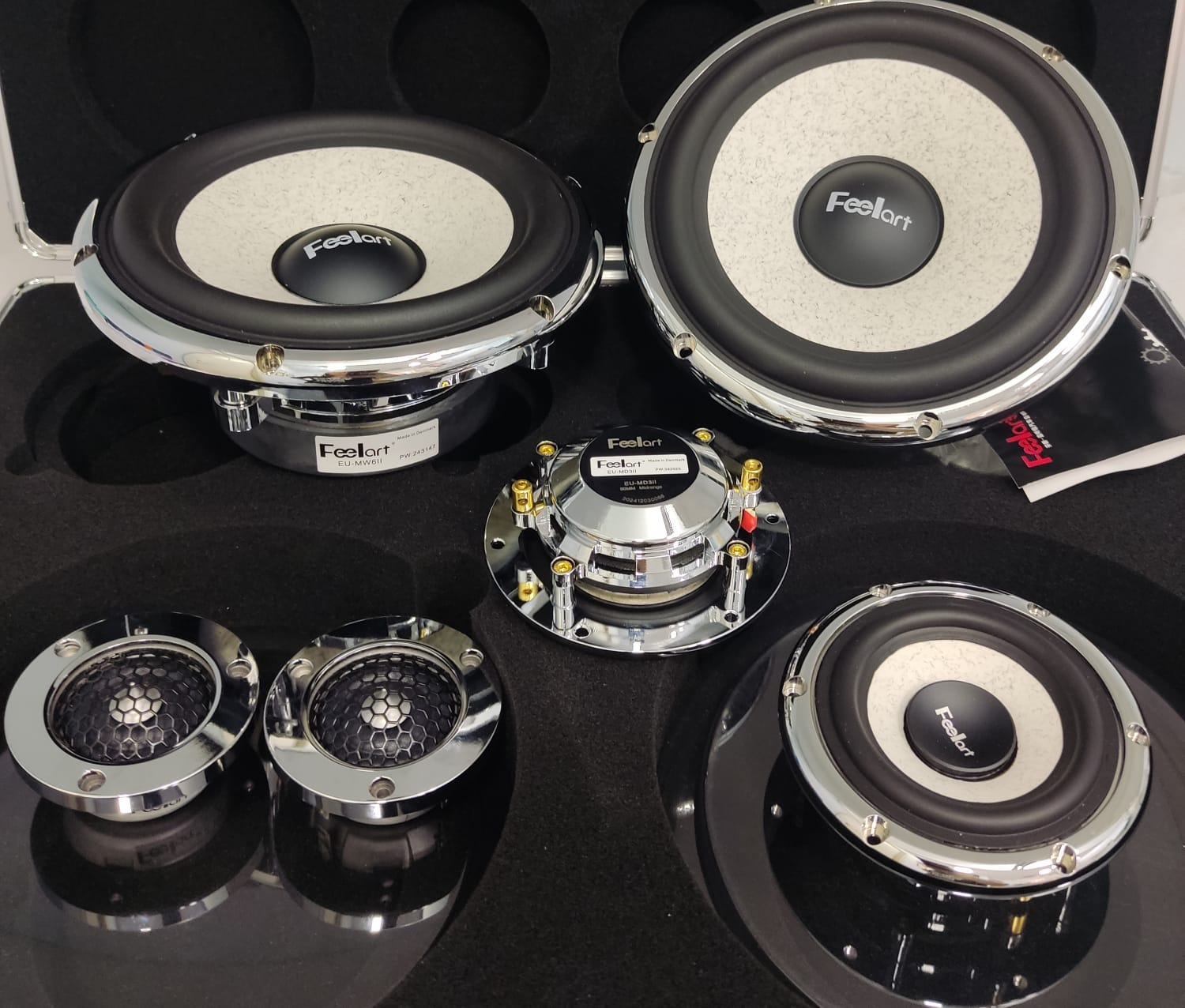

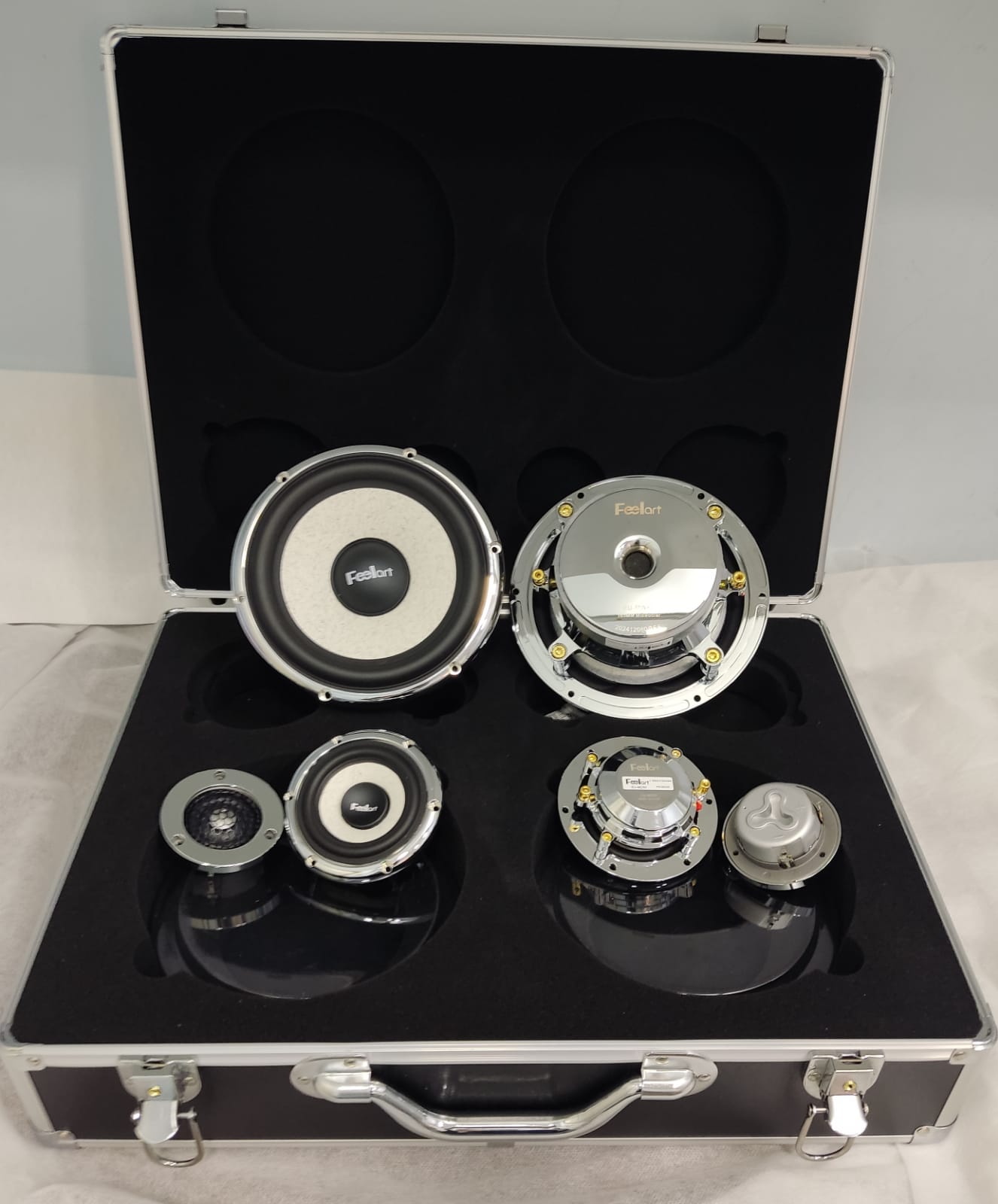

eries                          Premium 6.5 inch 3-way Speaker Component

Rated Impedance         4 Ohms

Rated Power               100W

Sensibility                     90DB

Frequency Response    46Hz-30000Hz

Magnet                      Top level neodymium magnet system

Tweeter   EU-T1II

29mm Dome tweeter, patented phase cone, patented symmetric driving magnet

Midrange  EU-MD3II

90mm  6-layer composite paper cone, low-loss linear suspend，CNC precision basket, patented symmetric driving magnet

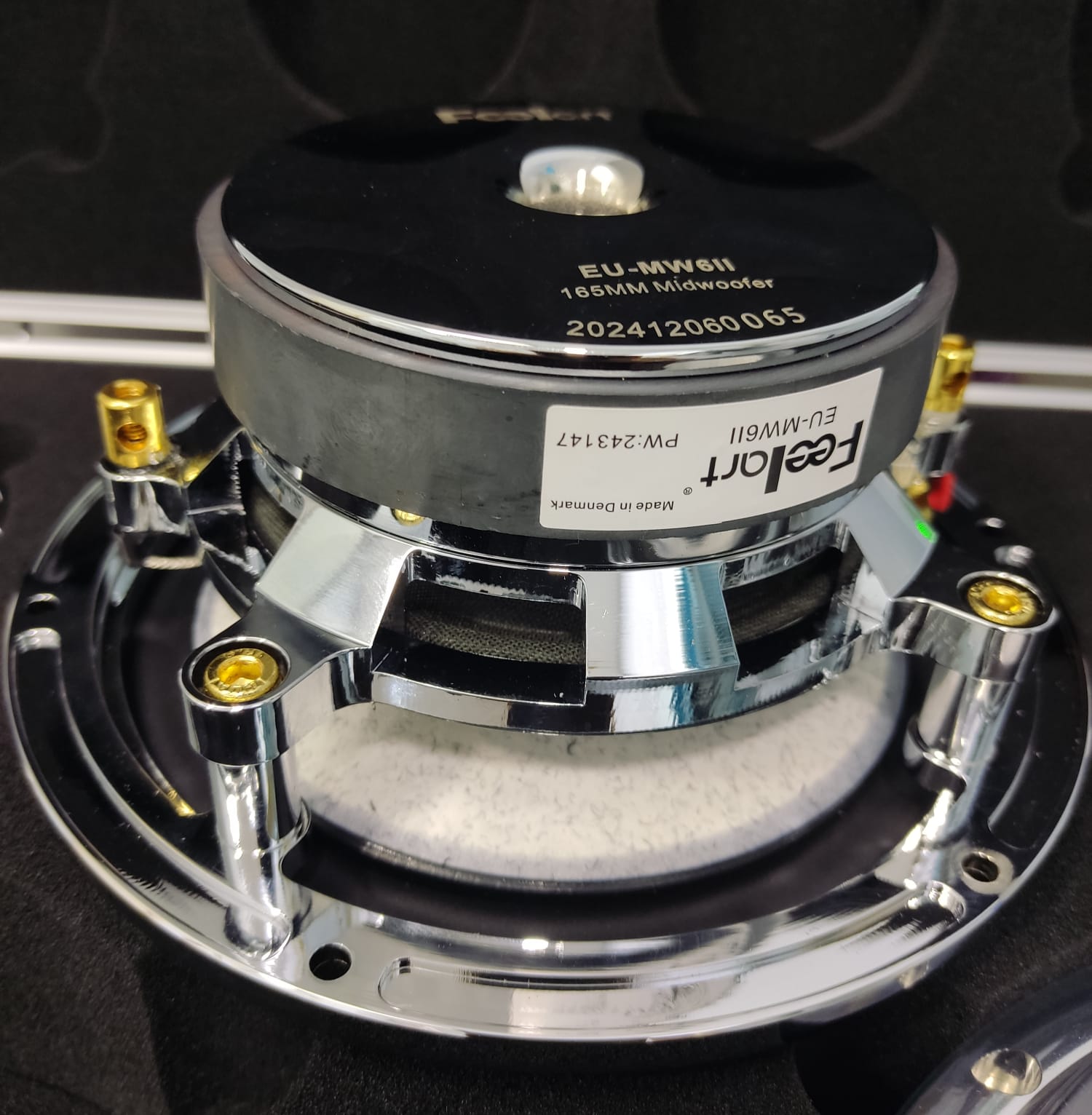

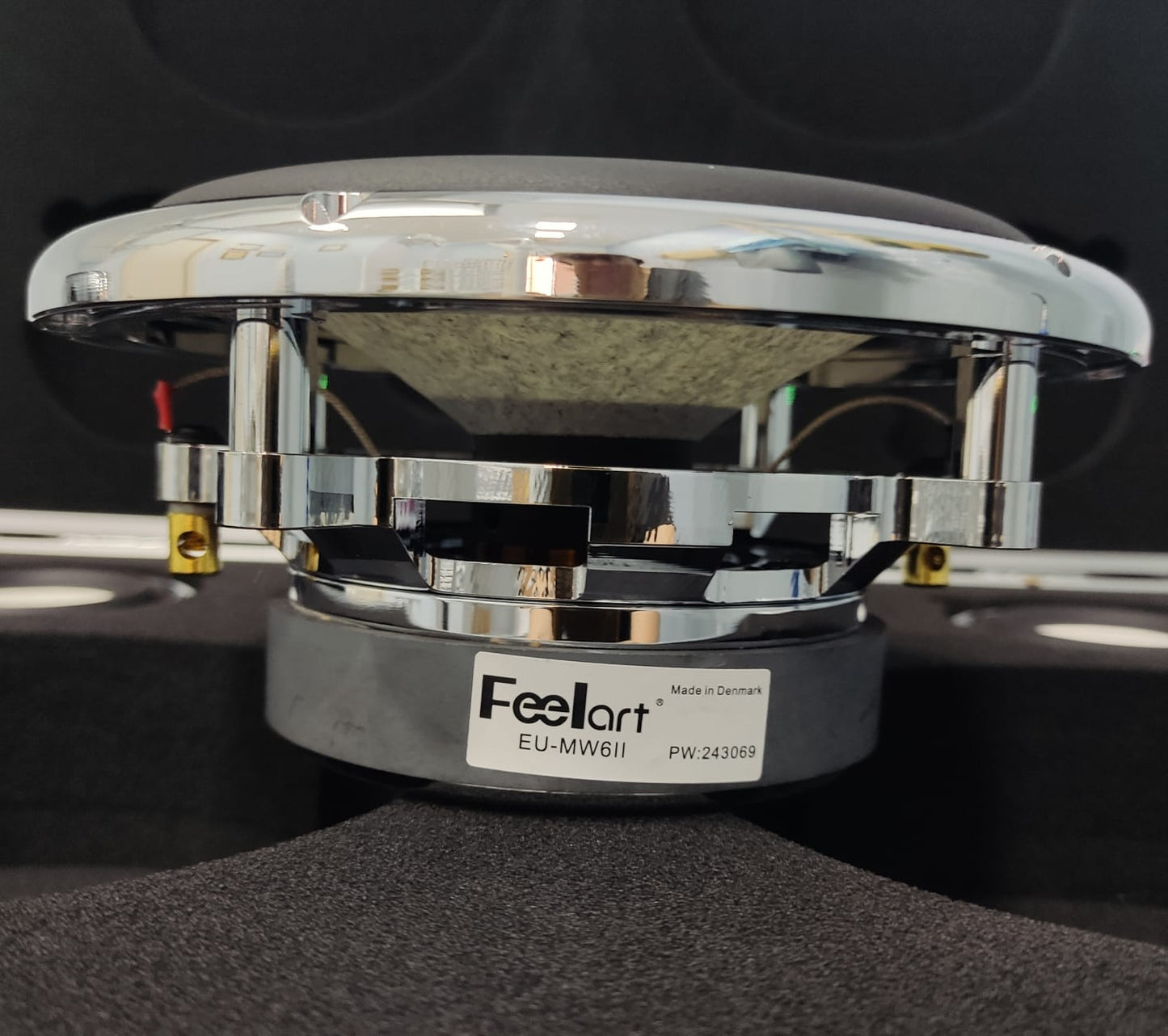

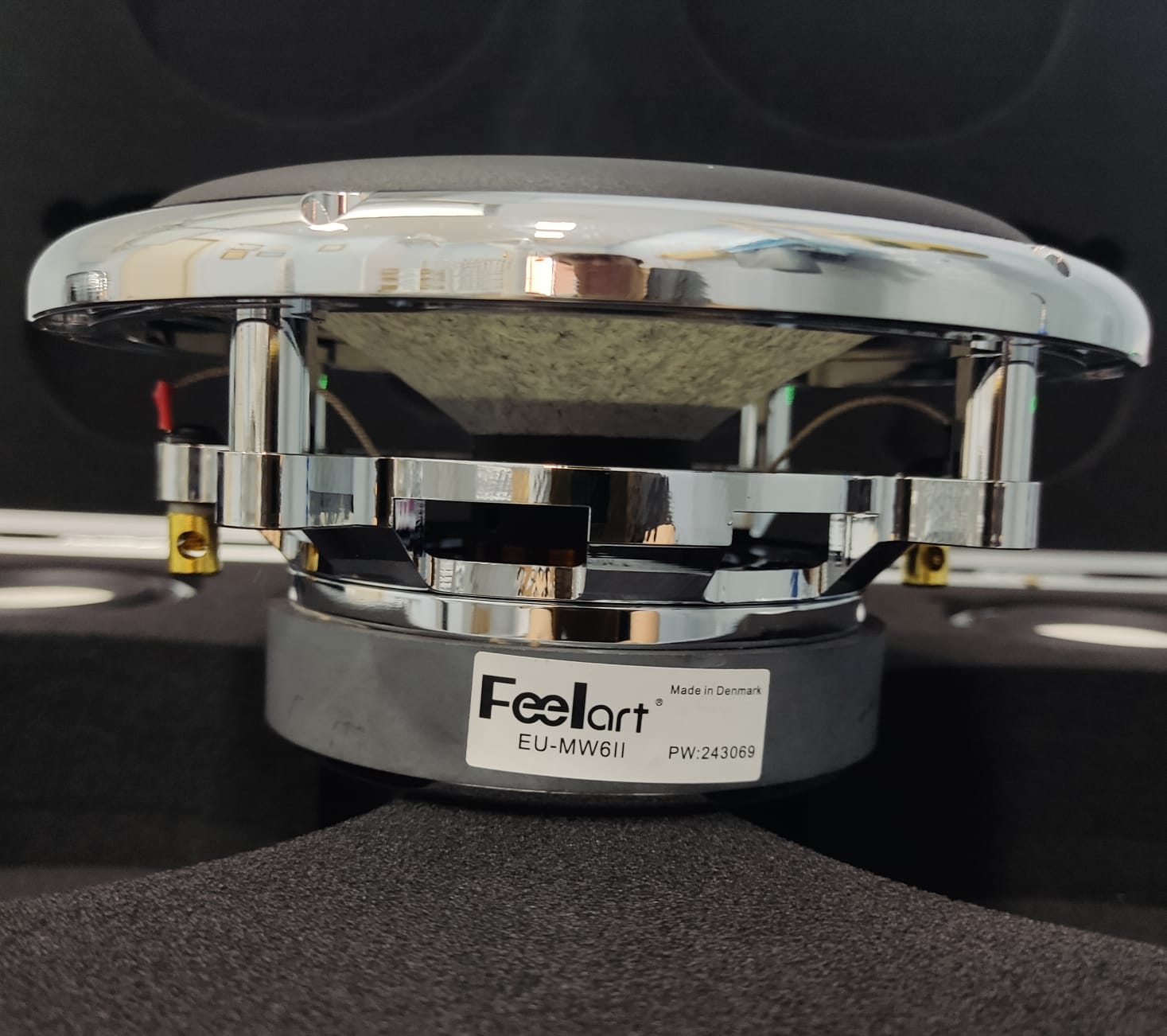

Midbass      EU-MW6II

165mm  6-layer composite paper cone, low-loss linear suspend，CNC precision basket, patented symmetric driving magnet

External Diameter： Tweeter 29mm（1.15inch）/Midrange 90mm（3inch）/ Midbass 165mm（6.5inch）
