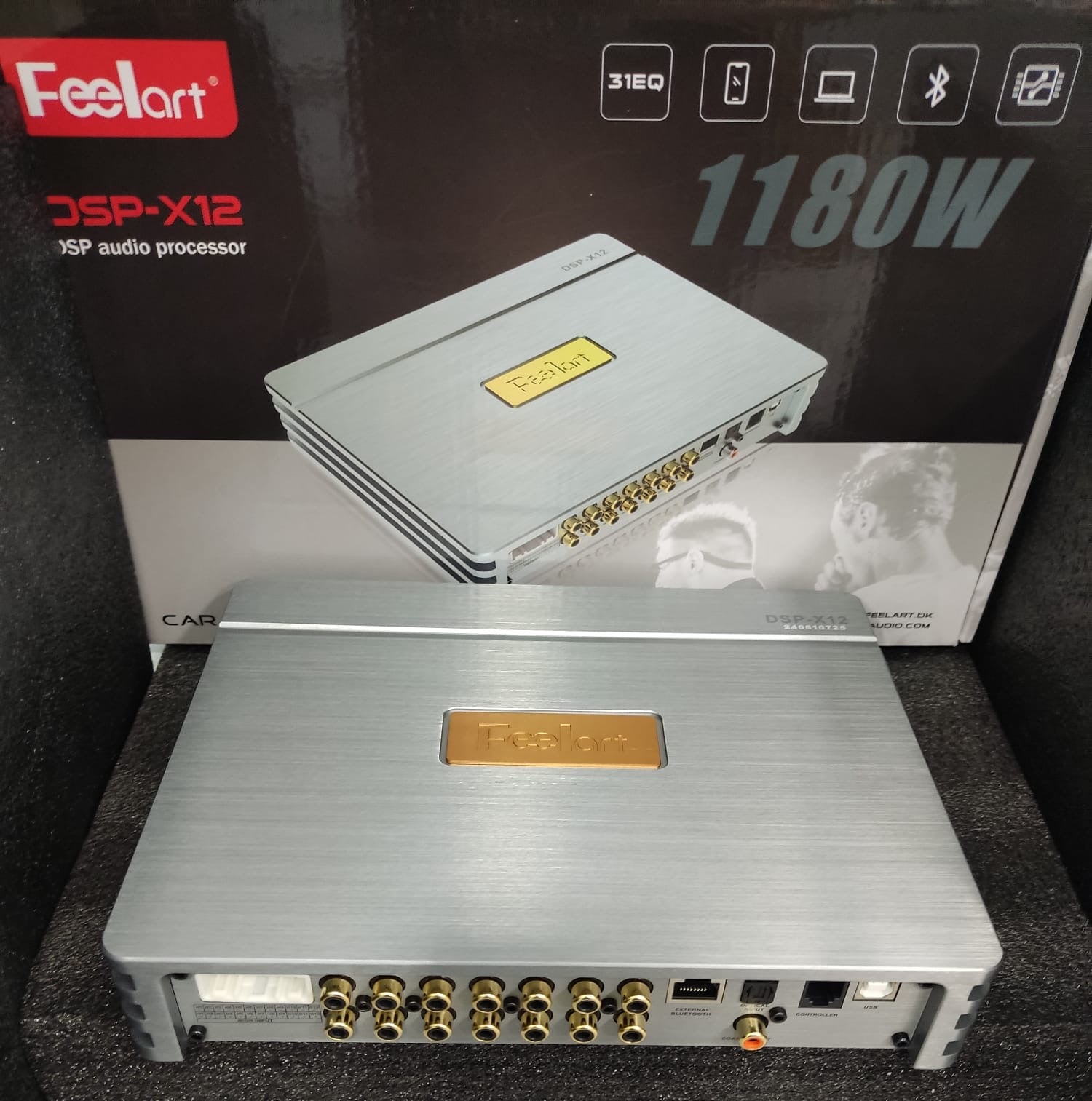

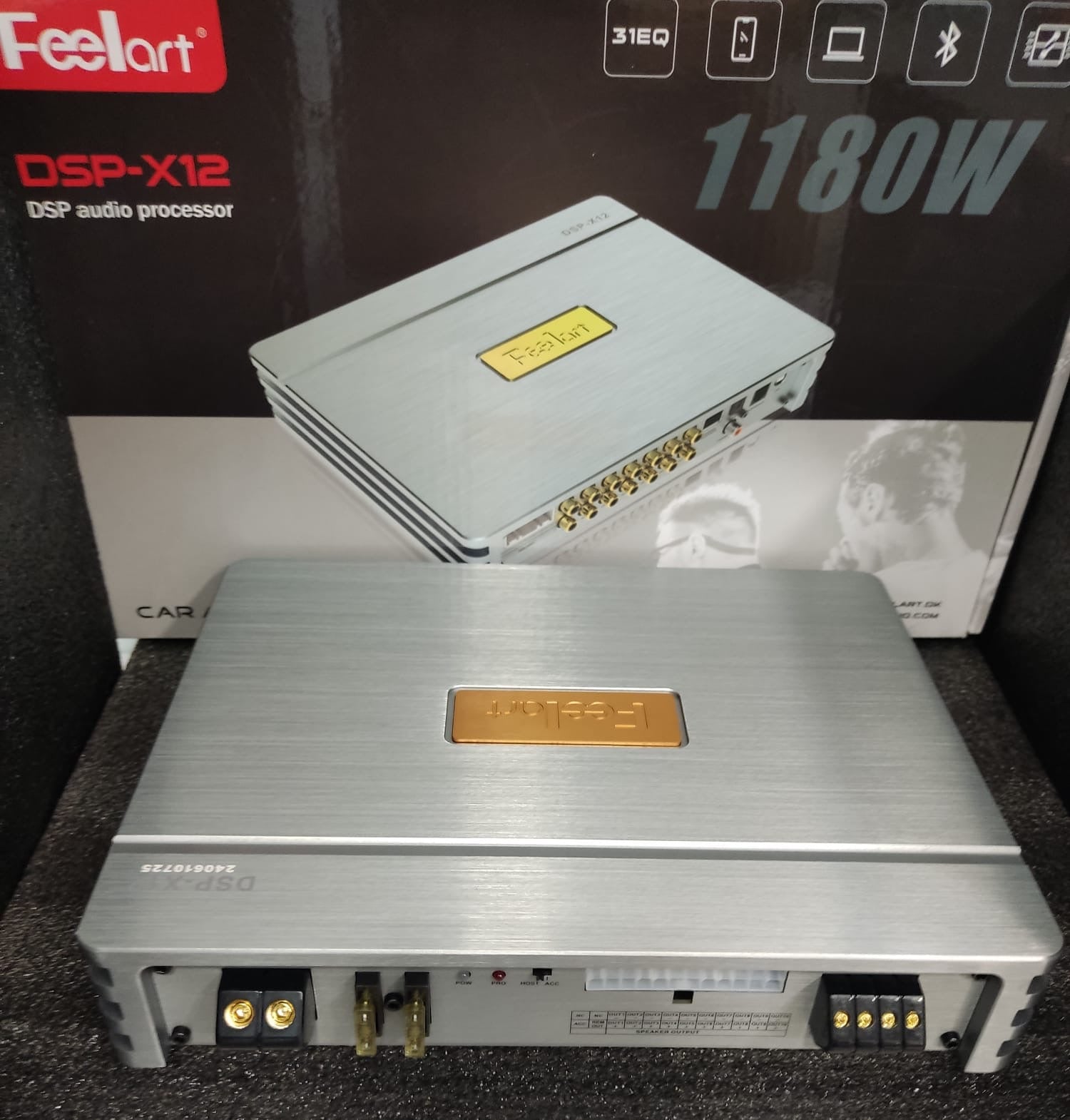

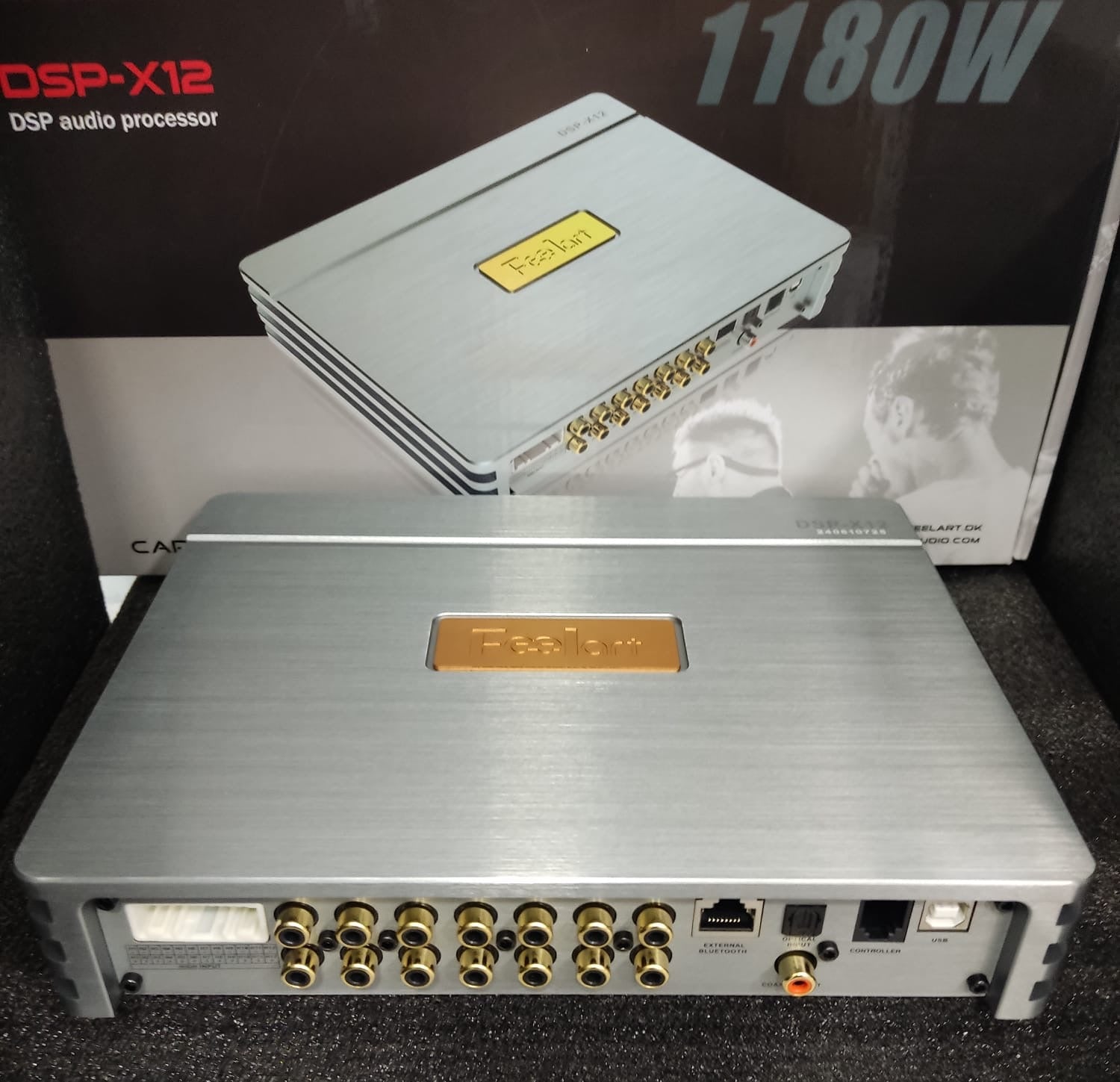

Feelart X-12
Feelart X-12
Couldn't load pickup availability
Lossless Upgrade of 12-channel DSP and 12-channel Power Amplifier System
•Elite- level core：ADI high-order DSP main chip, (Frequency of sample 295M/192KHZ), AKM high-order ADC, DAC independent chip (SINR up to 105DB).
•Excellent audio quality：Adopting the Emperor of Operational Amplifiers JRC5532 and German WIMA Thin Film Capacitors, the sound is gorgeous and the resolution is extremely high.
•16 channels with a total power output of 1680W, meeting the upgrade of luxury models' top equipped multi-loudspeaker system and panoramic sound 7.1.4 channel system.
Technical Data
|
Input signal type |
12 Chanels high-level inputs, 2 Chanels RCA inputs, fiber optic, coaxial,Bluetooth
|
|
Output signal type |
12Chanels high-level outputs （6x50W + 4x120W + 2x200W Max Power）、12 Chanels RCA outputs |
|
S/N Ratio (RCA) |
>105dB |
|
T.H.D |
<0.05% |
|
Freq.Response |
20Hz~ 20KHz |
|
Supply Voltage |
DC 9~ 6V |
|
Power consumption |
<0.1W |
|
Dimension |
246(L) *186(W)*48(H) mm |
