Variable Phase shift at HP and LP filters from 0° ~ 359°
Inputs
8 x Hi / 2 x RCA / BT
Input EQ
EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps
Frequency Resp:
20Hz ~ 40kHz
Operating Voltage
11V ~ 16V
Input Sens (V) RCA
4V
Input Sens (V) Hi
24V
RCA Out Voltage
12 x 4V
RCA Out Specs
THD+ Noise < 0.003 S/N Analog input ⧁ 108dB S/N Digital Input ⧁ 111dB
BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control
Input Mixer
Yes
Presets
8
Software Interface
PC 32bit W7 and up
All Pass filters at input and output EQs
Both 1st Order and 2nd Order
Navigation Mode w/ Input Priority
Yes
Automatic Mode Switching Mixer
Yes
Password Available
Yes
Analog Noise Gate
Yes
Variable Power Off Delay
Yes
Seven DAC rolloff choices for ESS 9038
No

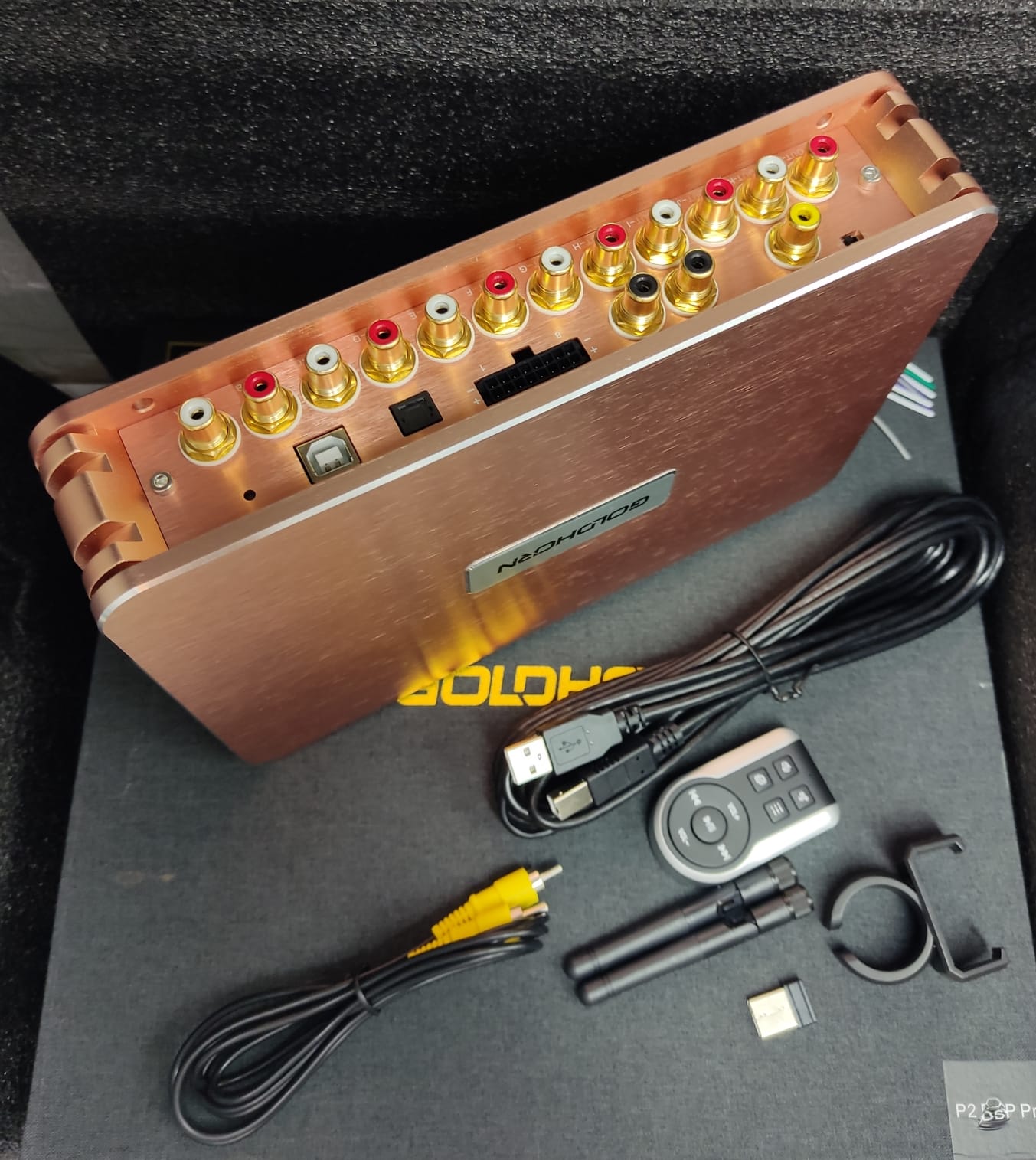

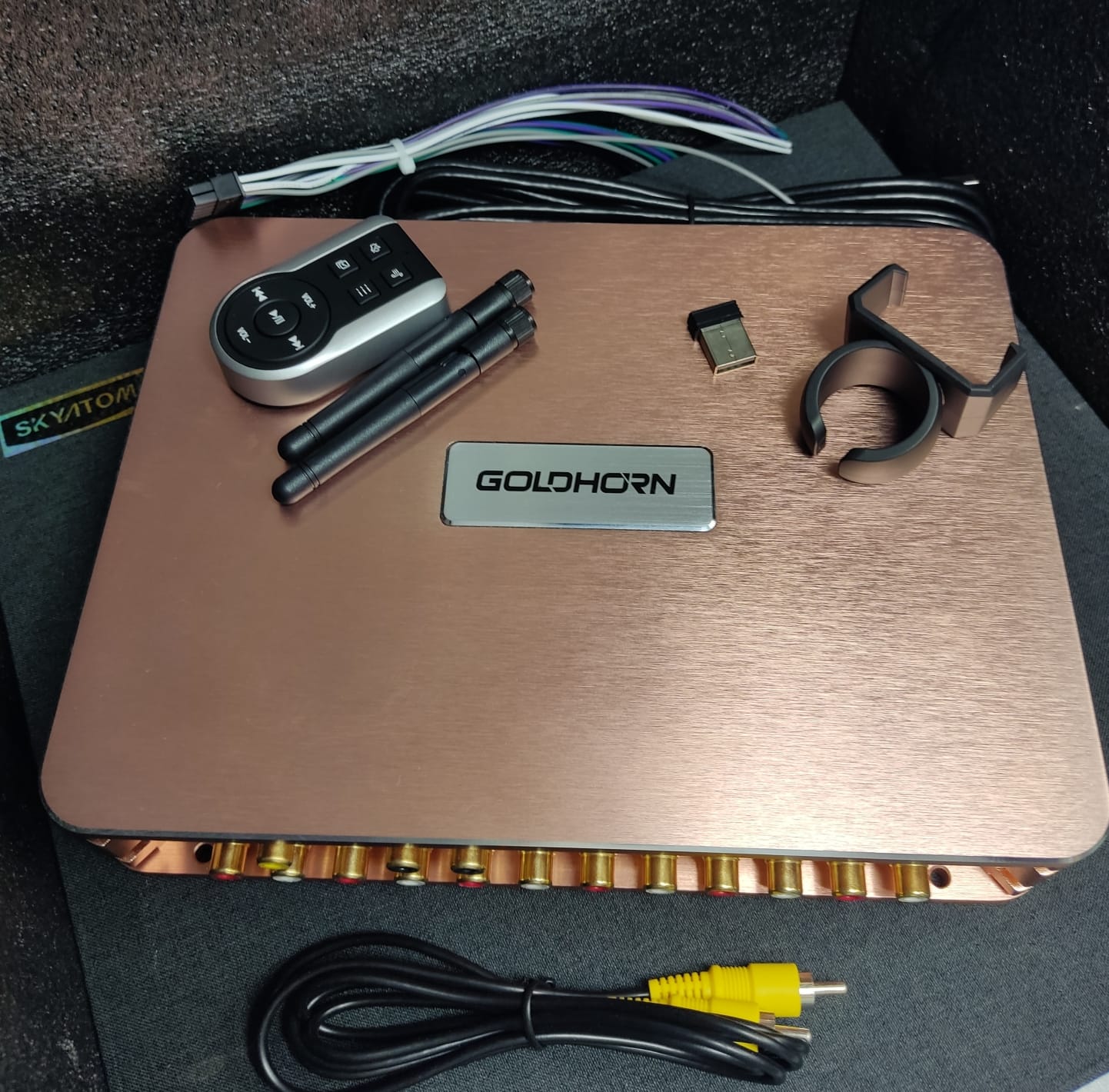

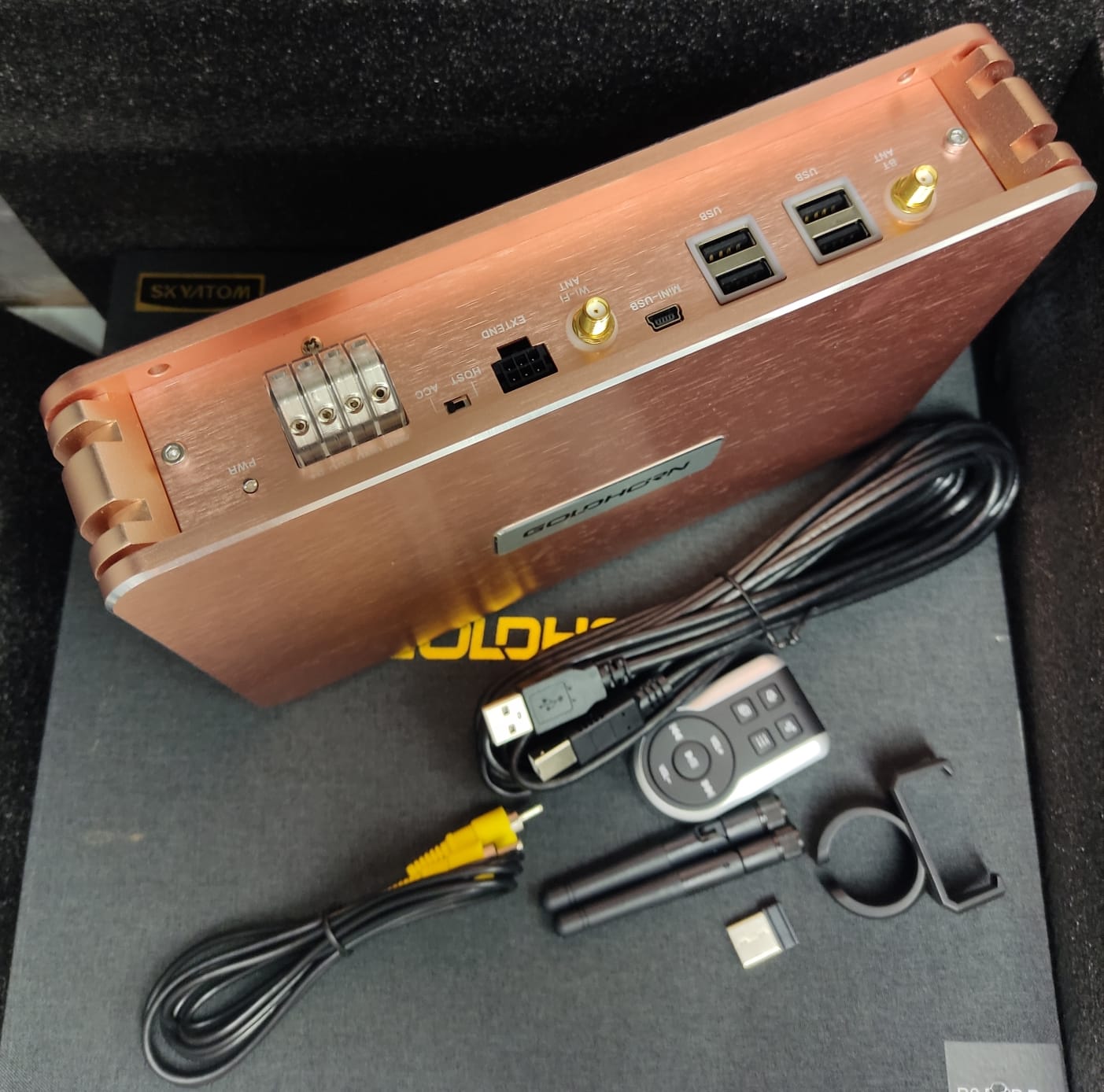

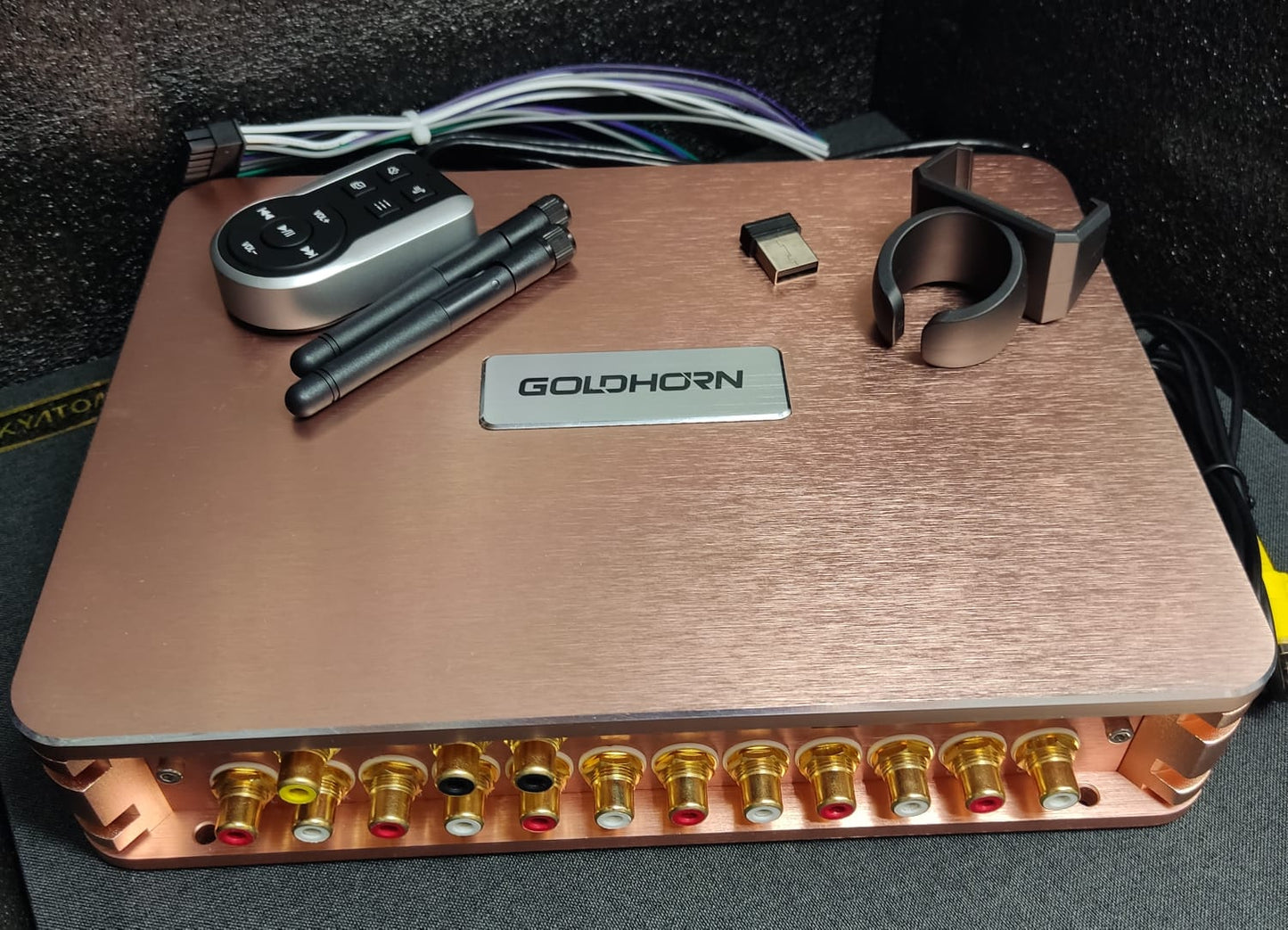

The Goldhorn P2 DSP Pro redefines audio playback quality with its cutting-edge design and technology. It is equipped with six ES9038Q2M DAC chips, ensuring detailed and clear sound across a wide range of audio formats including DFF, DSF, WAV, FLAC, APE, AIFF, and DSD (up to 256). The device features a unique Goldhorn-designed GHA1000 chip, high precision femtosecond clock generators, and a Texas Instruments OPA2604 Operation Amp among other high-end components, guaranteeing stability and quality in audio playback.
In addition to its superior sound technology, the P2 DSP Pro offers flexible connectivity and control. It has 8 high-level inputs, 2 AUX inputs, 1 optical output, and 12 RCA outputs, making it versatile for various audio setups. The integrated professional DSP allows for detailed audio customization, including 31-band EQ adjustments, crossover frequency, and slope settings. Users can easily manage settings through panel control with an IPS display, a wireless digital remote, or an app, ensuring a user-friendly experience. With Bluetooth® 5.0 and WiFi connectivity for lossless streaming, the Goldhorn P2 DSP Pro is ideal for those seeking a top-tier, professional-grade digital player that delivers precision, clarity, and flexibility in audio playback.
