RMS power (4 Ohms), W: 4 x 65
RMS power (2 Ohms), W: 4 x 90
RMS power (4 Ohm / bridge), W: 2 x 180
Frequency range, Hz: 10 - 50,000
OIG,%: 0.02
Signal to noise ratio, dB: 108
Input sensitivity, V: 1 - 6 / 2.5 - 14
Modes of crossover for channels 1 - 2: HPF / Full
Modes of crossover for channels 3 - 4: HPF / Full / LPF
High Pass Filter for channels 1 - 2: 15 - 4000 Hz, 12 dB / oct.
High Pass Filter for channels 3 - 4: 15 - 4000 Hz, 12 dB / oct.
Low pass filter for channels 3 - 4: 40 - 4000 Hz, 12 dB / oct.
Bass boost for channels 3 - 4 dB: 0 ... + 12 for 45 Hz

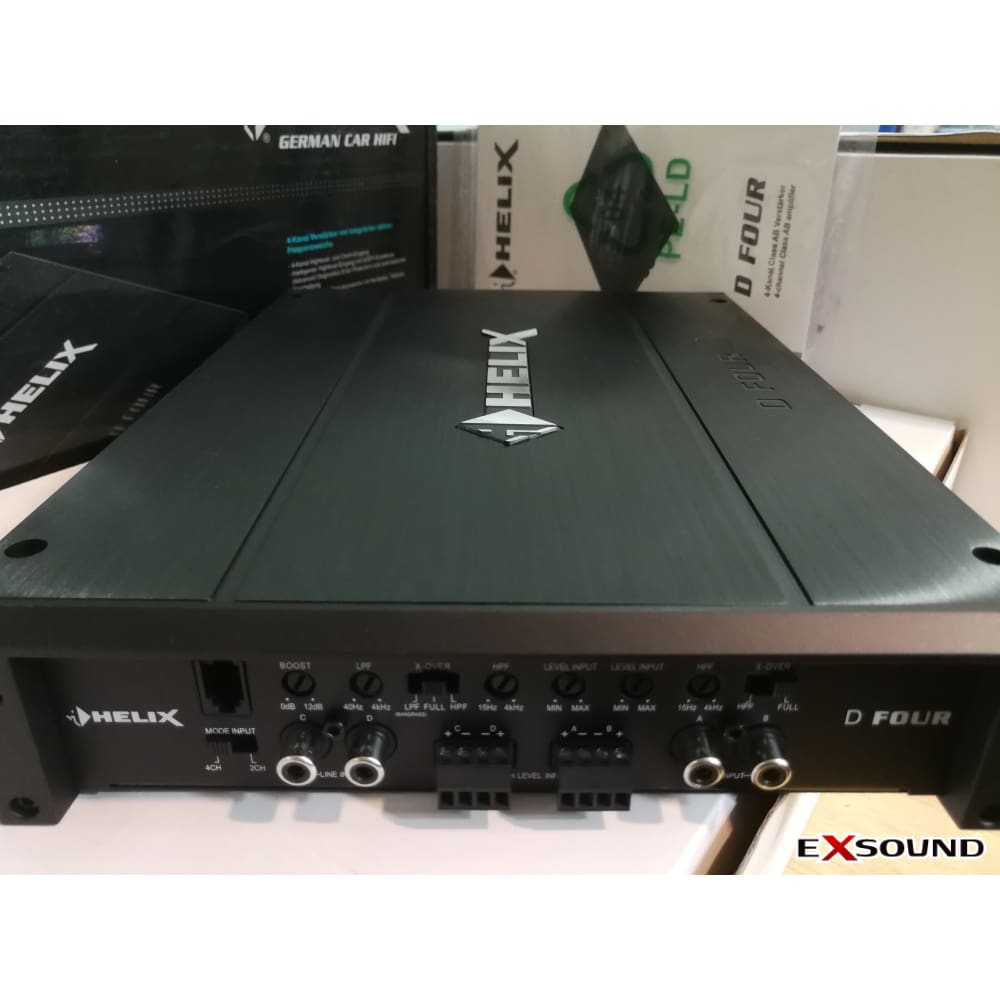

RCA inputs
High level inputs
Automatic switch on when a high level input signal appears
Remote level control for channels 3 - 4
Mode switch operation input "2 channels / 4 channels"
Protection when the supply voltage is outside the operating range, from short-circuiting the outputs and from overheating
Power supply, V: 9.6 - 16
Fuse, A: 2 x 25
Dimensions, mm: 53 x 320 x 230
