Extremely powerful 64-bit digital audio processor with fixed-point operations and 1.2 billion MAC operations per second

High-resolution audio with a bandwidth of more than 40 kHz for unrivaled sound quality

ACO (Advanced CoProcessor) - an improved 32-bit co-processor for all control and communication tasks:

10 internal memory positions for sound settings

Switch settings in milliseconds

High-speed data transfer and improved usability

HELIX Extension Card (HEC) expansion card slot for additional modules

Smart high-level input with APED.3 circuit and auto power on function

Compatible with Start-Stop systems with a voltage drop of up to 6 volts

Unique DSP sound effects such as: "Augmented Bass Processing", which dynamically optimizes the subwoofer bass; "StageXpander, which significantly expands the stereo spectrum;" RealCenter ", which allows you to perfectly focus the sound, both for the driver and for the next passenger, and many others.

Optimized signal paths and power to improve sound quality

Ground lift switch to avoid a ground loop

Very compact dimensions for easy integration into transport

Easy setup via DSP PC-Tool V4 software

Specification:

Inputs:

4 x RCA / Cinch

4 x high level

1 x optical SPDIF (12-96 kHz sampling)

1 x remote power on

Input sensitivity:

RCA / Cinch 2 - 4 Volts

High Level 5 - 11 Volts

Outputs:

6 x RCA / Cinch

1 x remote power on

Output Voltage: 4 Volts

Frequency range: 10 Hz - 44000 Hz

DSP resolution: 64 bit

DSP processor speed: 295 MHz

Sampling rate: 96 kHz

Signal converter:

ADC: Asahi Kasei

DAC: Asahi Kasei

Signal-to-noise digital input: 106 dB (A-weighted)

Signal to noise ratio analog input: 103 dB (A-weighted)

Harmonic Distortion (OIG + Noise) Digital Input: <0.001%

Harmonic distortion factor (KGI + noise) analog input: <0,002%

IM input digital input distortion: <0.004%

IM-distortion analog input: <0.004%

Channel interference:> 90 dB

Power supply: 9.6 - 18 volts, maybe 5 seconds. reduction to 6 volts

Current consumption: <400 mA

Dimensions (H x W x D): 40 x 177 x 104 mm

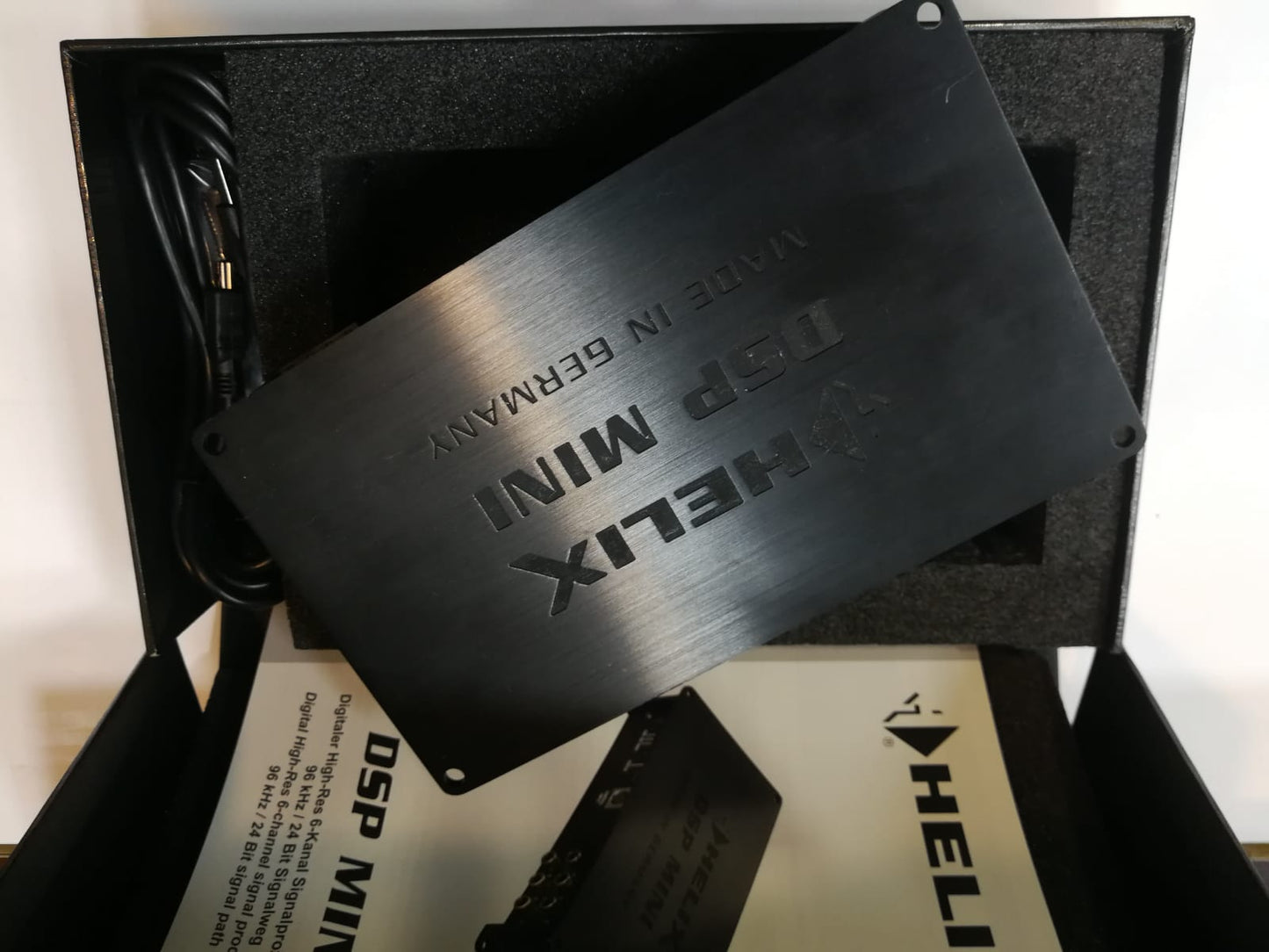

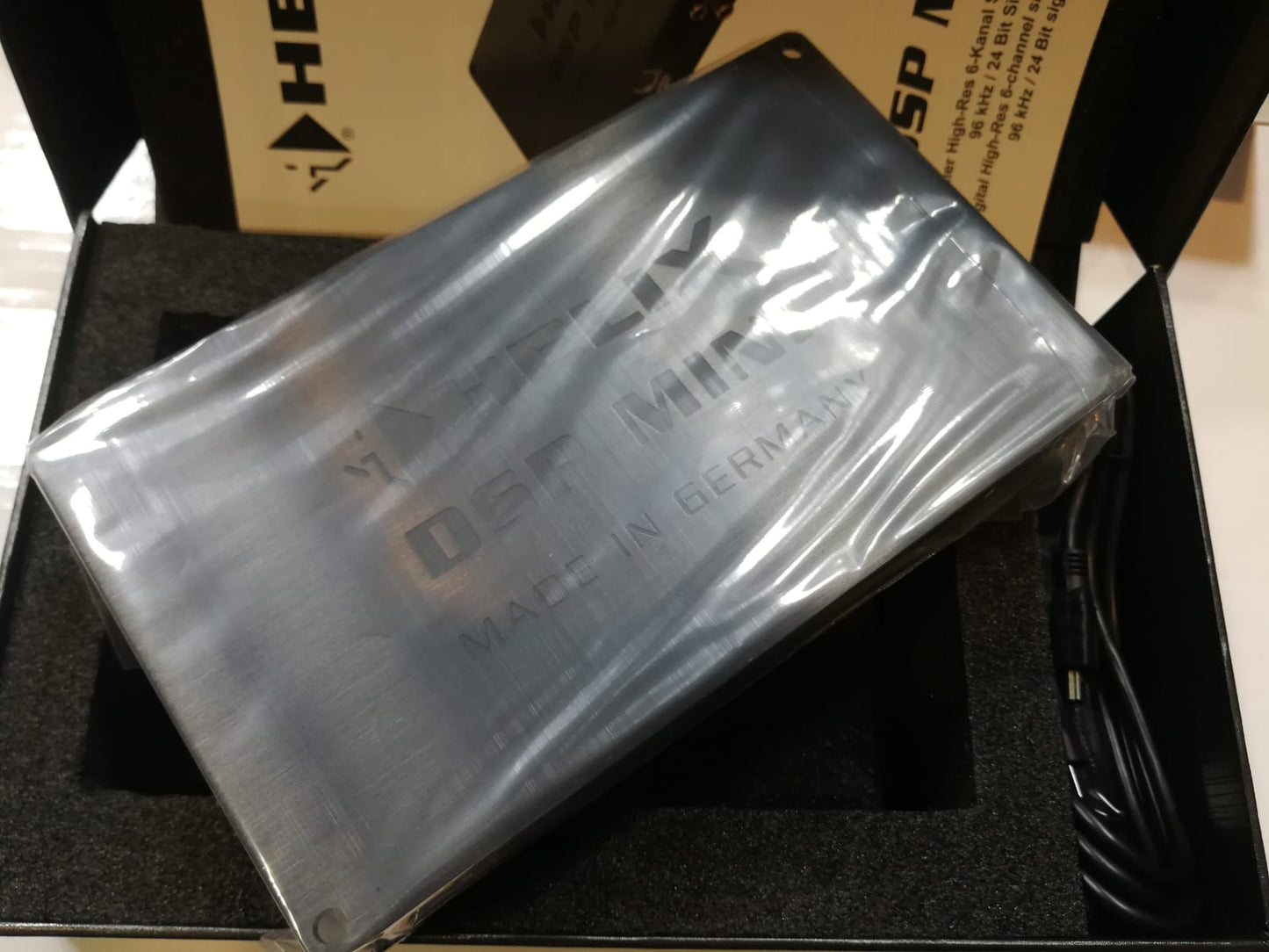

Helix dsp mini
