Output power RMS / max.
- @ 4 Ohms 4 x 100 / 200 Watts
- @ 2 Ohms 4 x 100 / 200 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms 2 x 200 / 400 Watts
- bridged @ 2 Ohms
Max. output power per channel* Up to 135 Watts RMS @ 2 Ohms
Amplifier technology Class D
Inputs 4 x RCA / Cinch
4 x Highlevel speaker input
1 x Remote In
Input sensitivity RCA / Cinch 0.5 - 6 Volts
Highlevel 1.3 - 13 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel 13 Ohms
Outputs 4 x Speaker output
Output voltage RCA / Cinch
Signal converter for digital input
Frequency response 10 Hz - 30,000 Hz
Bass boost
Highpass 15 Hz - 4,000 Hz adjustable
Lowpass 40 Hz - 4,000 Hz adjustable
Bandpass 15 Hz - 4,000 Hz adjustable
Subsonic
Phase
Slope high- / lowpass 12 dB/Oct.
Slope subsonic / lowpass
Signal-to-noise ratio digital input
Signal-to-noise ratio analog input 98 dB (A-weighted)
Distortion (THD) 0.05 %
Damping factor 100
Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 1,100 mA
Fuse 2 x 30 A Maxi-fuse (APX)
Additional features Active, adjustable crossover, input mode switch, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP)
Dimensions (H x W x D) 50 x 230 x 154 mm /
2.00 x 9.06 x 6.06”

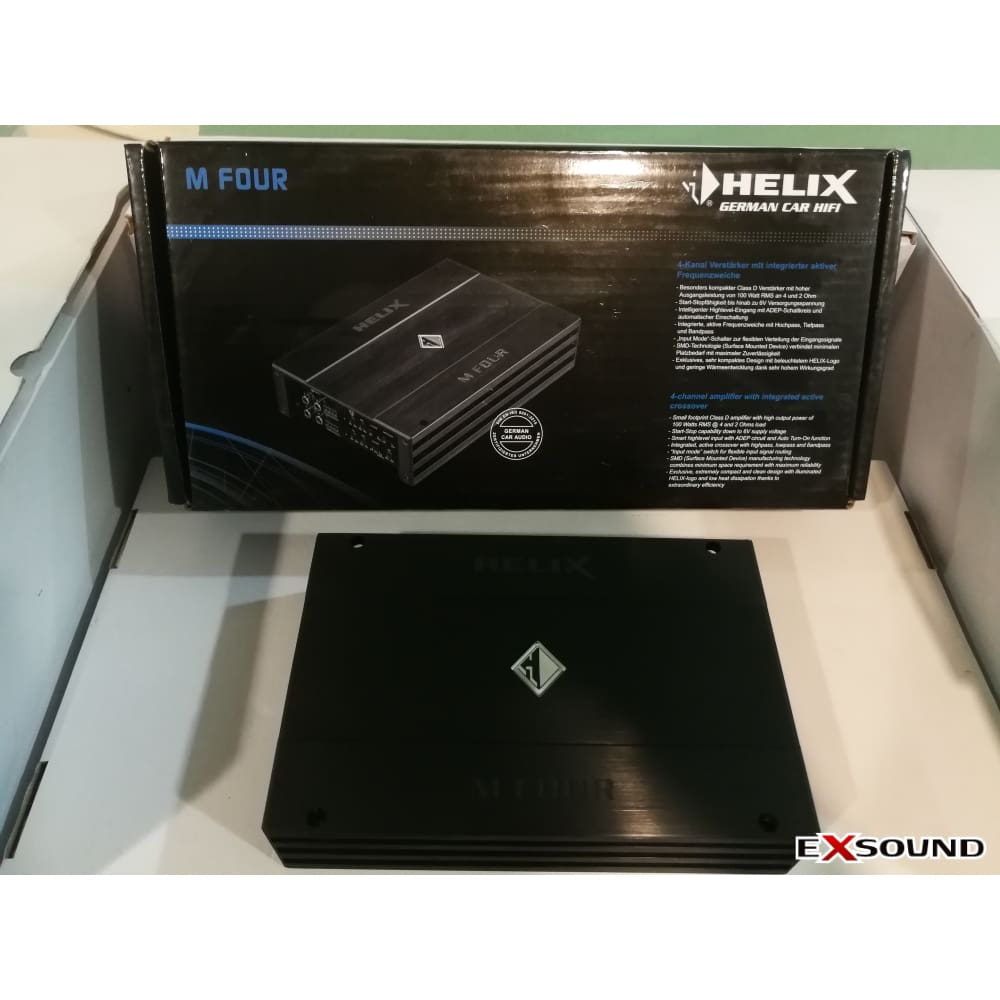

HELIX M FOUR
