• Number of channels: 6

• 4Ω: CH 1 - 6 125W x 6

• 2Ω: CH 1 - 6 200W x 6

• 4Ω: Bridged 400W x 3

• RMS total power (sum of rated power): 1200W

• Bridgeable: Yes

• Crossover mode, Linkwitz-Riley: FULL/HP/LP

• 40Hz - 500Hz @ 12dB / Oct

• input selection 0.4-10V

• Signal-to-noise ratio (@CEA standard): >100dB

• Frequency response: Full range 10-40k

• Topology class: D

• Heatsink type: Extruded aluminum

• Type of cooling: radiation

• Operating voltage: 8V to 16V
• Switchable automatic switch-on: No

• Power supply type: Unregulated

• Power connections: 20mm² Quick Connect

• Speaker connection: 10mm² quick connection

• Recommended inline fuse: 80A

• Dimensions (L x W x H): 344mm x 165mm x 51.5mm

• Audiophile full-range Class-D amplifier - precision components and operational amplifiers to improve sound quality and reduce distortion
• High and low pass crossovers - Reduces the need for external processing that could lead to noise
• High-level input - for easy OEM integration - can accept input sources from most OEM radios (requires X2LINE)
• Selectable balanced/unbalanced inputs - Matching input types enable the best possible signal transmission and the lowest noise
• Surface-Mount Component Technology - Precision manufacturing process ensures reliability and strict quality control
• Multi-Input Selector - Allows the amplifier to use the signal from a channel pair to drive multiple channels without an adapter
• Proprietary PG Quick Connects - Enables high power transfer while improving ease of installation and maintenance
• Flush-mount bass control - Remote-controlled bass control for easy level adjustment, paired with individual installation options for ergonomic placement
• Full Radiation Heat Sink - The computer-designed heat sink uses the entire chassis to cool the head while reducing the size of the amplifier and operating temperatures
• Rotating plaque - The plaque can be rotated to allow for more custom mounting options while maintaining aesthetics

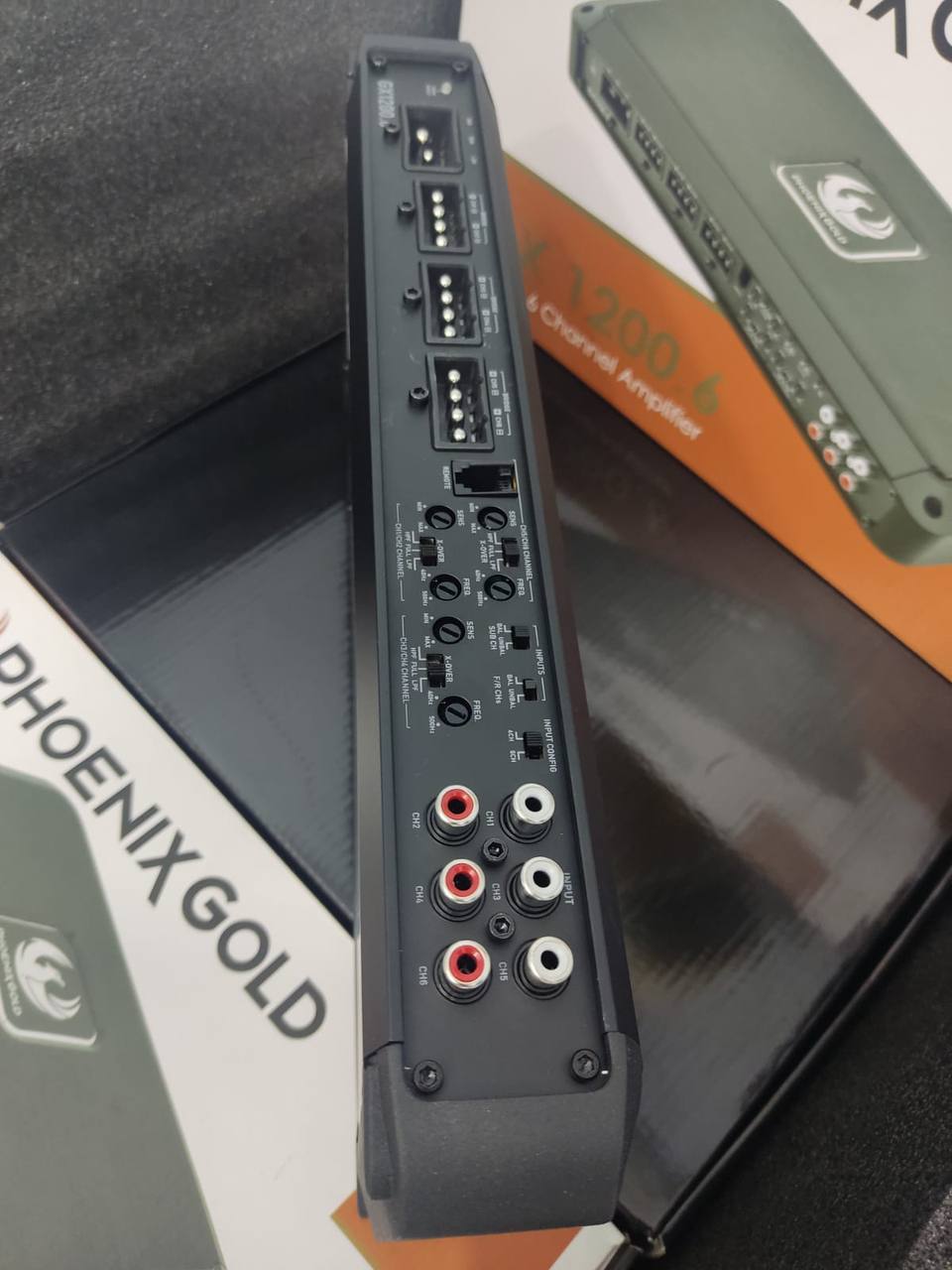

• Single-Sided Control Panel - Increased installation speed, system settings and mounting options through the use of single-sided amplifier controls and connectors
• Integrated short circuit/thermal/impedance protection - Designed for system reliability and fault protection against thermal overload, short circuits and low impedance

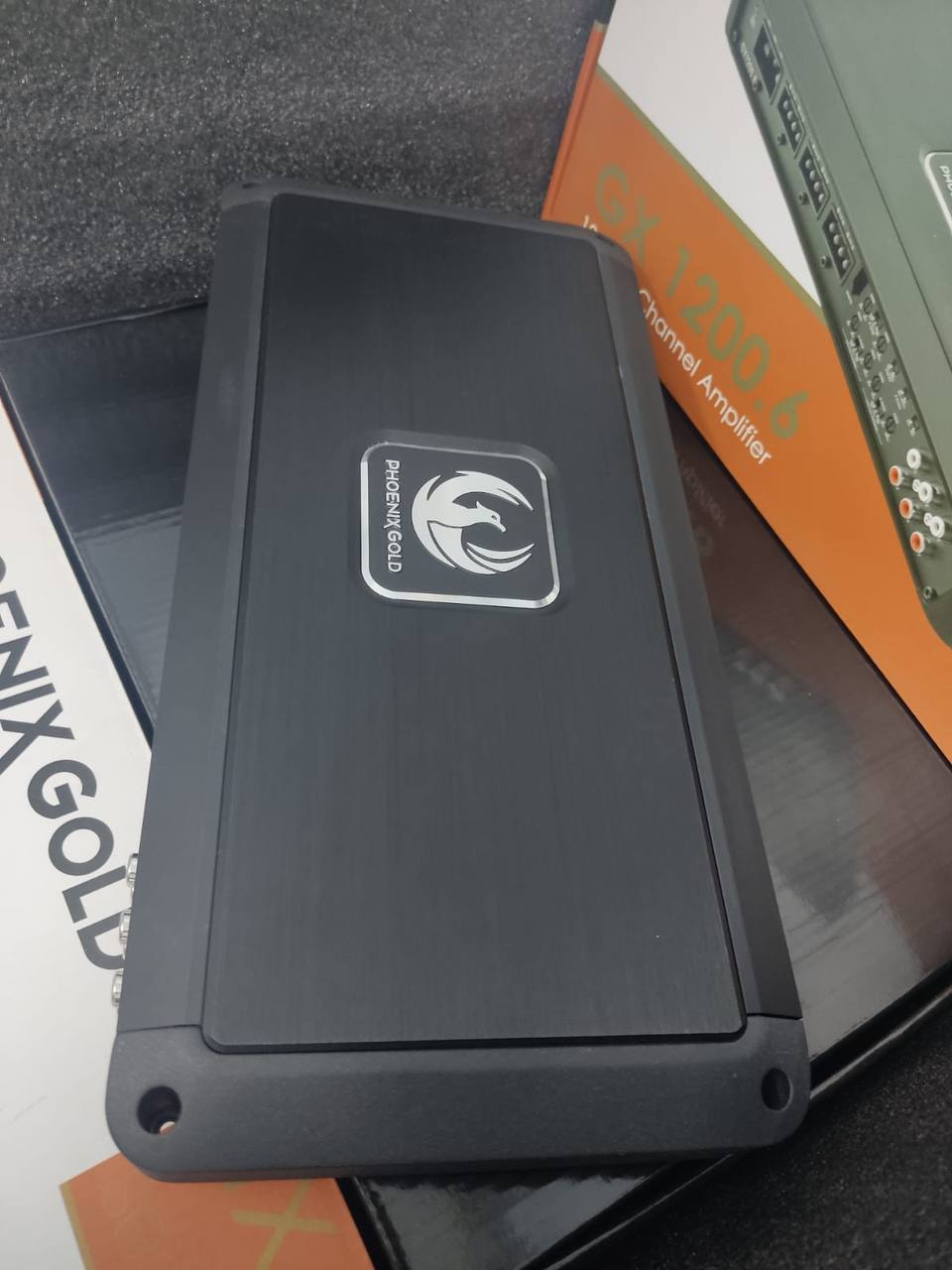

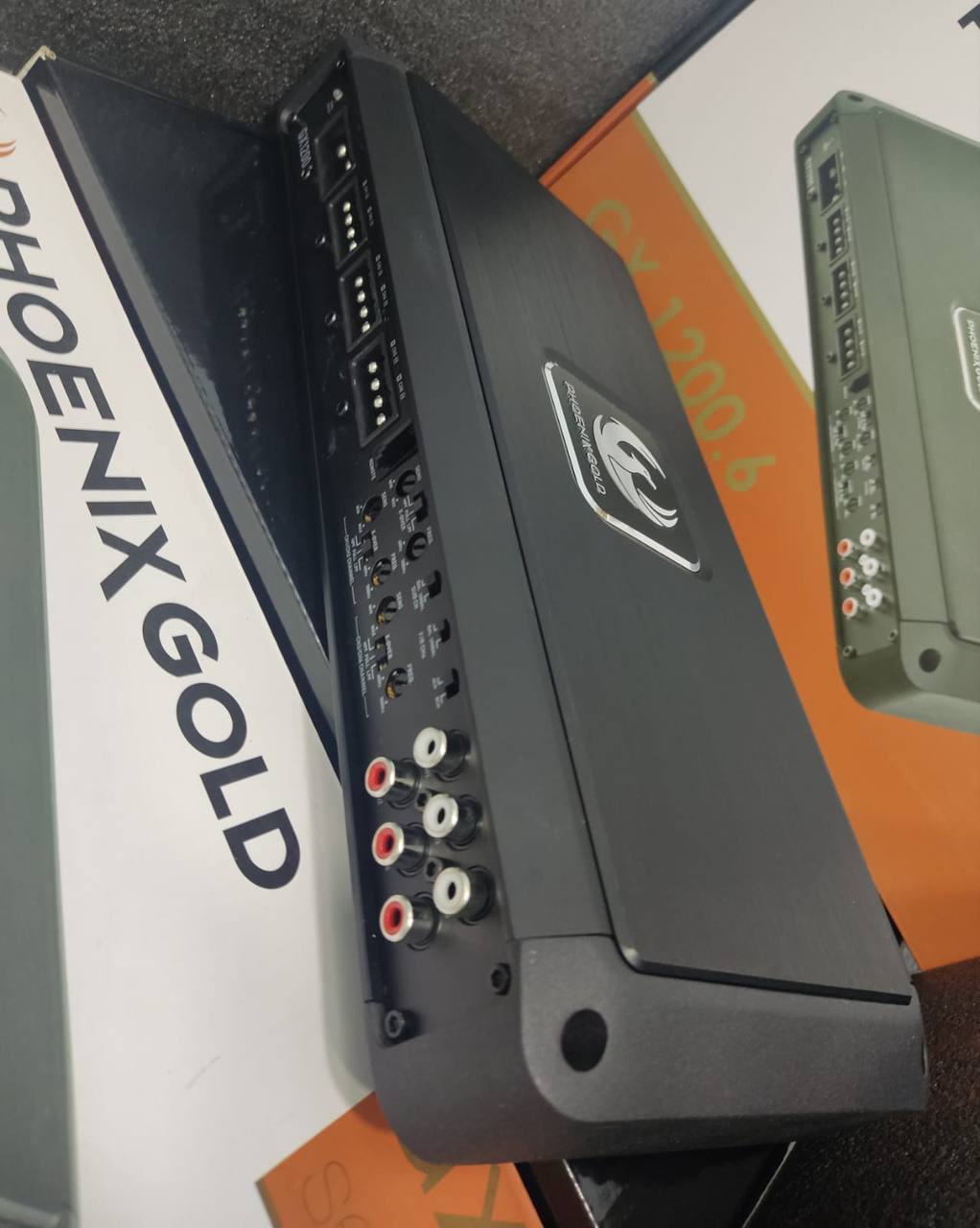

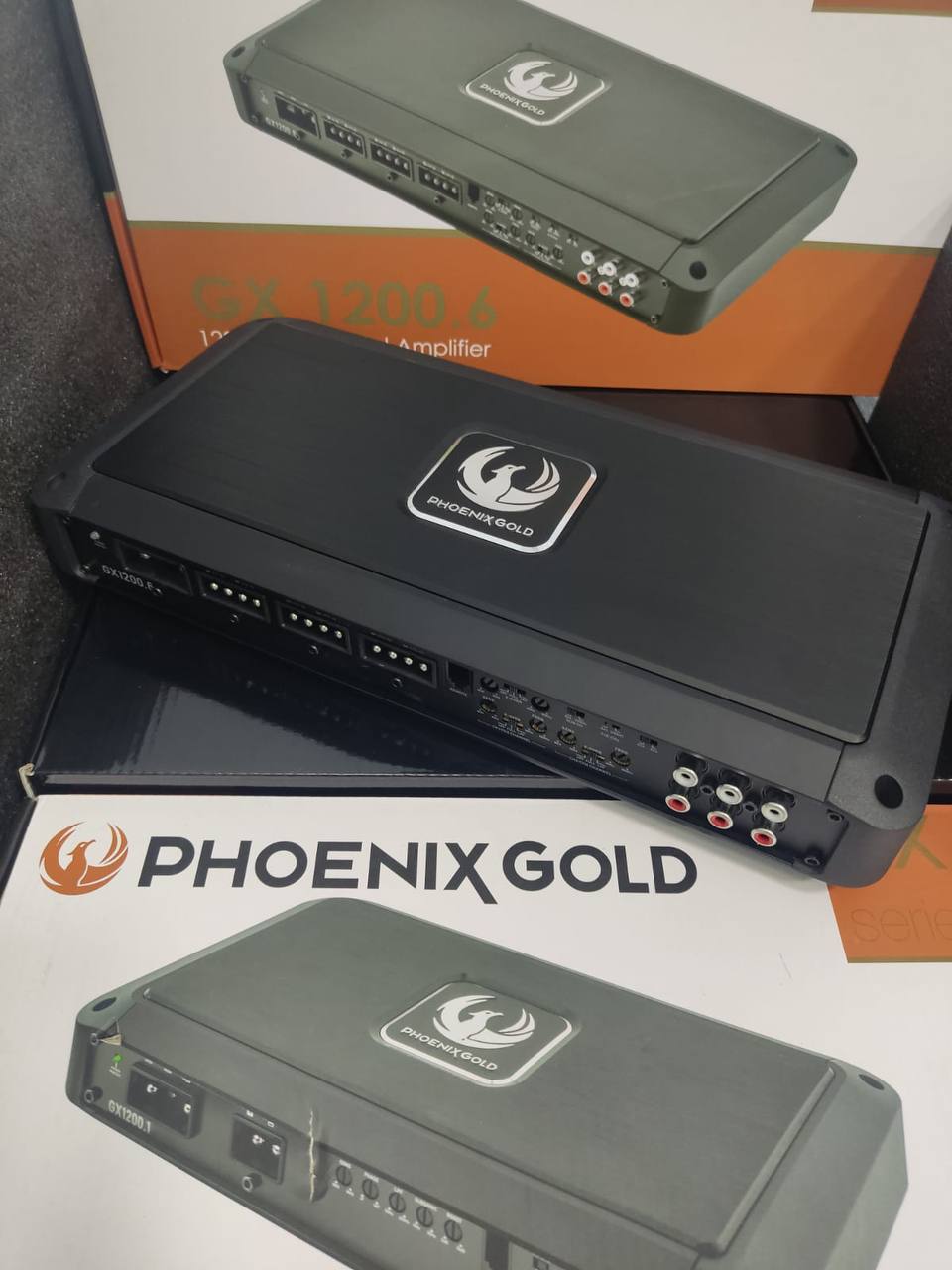

The Phoenix Gold GX1200.6 is a 6-channel, full-range Class D amplifier that covers a wide range of installation needs. The GX1200.6 is packed with the features and performance you've come to expect from the Phoenix Gold brand. This also includes our proprietary PG quick connectors that provide high current handling and reliability while allowing for a clean and quick installation. The GX1200.6's enclosure has been optimized through the use of BFD (Balanced Flow Dissipation) to keep the amplifier cool when the music is hot
