Power RMS / max. 90 / 180 Watts

Installation depth TW: 19 mm W: 73 mm

Frequency response 39 Hz - 20,000 Hz

Impedance 4 Ω

Efficiency 1 W / 1 m 90 dB

Cone material TW: Silk dome W: Carbon

Crossover 6/6 dB

Outer diameter TW: 56 mm W: 166 mm Installation diameter

TW: 45 mm W: 145 mm

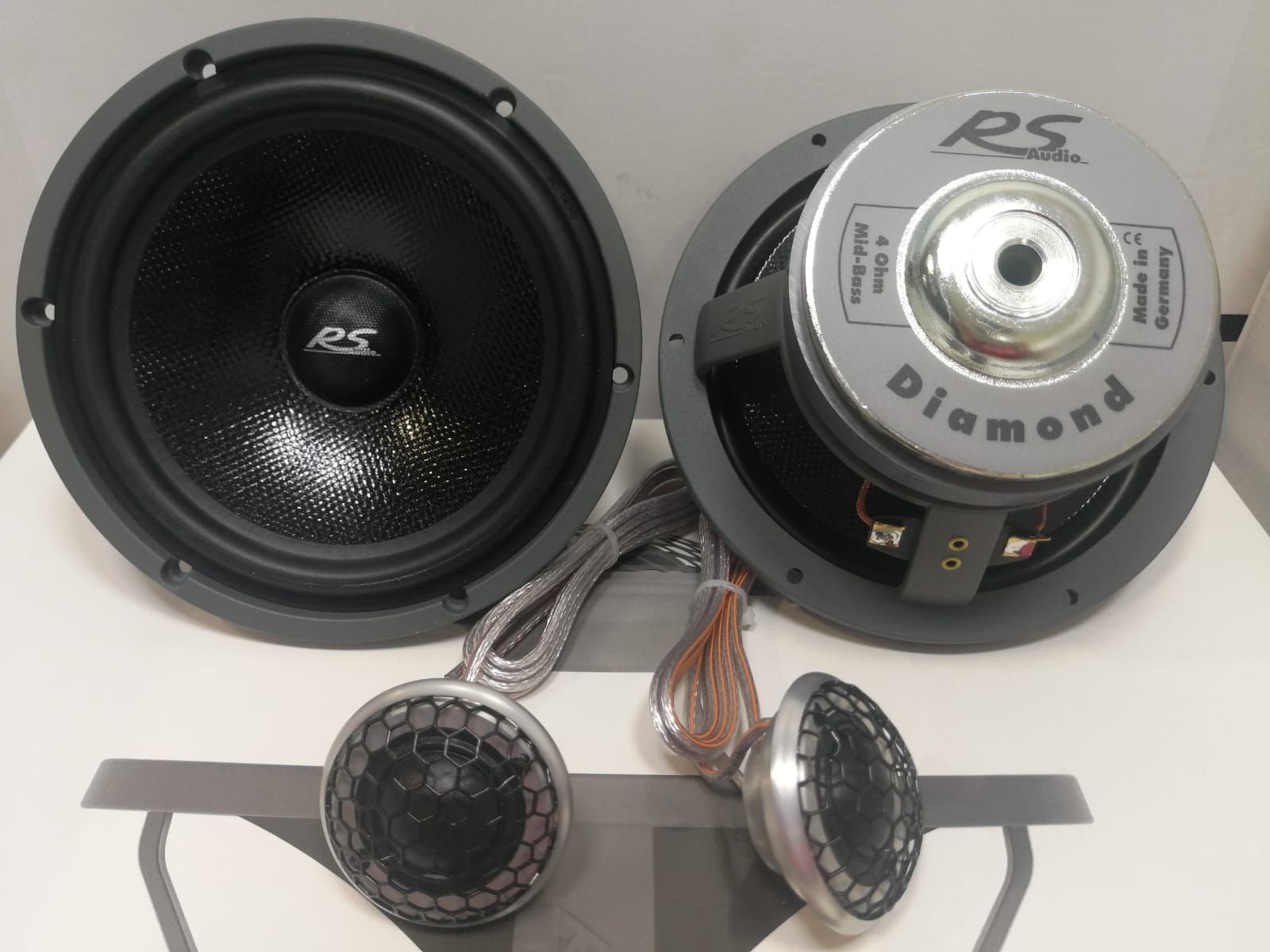

MODEL RS DIAMOND MB165 FS 40.0874 Hz

Diameter 130.0000 mm

ZMax 24.9119 Ω

RE 3.0000 Ω

RMS 0.9534 ΩM

QMS 5.3759

QES 0.7360

QTS 0.6474

CMS 0.4845 mm/N

MMS 12.7289 g

BL 4.5707 Tm

VAS 11.9194 L

dBSPL 88.3195

L1kHz 0.2879 mH

L10kHz 0.1528 mH

CAS 8.536048E-0008 m 5 /N

RAS 5411.7320 Ω

A MAS 72.2501 kg/m4

RAT 44938.7800 Ω

A SD 0.0133 Ω

LCES 10.1221 mH

CMES 609.2881

RES 21.9119 Ω

RMT 7.9173 ΩM

ZMin 3.4195 Ω

ZAVG 7.0053 Ω

MODEL RS DIAMOND TW25

FS 734.6284 Hz

Diameter 0.0000 mm

ZMax 8.8883 Ω

RE 3.4000 Ω

RMS 0.0000 ΩM

QMS 1.8616

QES 1.1533

QTS 0.7121

CMS 0.0000 mm/N

MMS 0.0000 g

BL 0.0000 Tm

VAS 0.0000 L

dBSPL 0.0000

L1kHz 0.0000

mH L10kHz 0.0323

mH CAS 0.000000E+0000 m 5 /N

RAS 0.0000 Ω A MAS 0.0000 kg/m4

RAT 0.0000 Ω A SD 0.0000 Ω

LCES 0.6387 mH

CMES 73.4852

µF RES 5.4883 Ω

RMT 0.0000 ΩM

ZMin 3.6697 Ω

ZAVG 4.3661 Ω
