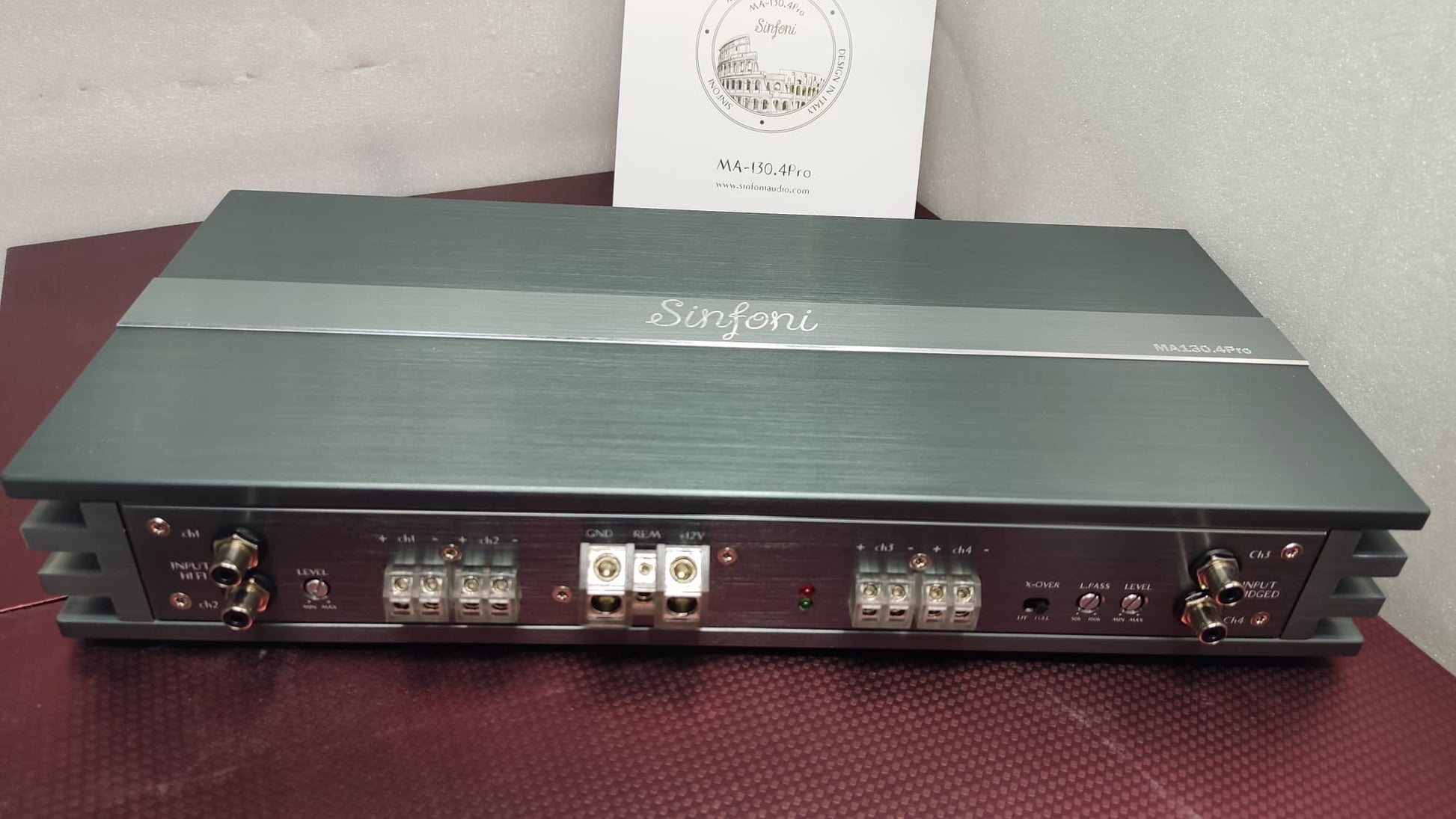

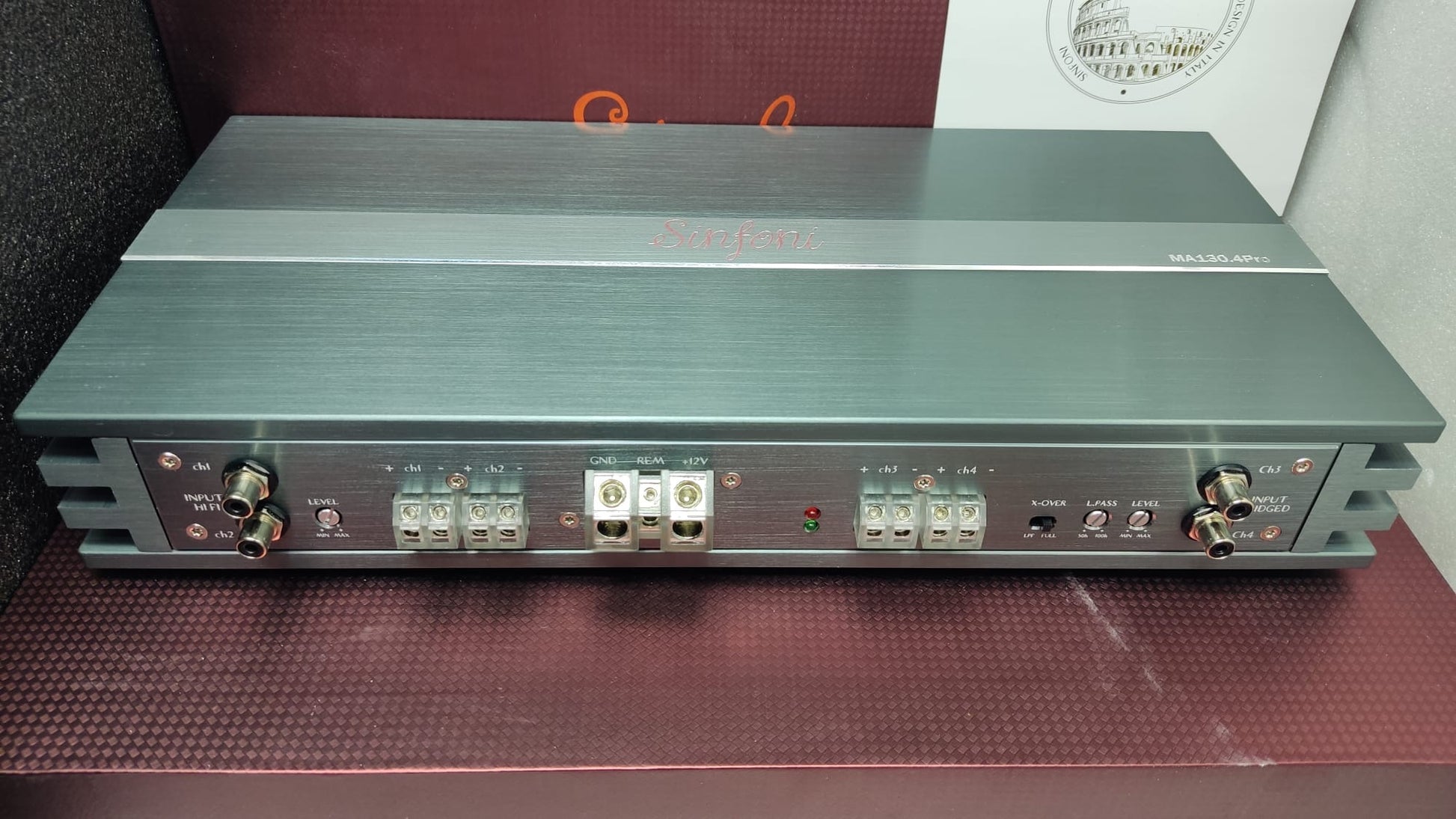

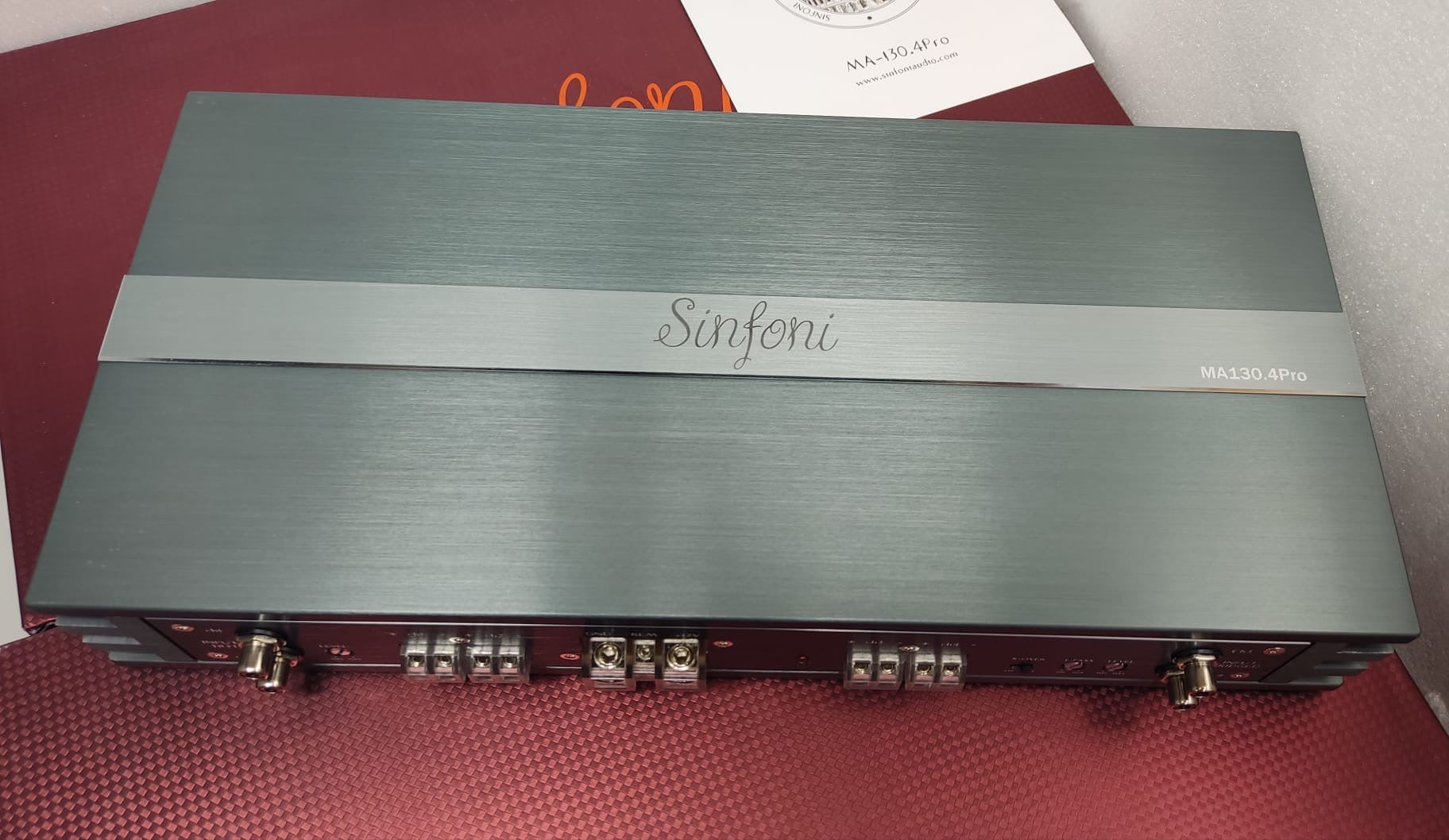

MA130.4Pro

4 Channel Class AB Amplifier

Specifications :

Power Supply : 10.5 -16 VCC

Total Harmonic Distortion : 0.05%

Standby Current : 1.2A

Input Sensitivity : 0.1 -9V

Input Impedance : 27K Ohms

Output Power :

- 4 Ohms @ 12V : 130 Watts x 4

- 2 Ohms @ 12V : 200 Watts x 4

- Bridge 4 Ohms @ 12V : 300 Watts x 2

Frequency Response : +/- 1dB From 10Hz - 30kHz

Channel 1 & 2 Filters (Full / Hi-Pass): 50Hz – 300Hz

Channel 3 & 4 Filters (Full / Lo-Pass / Hi-Pass): 50Hz – 300Hz

Signal / Noise Ratio : > 100dB

Channel Separation: > 90dB

Damping factor: > 500
