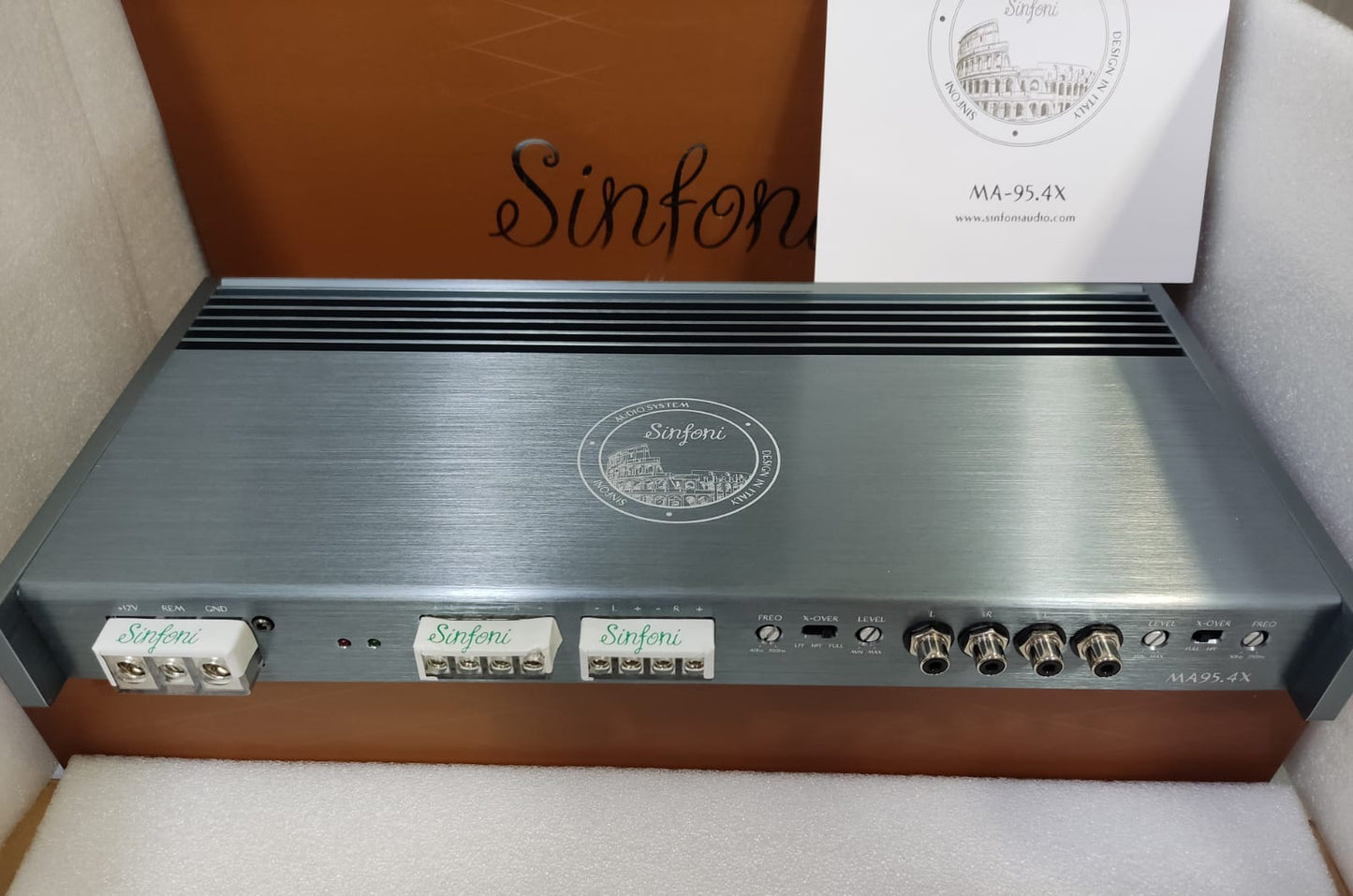

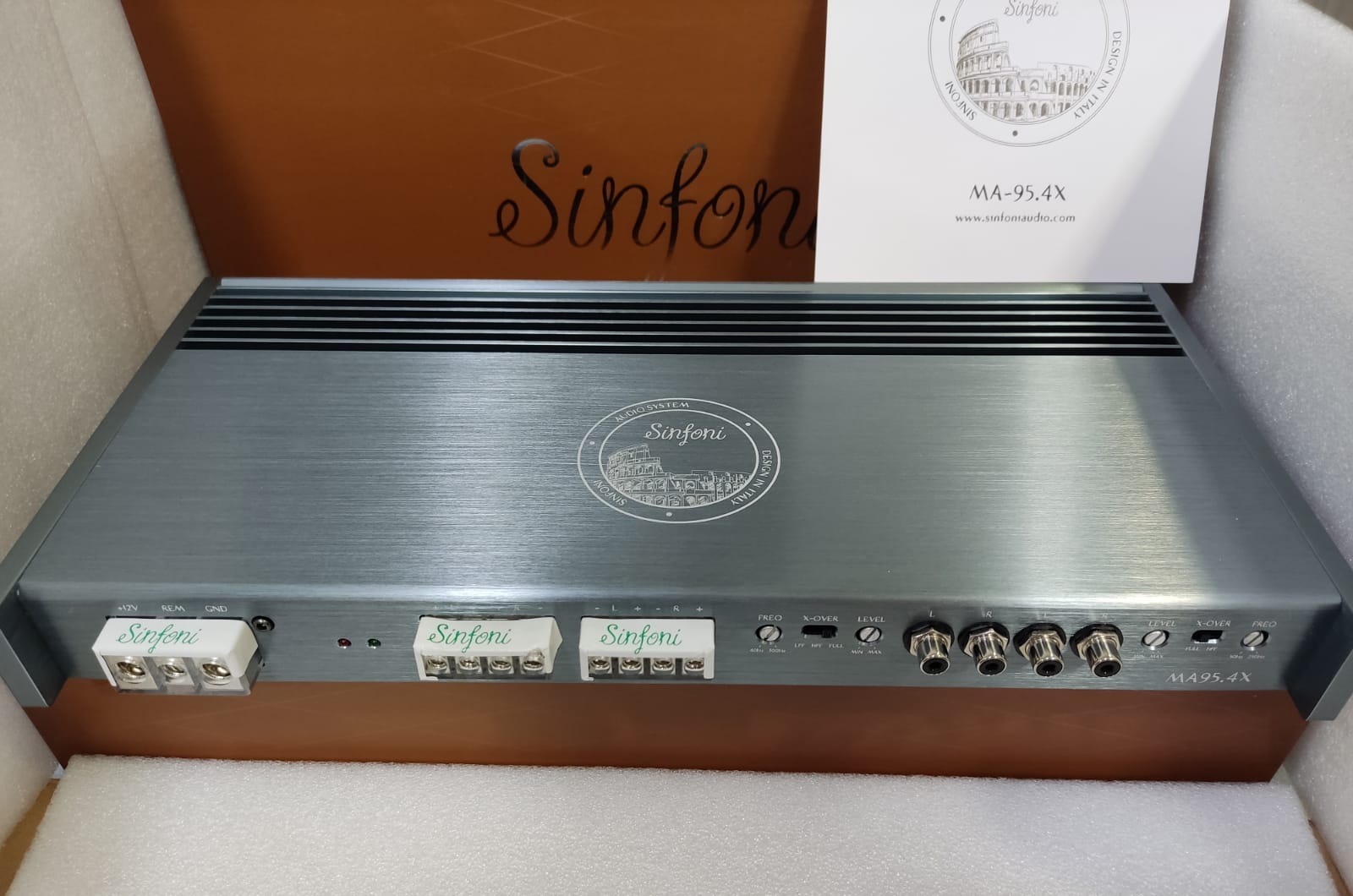

MA 95.4X

Class AB 4 Channel Amplifier

Specifications :

Power Supply : 10.5 -16 VCC

Total Harmonic Distortion : 0.05%

Standby Current : 1.2A

Input Sensitivity : 0.1 -9V

Input Impedance : 27K Ohms

Output Power :

- 4 Ohms @ 12V : 95 Watts x 4

- 2 Ohms @ 12V : 150 Watts x 4

- Bridge 4 Ohms @ 12V : 200 Watts x 2

Frequency Response : +/- 1dB From 10Hz - 30kHz

Signal / Noise Ratio : > 95dB

Channel Separation: > 90dB

Damping factor: > 500

Dimensions (WxHxD) : 420 x 187 x 40 (mm)
