RMS power (4 Ohms), W: 2 x 335
RMS power (2 Ohms), W: 2 x 650
RMS power (1 Ohm), W: 2 x 1200
RMS power (4 Ohms / bridge), W: 1 x 1300
RMS power (2 Ohm / bridge), W: 1 x 2400
Frequency range, Hz: 5 - 165000
OIG,%: 0.03
Signal to noise ratio (A-weighted, 90% RMS), dB: 108
Damping Factor:> 1000
Input impedance, ohms: 10
Input sensitivity, V: 0.2 - 5
Modes of crossover: HP / LP / BP / FLAT
High-pass filter SW4FQ: 60/80/100/120 Hz, 12/24 (for mono mode) dB / oct., Q-factor 0.7 / 1.2
Low Pass Filter SW4FQ: 60/70/80/90 Hz, 12/24 (for mono) dB / oct.
High-frequency filter with AQXM2 module: 22/25/30/33/35/38/40/45/50/55/60/65/70/75/80/85/90/95/100/110/120/130 / 150/180/200/250/300/350/400/450/500/600/700/800/900/1000/1100/1200/1300/1400/1500/1800/2000/2500/3000/3500/4000 / 4500/5000/5500/6000/6500/7000/7500/8000/8500 Hz, 12/24 (for mono mode) dB / oct., Q-factor 0.7 / 1.2
Low-pass filter with AQXM2 module: 22/25/30/33/35/38/40/45/50/55/60/65/70/75/80/85/90/95/100/110/120/130 / 150/180/200/250/300/350/400/450/500/600/700/800/900/1000/1100/1200/1300/1400/1500/1800/2000/2500/3000/3500/4000 / 4500/5000/5500/6000/6500/7000/7500/8000/8500 Hz, 12/24 (for mono mode) dB / oct.
RCA inputs and outputs
Mode switch input "MONO / ST"
Protection against the output of the supply voltage beyond the operating range, poor grounding, short circuit of the outputs and overheating
Power supply, V: 10 - 16
Fuse, A: 175
Dimensions, mm: 640 x 56 x 232

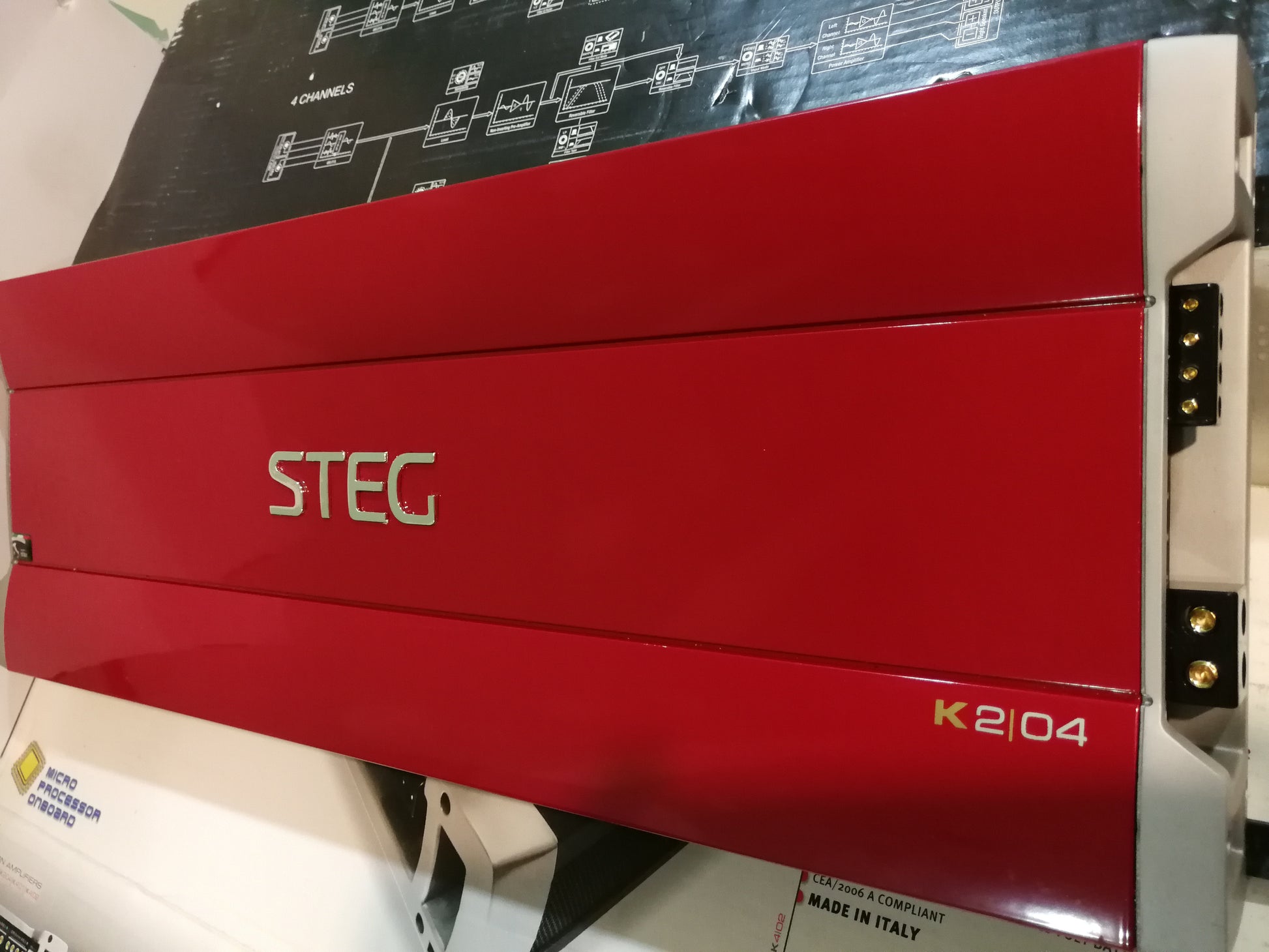

STEG K2.04
